B&R X20IF10D1-1

Communication module, etherNet/IP scanner (master)

MPN: X20IF10D1-1
Category: X20 interface module communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF10D1-1?

EtherNet/IP scanner (master)

Integrated switch for efficient wiring

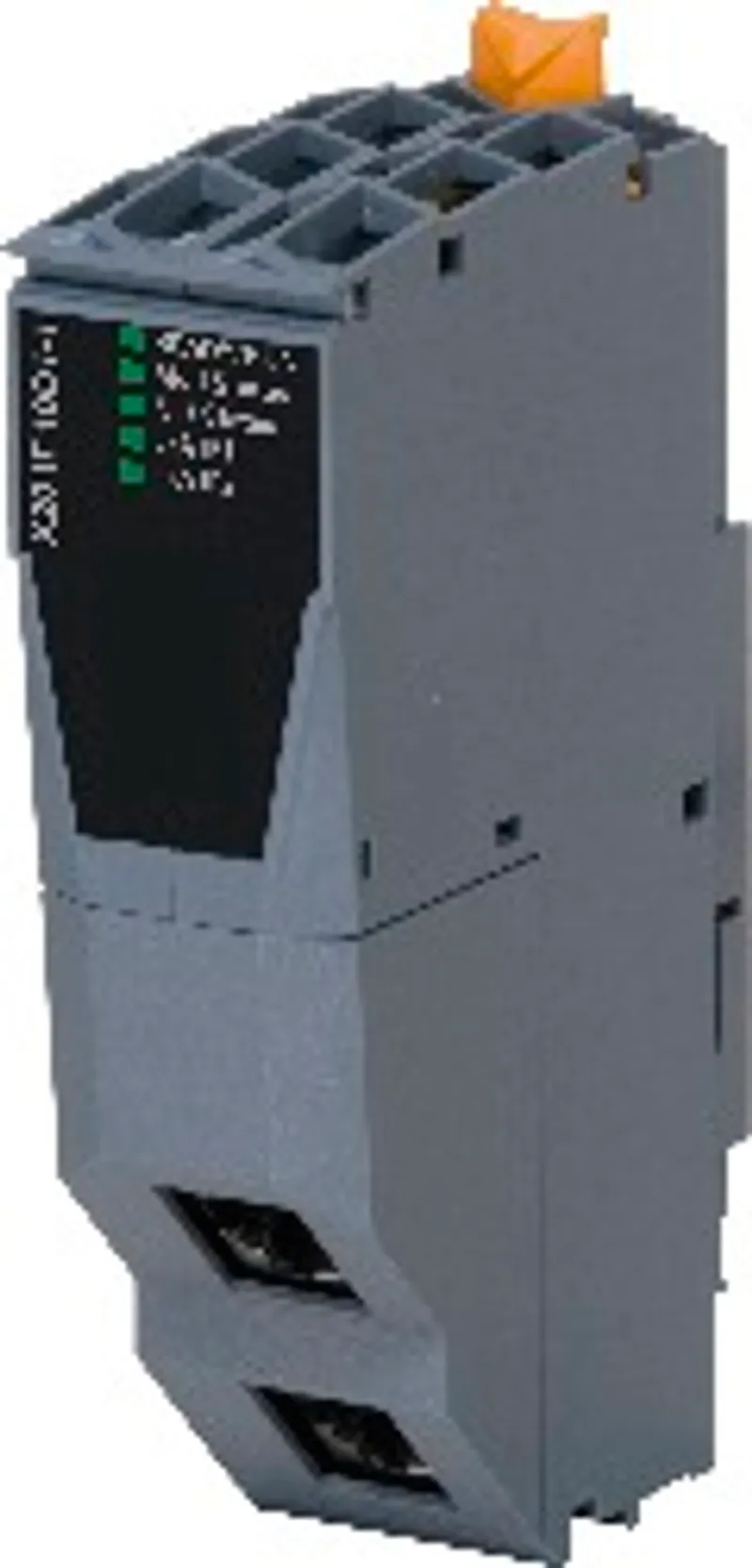

The interface module is equipped with an EtherNet/IP scanner interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.

The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.

Specifications

Short description

Communication module

EtherNet/IP scanner (master)

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Network status	Yes, using LED status indicator and software
Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xA71B
Status indicators	Module status, network status, data transfer
Power consumption	2 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	10BASE-T/100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	Yes
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Fieldbus	EtherNet/IP scanner (master)
Variant	2x shielded RJ45 (switch)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	10/100 Mbit/s
Controller	netX100
Memory	8 MB SDRAM

Electrical properties

Electrical isolation

PLC isolated from EtherNet/IP (IF1 and IF2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	In the X20 PLC and expandable bus controller X20BC1083

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File STEP/DXF X20 ModuleZIP · 1 MB · 2.3 (08/20/2020)

Certificates (16)

X20IF10D1-1: frequently asked questions
