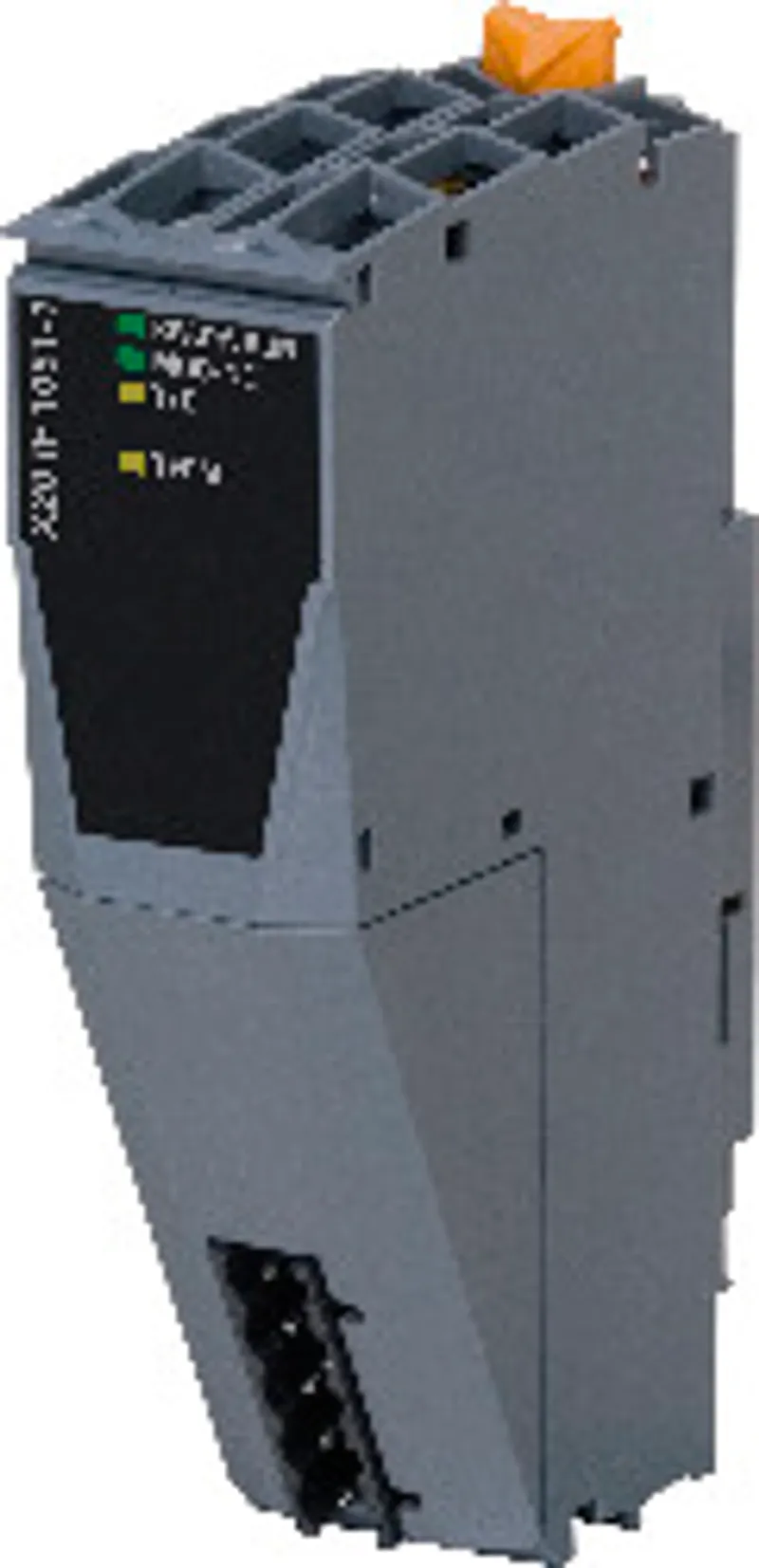

B&R X20IF1051-1

Communication module, deviceNet scanner (master)

MPN: X20IF1051-1
Category: X20 interface module communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF1051-1?

DeviceNet scanner

Integrated terminating resistor

The interface module is equipped with a DeviceNet scanner interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.

Specifications

Short description

Communication module

DeviceNet scanner (master)

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Network status	Yes, using LED status indicator and software
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xA70C
Status indicators	Module status, network status, data transfer, terminating resistor
Power consumption	1.1 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Fieldbus	DeviceNet scanner (master)
Interface IF1 – Variant	5-pin male multipoint connector
Interface IF1 – Max. distance	500 m
Interface IF1 – Transfer rate	Max. 500 kbit/s
Interface IF1 – Terminating resistor	Integrated in module
Interface IF1 – Controller	netX100
Interface IF1 – Memory	8 MB SDRAM

Electrical properties

Electrical isolation

PLC isolated from DeviceNet (IF1)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB2105 separately.
Slot	In the X20 PLC and expandable bus controller X20BC1083

Accessories

Required accessories (order separately)

0TB2105.9110	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
0TB2105.9010	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
