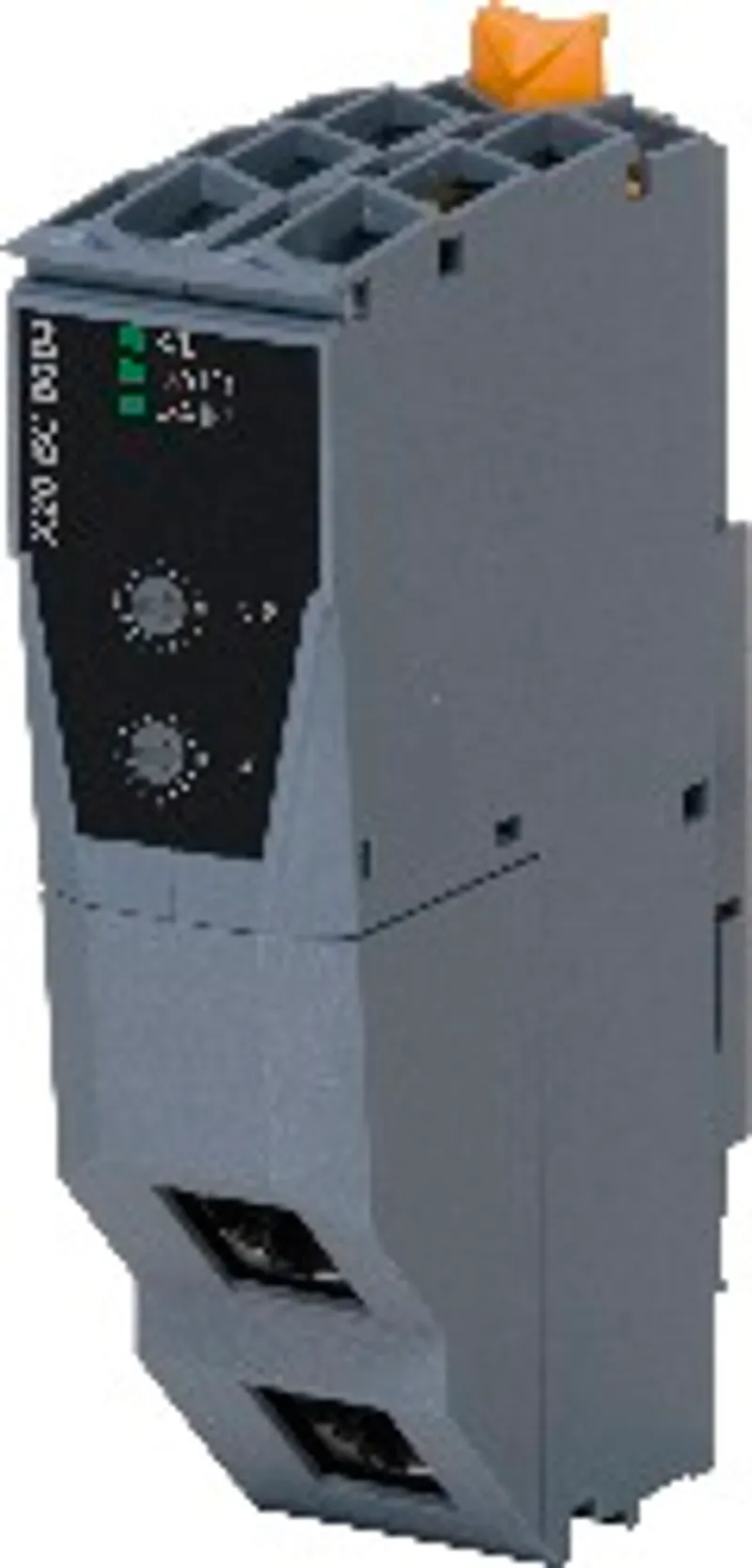

B&R X20BC8084 – Bus controller, POWERLINK (V1/V2) controlled node with…
MPN: X20BC8084 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Expandable bus controllers |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20BC8084 be shipped?
X20BC8084 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20BC8084 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20BC8084 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BC8084, subject to availability and destination.
• POWERLINK
• I/O configuration and firmware update via the fieldbus
• Integrated compact link selector function
• 2 active hub expansion modules can be connected to the bus controller
• Redundant supply possible
The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.
POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed:: www.ethernet-powerlink.org .
Systems with redundant cabling can be implemented easily using POWERLINK. Unlike ring redundancy, cable redundancy does not require cable looping, which can sometimes be problematic. This allows the creation of all types of tree structures. When using a device with the link selector function, data is always transferred via the highest quality network lines. The link selector function is integrated in the bus controller.
Accessories
Required accessories (order separately)
| X20PS9402 | System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Low-cost supply module for small X20 system; Feed and bus controller / X2X… |
| X20PS9400 | System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc… |
| X20BB80 | System modules for bus controllers — Bus base The following modules are used on the bus module: Base module (BC, HB, etc.); Supply module The left and right end cover plates ar… |
| X20BB82 | System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module: Base module (BC, HB, e… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (2)
| X20HB2886 | System modules for X20 redundancy systems — Active hub expansion module; 2x 100 BASE-FX hub for redundant wiring; Hot-swap-capable The X20BC8084 POWERLINK bus controller and the X20HB… |
| X20HB2885 | System modules for X20 redundancy systems — Active hub expansion module; 2x Fast Ethernet hub for redundant wiring; Hot-swap-capable The X20BC8084 POWERLINK bus controller and the X20… |
Specifications
Short description
| Bus controller | POWERLINK (V1/V2) controlled node with compact link selector |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Bus function | Yes, using LED status indicator and software |
| Support – Dynamic node allocation (DNA) | Yes |
| Power consumption – Bus | 2 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x2674 |
| Status indicators | Module status, bus function |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – Fieldbus | 200 μs |
| Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – X2X Link | 200 μs |
| Fieldbus | POWERLINK (V1/V2) controlled node |
| Type | Type 2 " data-placement="top" data-html="true" data-container="body" data-content="For additional information, see section "Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> |
| Execution | 2x shielded RJ45 |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
| Synchronization between bus systems possible | Yes |
Electrical properties
| Electrical isolation | POWERLINK isolated from bus and I/O |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch " data-placement="top" data-html="true" data-container="body" data-content="Pitch is based on the width of bus base X20BB80 or X20BB82. In addition, 1 power supply module X20PS9400 or X20PS9402 is always required for the bus controller. To save wiring for external hubs, the X20BC8084 can be expanded with 2 active hub modules, the X20HB2885 or X20HB2886."> – X20BB80 | 37.5 +0.2 mm |
| Pitch " data-placement="top" data-html="true" data-container="body" data-content="Pitch is based on the width of bus base X20BB80 or X20BB82. In addition, 1 power supply module X20PS9400 or X20PS9402 is always required for the bus controller. To save wiring for external hubs, the X20BC8084 can be expanded with 2 active hub modules, the X20HB2885 or X20HB2886."> – X20BB82 | 87.5 +0.2 mm |
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9400 or X20PS9402 separately. ; Order 1x bus base X20BB80 or X20BB82 separately. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)BC8084 | PDF · 3 MB · 2.51 (08/05/2025) - EN |
| POWERLINK Bus Controller User's Manual | PDF · 3 MB · 2.67 (05/07/2026) - EN |
| Redundancy for control systems | PDF · 9 MB · 1.31 (07/03/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File STEP/DXF X20BC and X20IF Module | ZIP · 1 MB · 2.3 (09/19/2019) |
Certificates (16)
