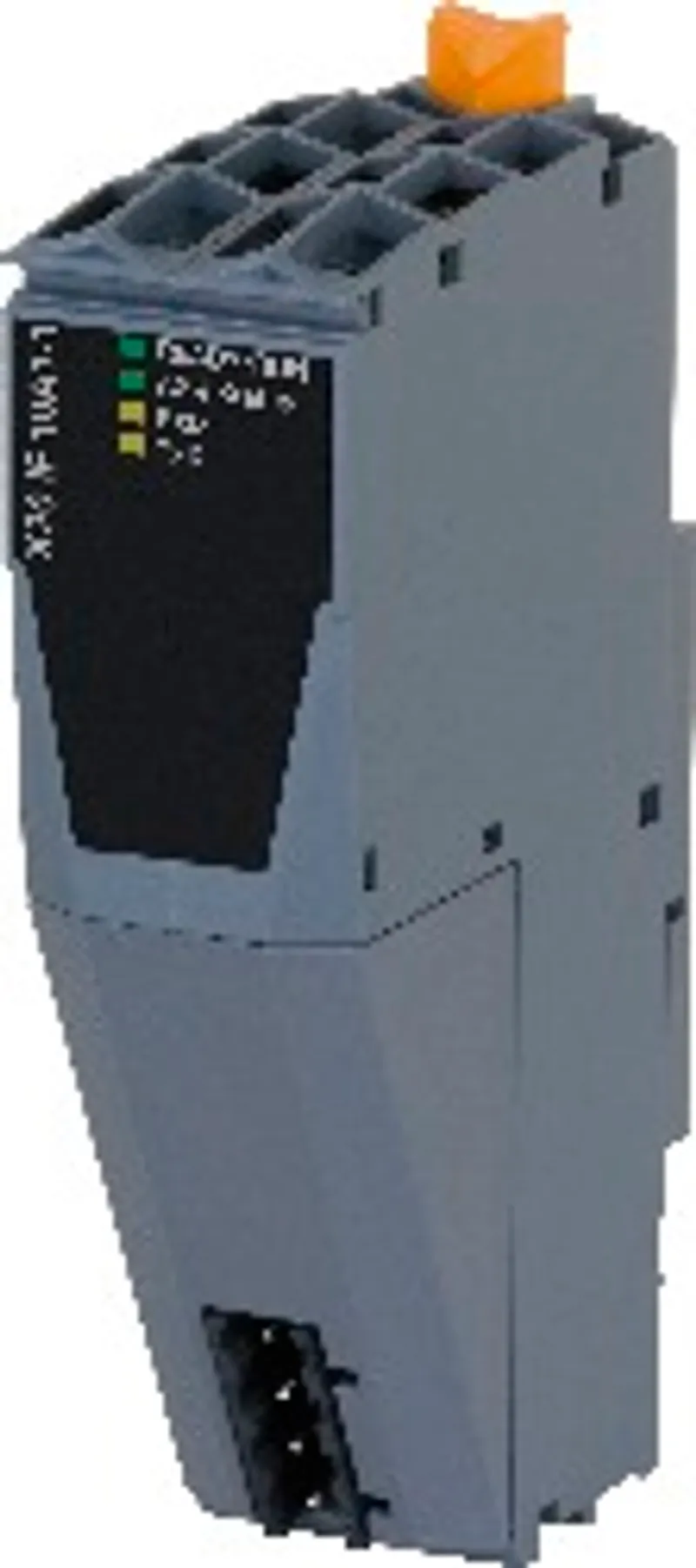

B&R X20IF10A1-1 – Communication module, ASi interface master
MPN: X20IF10A1-1 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | X20 interface module communication |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20IF10A1-1 be shipped?
X20IF10A1-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20IF10A1-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20IF10A1-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20IF10A1-1, subject to availability and destination.
• ASi interface master
• Electrically isolated
• 4-pin bus connector
The interface module is equipped with an ASi master interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.
The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.
Accessories
Required accessories (order separately)
| 0TB704.91 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
| 0TB704.9 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
Specifications
Short description
| Communication module | ASi interface master |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Network status | Yes, using LED status indicator and software |
| Diagnostics – Data transfer | Yes, using LED status indicator |
| Power consumption – Bus | 1.1 W |
| Power consumption – Fieldbus | 0.85 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0xA718 |
| Status indicators | Module status, network status, data transfer |
| Fieldbus current consumption | Max. 27 mA |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Interface IF1 – Standard | 100 m |
| Interface IF1 – With additional components | 500 m |
| Interface IF1 – Fieldbus | ASi interface master |
| Interface IF1 – Type | ASi master profile M4 |
| Interface IF1 – Variant | 4-pin male multipoint connector |
| Interface IF1 – Power supply | ASi power supply " data-placement="top" data-html="true" data-container="body" data-content="An ASi-specified power supply unit is required for the power supply of the AS interface."> |
| Interface IF1 – Voltage range | 24 to 32 V |
| Interface IF1 – Controller | netX100 |
| Interface IF1 – Max. number of slaves | 62 |
| Interface IF1 – Max. cycle time | 5 ms |
| Interface IF1 – Response time | Typ. 3 ms |
Electrical properties
| Electrical isolation | PLC isolated from AS (IF1) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block TB704 separately. |
| Slot | In the X20 PLC and expandable bus controller X20BC1083 |
