Schneider Electric NSYMB54

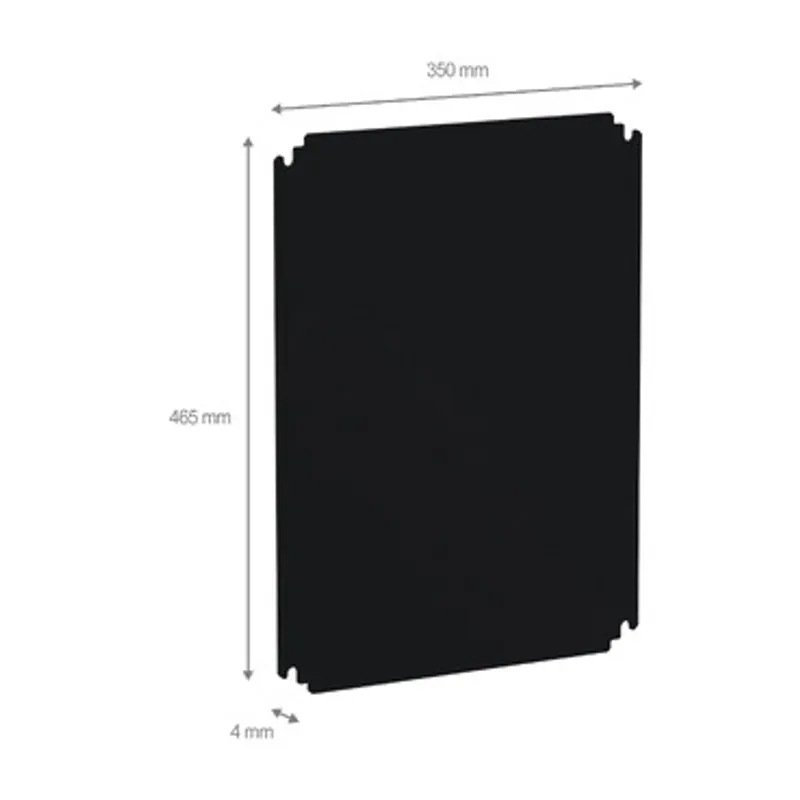

Insulating mounting plate for enclosure H500xW400mm made of bakelite
- MPN
- NSYMB54
- EAN
- 3606480182747
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMB54?
Schneider Electric Insulating mounting plate for enclosure H500xW400mm made of bakelite, manufacturer part number NSYMB54. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 500 mm W: 400 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Bakelite |
| Colour | Black (RAL 9005) |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 50 kg |
| Height | 465 mm |
| Width | 350 mm |
| thickness | 4 mm |
| Net weight | 9 kg |
Packaging
| Package 1 | 1 PCE, 47.000 cm × 35.500 cm × 0.500 cm (L × W × H), 970.000 g |
| Package 2 | 30 P12, 120.000 cm × 80.000 cm × 43.000 cm (L × W × H), 43.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMB54: frequently asked questions
When can NSYMB54 be shipped?
NSYMB54 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMB54 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMB54 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMB54, subject to availability and destination.
