Schneider Electric NSYMB86

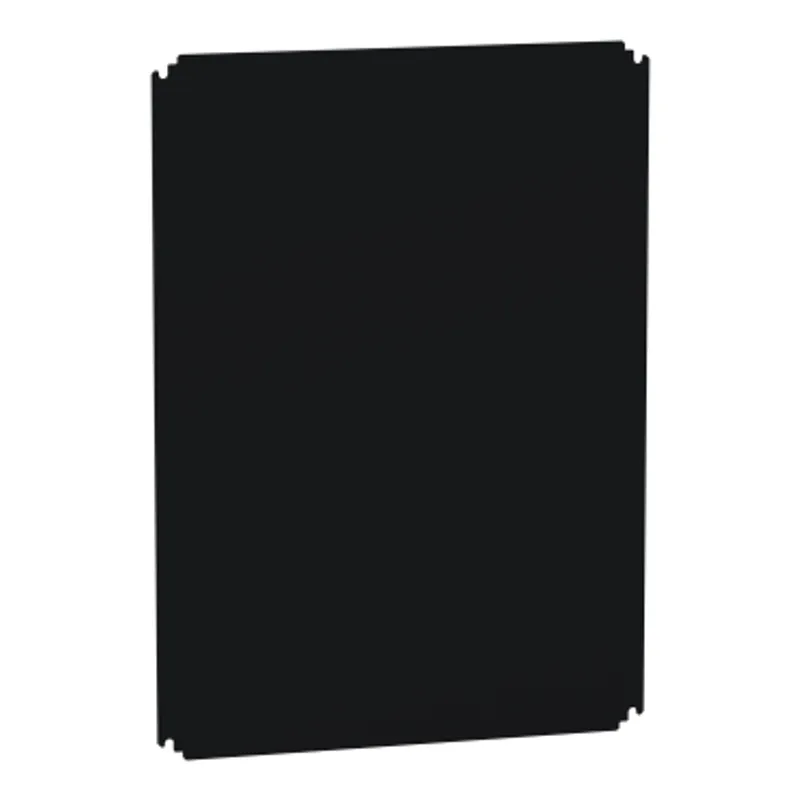

Insulating mounting plate for enclosure H800xW600mm made of bakelite
- MPN
- NSYMB86
- EAN
- 3606480182785
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMB86?
Schneider Electric Insulating mounting plate for enclosure H800xW600mm made of bakelite, manufacturer part number NSYMB86. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 800 mm W: 600 mm, - H: 800 mm W: 1200 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Bakelite |
| Colour | Black (RAL 9005) |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 120 kg |

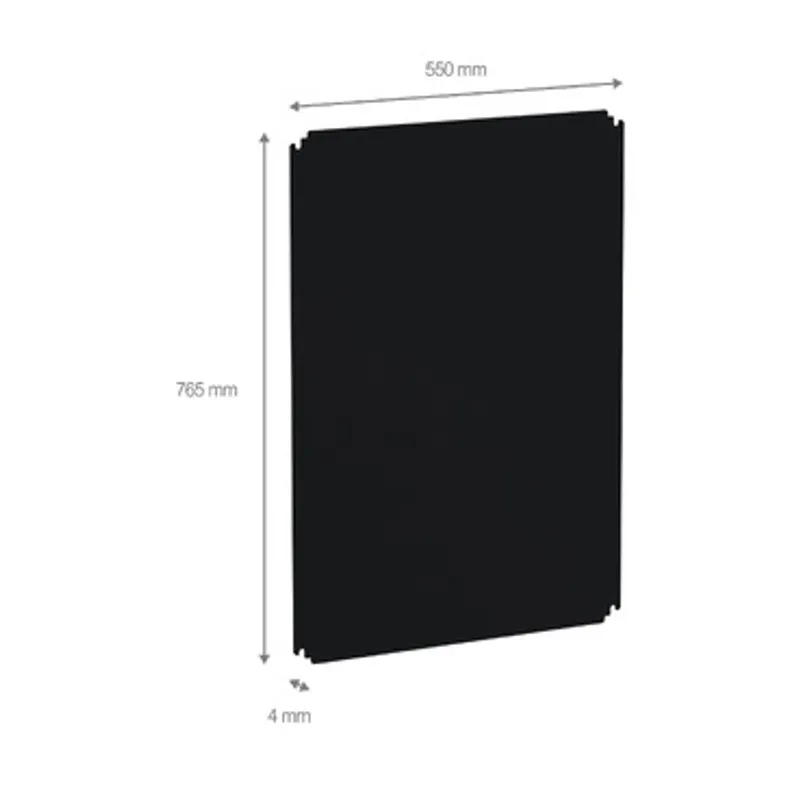

| Height | 765 mm |
| Width | 550 mm |
| thickness | 4 mm |
| Net weight | 23 kg |
| Variant particularity | With enclosures H800 x W1200 |
Packaging
| Package 1 | 1 PCE, 76.500 cm × 55.000 cm × 0.500 cm (L × W × H), 2.442 kg |
| Package 2 | 100 PAM, 120.000 cm × 100.000 cm × 42.000 cm (L × W × H), 257.000 kg |
