Schneider Electric NSYMF106

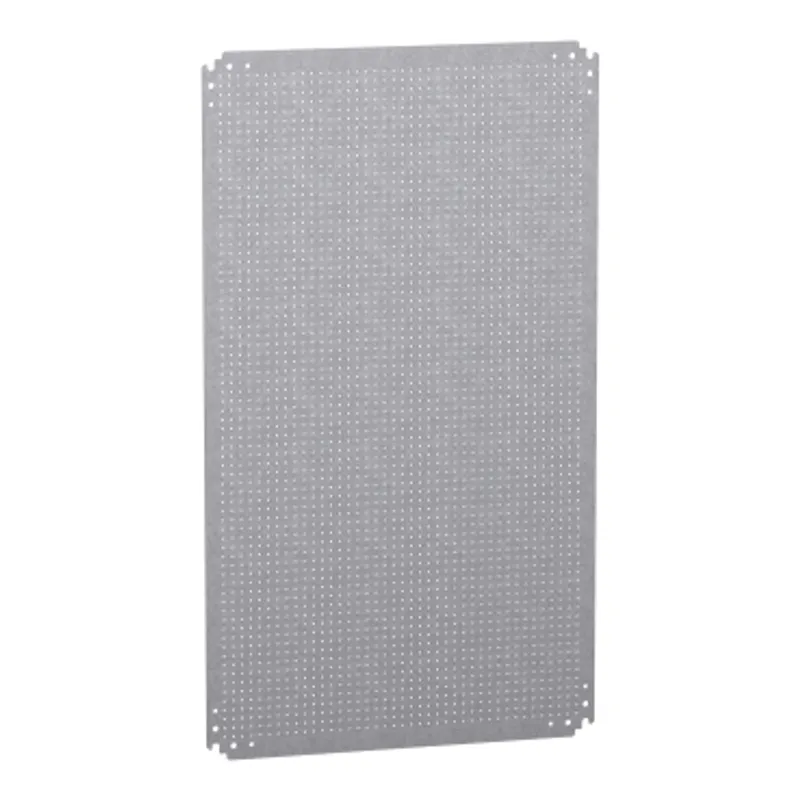

Microperforated mounting plate H1000xW600 w/holes diam 3,6mm on 12,5mm pitch
- MPN
- NSYMF106
- EAN
- 3606480182990
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMF106?
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is600 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1000 mm W: 600 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 150 kg |
| Height | 965 mm |
| Width | 550 mm |
| Depth | 125 mm |
| thickness | 2.5 mm |
| Net weight | 9.78 kg |
Packaging
| Package 1 | 1 PCE, 96.500 cm × 55.000 cm × 0.300 cm (L × W × H), 10.000 kg |
| Package 2 | 40 PAM, 120.000 cm × 100.000 cm × 21.000 cm (L × W × H), 411.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMF106: frequently asked questions
When can NSYMF106 be shipped?
NSYMF106 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMF106 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMF106 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMF106, subject to availability and destination.
