Retroreflective Sensors Parts
Compare Retroreflective Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Threshold detection range | Ambient light limit | MTTFd | Mass |
|---|---|---|---|---|---|
| ML100-54-7346/59/103/115a/154 | 296035 | 4.5 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 20 g |

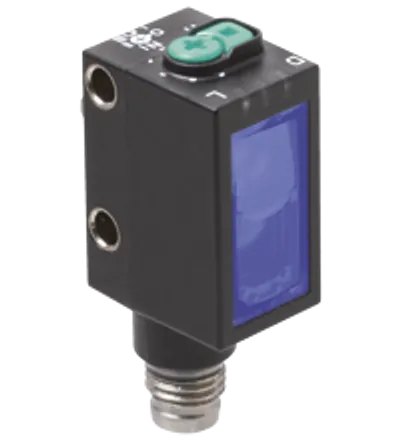

| OBG5000-R102-2EP1-IO-V31 | 267075-100569 | 6 m | EN 60947-5-2 | 600 a | approx. 10 g |
| ML100-54-F/25/103/115a/154 | 70105368 | 3 m | EN 60947-5-2 | 860 a | approx. 20 g |

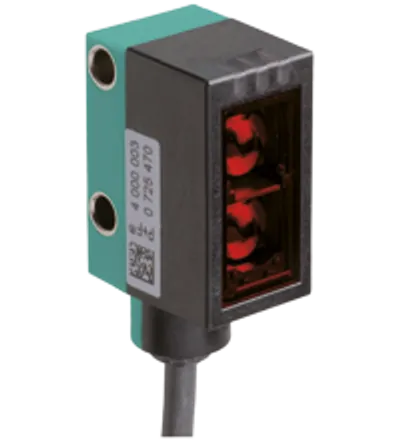

| OBR7500-R101-P1-Y0429 | 267075-100429 | 10 m | EN 60947-5-2 | 724 a | approx. 15 g |

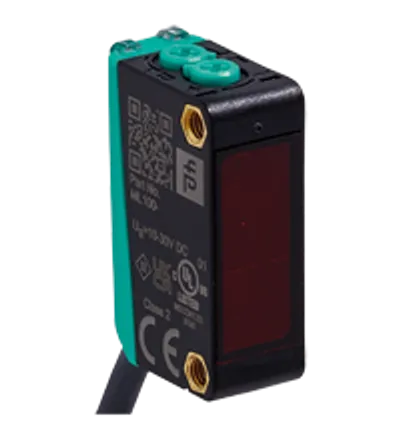

| ML100-54-GN/103/115 | 70202612 | 2.2 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 50 g |

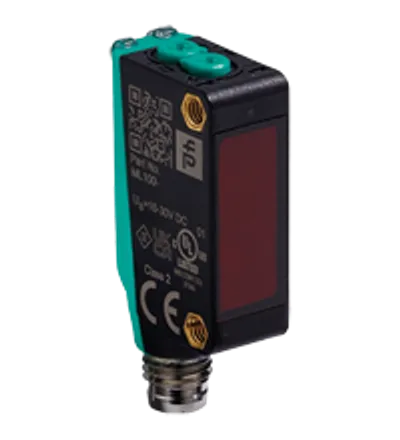

| ML100-54-GN/95/103 | 70202614 | 2.2 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 10 g |
| ML100-54-GN/95/102 | 70202613 | 2.2 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 10 g |
| ML100-54-GN/102/115 | 70202598 | 2.2 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 50 g |

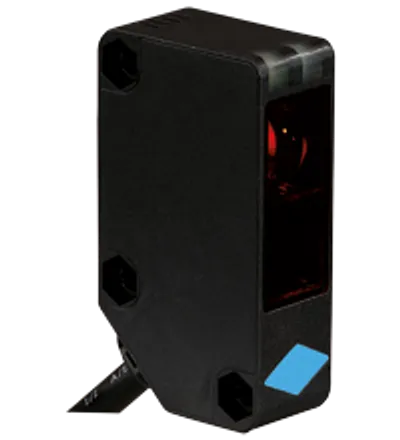

| RLK31-6/25/31/115 | 183066 | 16.5 m | 50000 Lux | 790 a | 154 g |

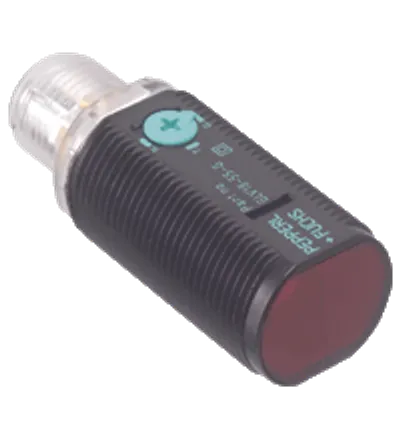

| GLV18-55-G/73/120 | 214916 | 6.5 m | 30000 Lux | 1260 a | approx. 10 g |

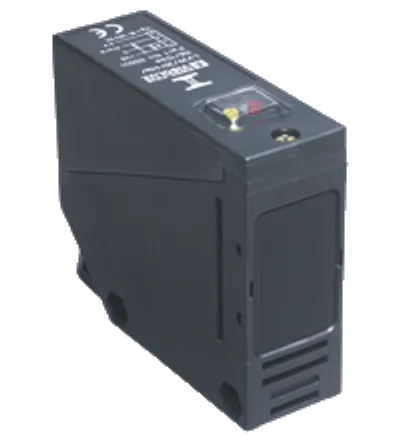

| RL39-54/30/40a/116/126a | 088818 | 6 m | IEC / EN 60947-5-2 , 10000 Lux | 800 a | approx. 100 g |

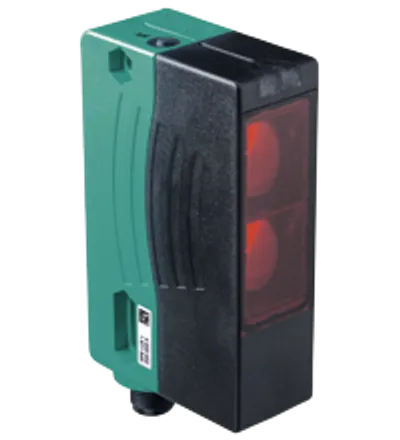

| OBR50M-R300-2PP-V1 | 254271 | — | 50000 Lux | 100 a | 90 g |

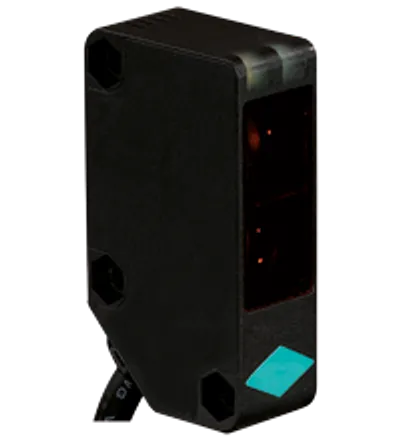

| RLK31-54/31/115 | 183064 | 12 m | 50000 Lux | 790 a | 154 g |

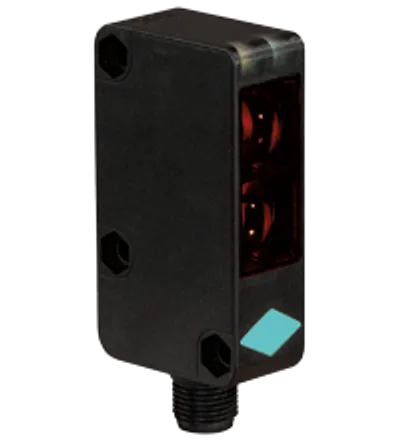

| RL31-54/25/73c/136 | 183810 | 12 m | 50000 Lux ; according to EN 60947-5-2 | 920 a | 24 g |
| ML100-55/95/103 | 210533 | 7 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 10 g |

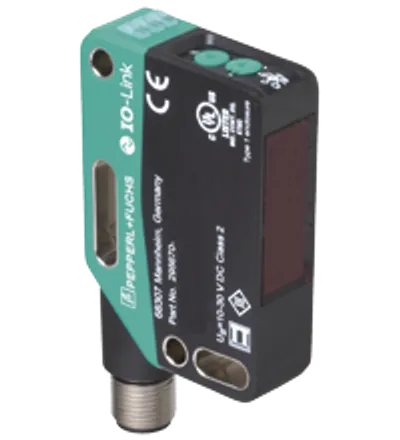

| OBG8000-R201-2EP-IO-V1 | 295670-100191 | 9 m | EN 60947-5-2 : 18000 Lux | 600 a | approx. 47 g |

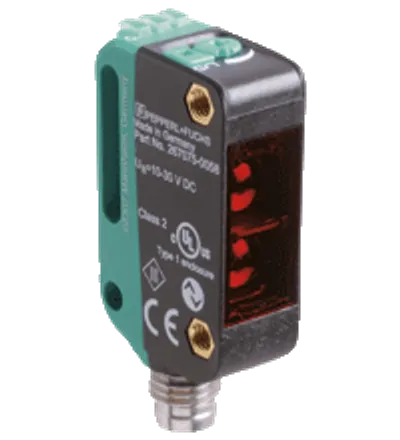

| OBR12M-R100-2EP-IO-V31-L | 267075-0121 | 15 m | EN 60947-5-2 | 672 a | approx. 10 g |
| OBR7500-R100-2EP-IO-V31 | 267075-0119 | 10 m | EN 60947-5-2 | 724 a | approx. 10 g |

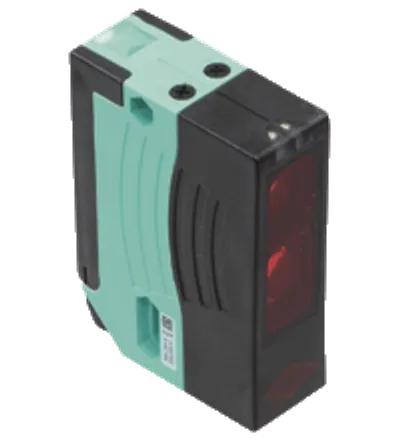

| RLK28-55-Z/31/116 | 134130 | 21 m | 80000 Lux | 600 a | 112 g |

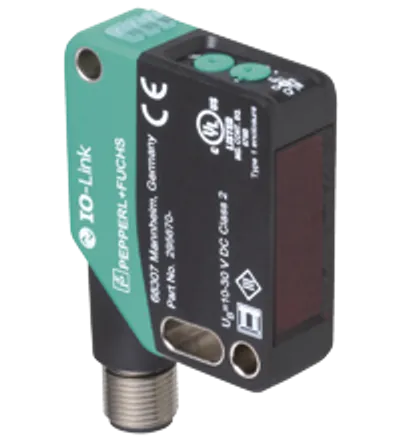

| OBG8000-R200-2EP1-IO-V1 | 295670-100381 | 9 m | EN 60947-5-2 : 18000 Lux | 600 a | approx. 37 g |
| ML100-55/103/115a-3M | 70189379 | 7 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 40 g |

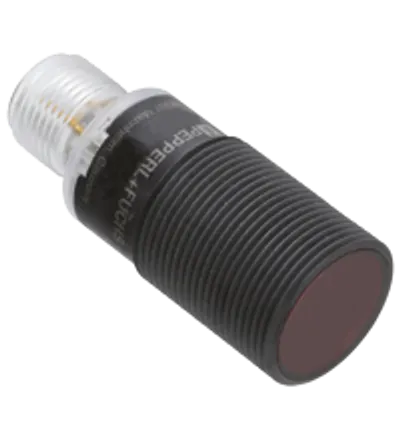

| OBR5500-18GK40-E3-V1 | 70113328-100166 | 7.8 m | EN 60947-5-2 40000 Lux | 1552 a | approx. 8 g |
| OBR5500-18GK40-E1-V1 | 70113328-100165 | 7.8 m | EN 60947-5-2 40000 Lux | 1552 a | approx. 8 g |

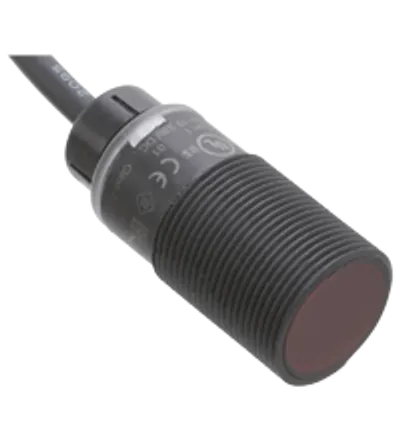

| OBR5500-18GK40-E1 | 70113328-100164 | 7.8 m | EN 60947-5-2 40000 Lux | 1552 a | approx. 54 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Diagnostic Coverage (DC) | 0 % |
| Product standard | EN 60947-5-2 |
