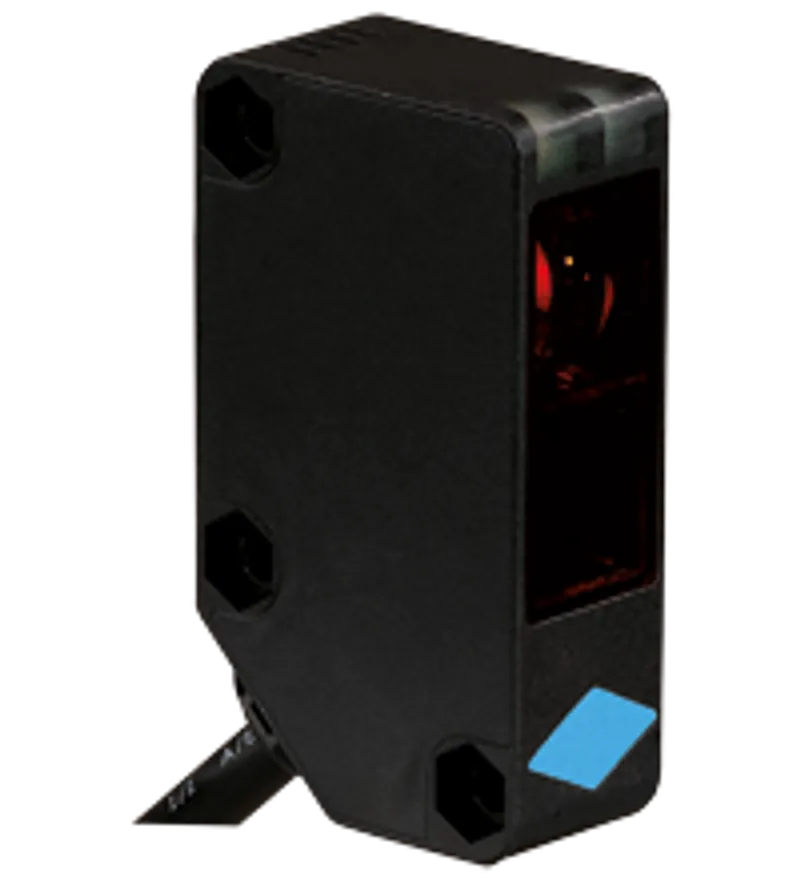

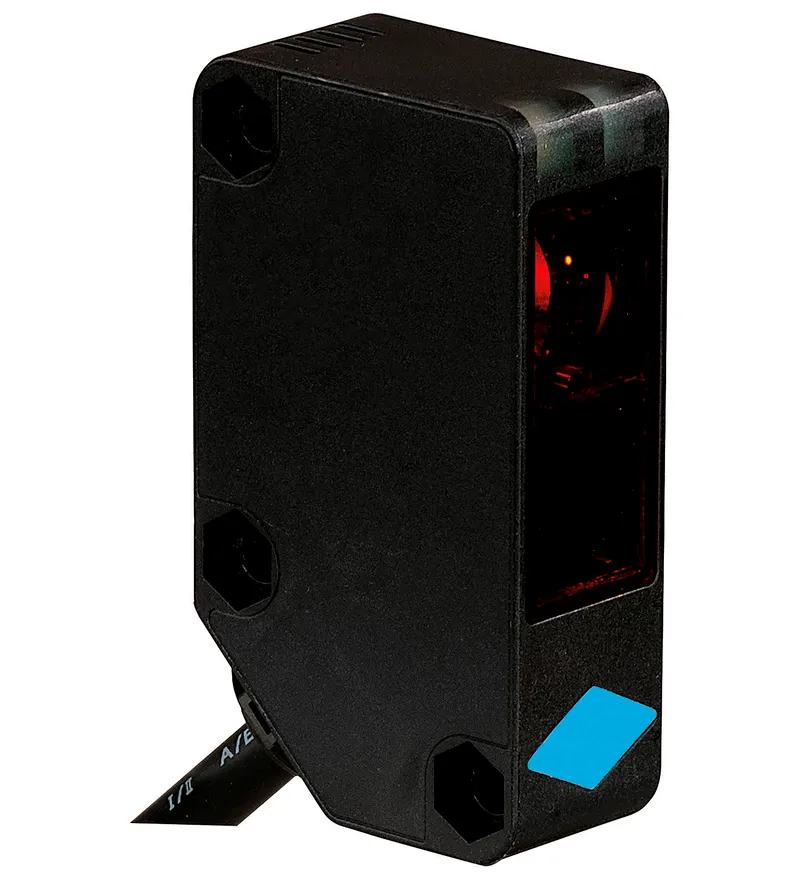

Pepperl Fuchs RLK31-6/25/31/115
Retroreflective sensor
- MPN
- RLK31-6/25/31/115
- Category
- Retroreflective Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs RLK31-6/25/31/115?
Cost-optimized series for standard tasks
Large construction with small housing
Version for universal voltages
Relay output
Retroreflective sensor without polarization filter, plastic housing, 14 m detection range, red light, light on, AC/DC version, relay contact output, no control elements, fixed cable, Cost-optimized series for standard tasks, Large construction with small housing, Version for universal voltages, Relay output
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 183066 |
| Effective detection range | 14 m |
| Reflector distance | 200 ... 14000 mm |
| Threshold detection range | 16.5 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light , 630 nm |
| Polarization filter | no |
| Diameter of the light spot | approx. 240 mm at a distance of 8 m |
| Opening angle | 3 ° |
| Ambient light limit | 50000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 790 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: power on |
| Function indicator | LED yellow:1. LED lit constantly: signal > 2 x switching point (operating reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point |
Electrical specifications
| Operating voltage | 24 ... 240 V AC 12 ... 240 V DC UB |
| No-load supply current | ≤ 40 mA I0 |
| Power consumption | ≤ 2 VA P0 |
Output
| Switching type | light-on |
| Signal output | Relay, 1 alternator |
| Switching voltage | max. 240 V AC |
| Switching current | max. 3 A |
| Switching power | DC: max. 150 W AC: max. 750 VA |
| Switching frequency | 20 Hz f |
| Response time | ≤ 25 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| Protection class | II , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material: Housing | Polycarbonate |
| Material: Optical face | PMMA |
| Mass | 154 g |
| Dimensions: Height | 62 mm |
| Dimensions: Width | 18 mm |
| Dimensions: Depth | 35 mm |
