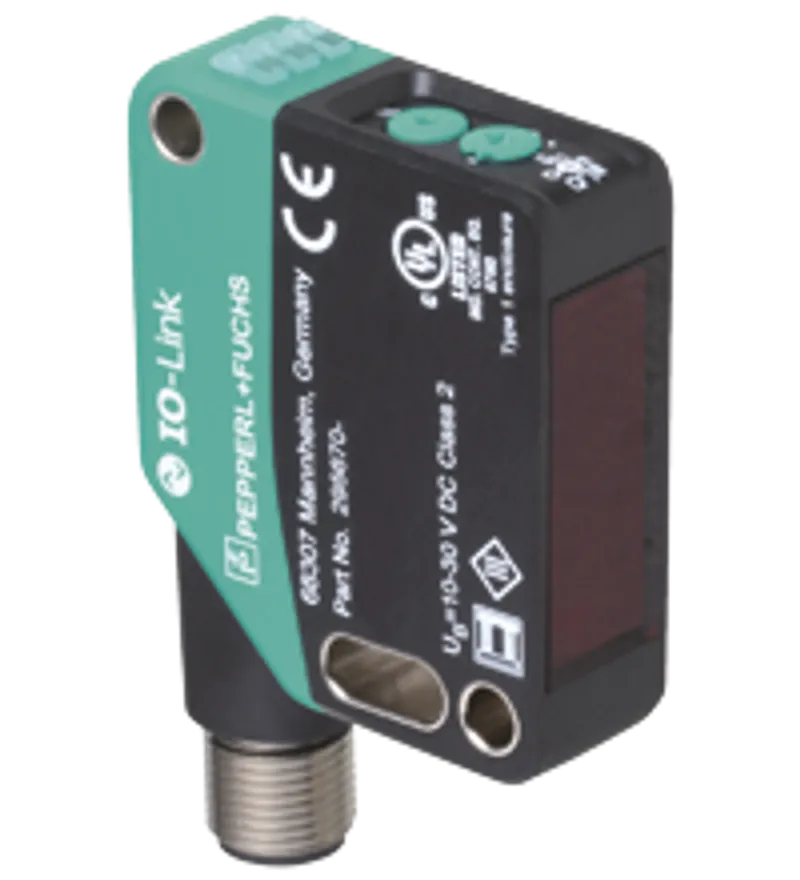

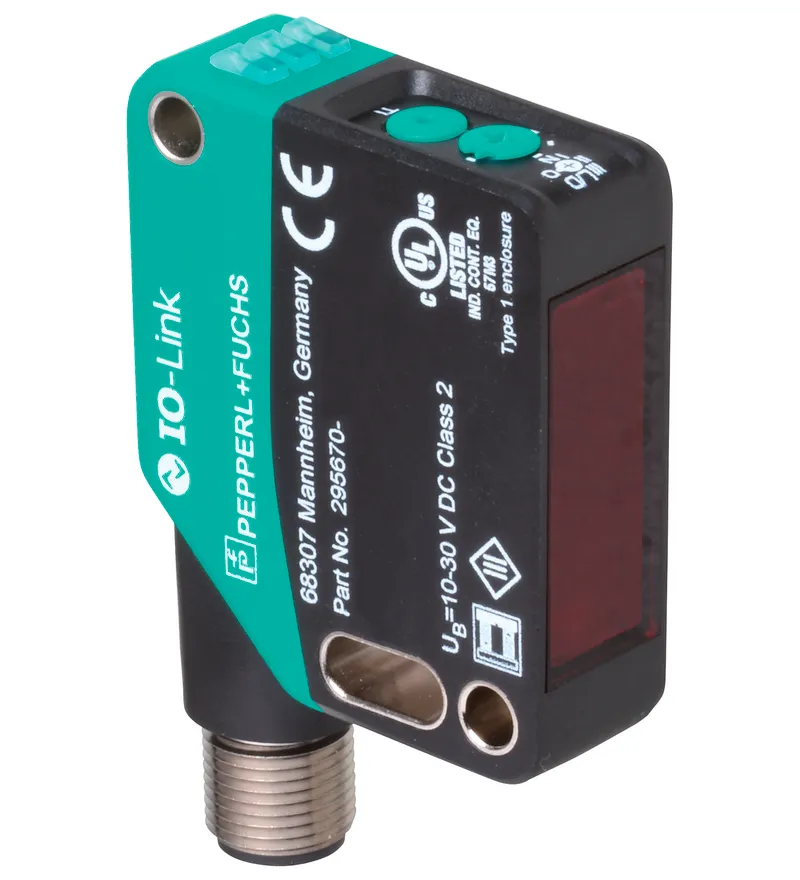

Pepperl Fuchs OBG8000-R200-2EP1-IO-V1
Retroreflective sensor (glass)
- MPN
- OBG8000-R200-2EP1-IO-V1
- Category
- Retroreflective Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs OBG8000-R200-2EP1-IO-V1?
Medium design with versatile mounting options
Detects transparent objects, i.e., clear glass, PET and transparent films
Two machines in one: clear object detection or reflection operating mode with long range
High degree of protection IP69K
IO-Link interface for service and process data
Medium design with versatile mounting options, Detects transparent objects, i.e., clear glass, PET and transparent films, Two machines in one: clear object detection or reflection operating mode with long range, High degree of protection IP69K, IO-Link interface for service and process data
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 295670-100381 |
| Effective detection range | 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" |
| Reflector distance | 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" |
| Threshold detection range | 9 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Polarization filter | yes |
| Diameter of the light spot | approx. 170 mm at a distance of 3.5 m |
| Opening angle | approx. 5 ° |
| Ambient light limit | EN 60947-5-2 : 18000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 600 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve |
| Control elements | Teach-In key |
| Control elements | 5-step rotary switch for operating modes selection |
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA at 24 V supply voltage I0 |
| Protection class | III |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D Smart Sensor - SSP 2.4 |
| Process data | Input 2 Bit - switching signal 1 Bit - stability alarm 1 Bit Output 2 Bit - Emitter deactivation 1 Bit - evaluation control function 1 Bit |
| Vendor ID | 1 (0x0001) |
| Device ID | 1120772 (0x111A04) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| SIO mode support | yes |
| Compatible master port type | A |
Output
| Switching type | The default setting is: C/Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link /Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Usage category | DC-12 and DC-13 |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | 1 ms |
Conformity
| Communication interface | IEC 61131-9 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

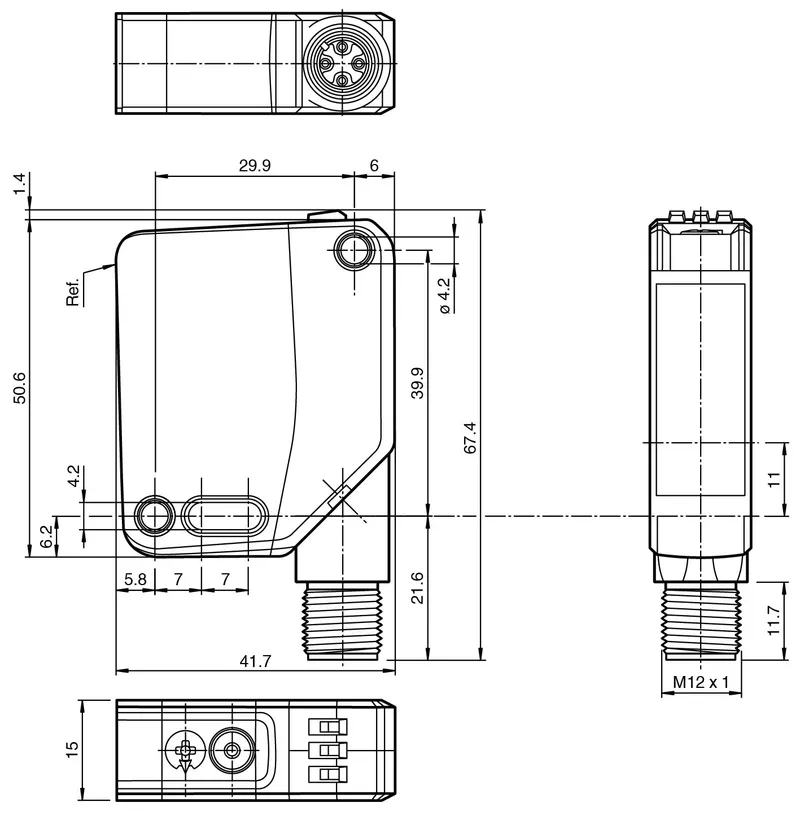

Mechanical specifications
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | 4-pin, M12 x 1 connector, 90° rotatable |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Mass | approx. 37 g |
| Dimensions: Height | 50.6 mm |
| Dimensions: Width | 15 mm |
| Dimensions: Depth | 41.7 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
