Pepperl Fuchs OBR5500-18GK40-E1
Retroreflective sensor
- MPN
- OBR5500-18GK40-E1
- Category
- Retroreflective Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs OBR5500-18GK40-E1?
Short design in M18 plastic housing
Not sensitive to ambient light
Degree of protection IP67
Very high detection range
Short design in M18 plastic housing, Not sensitive to ambient light, Degree of protection IP67, Very high detection range
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70113328-100164 |
| Effective detection range | 0 ... 5.5 m |
| Reflector distance | 0 ... 5.5 m |
| Threshold detection range | 7.8 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 350 mm at 5.5 m |
| Opening angle | approx. 2.6 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 40000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 1552 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Protection class | III |

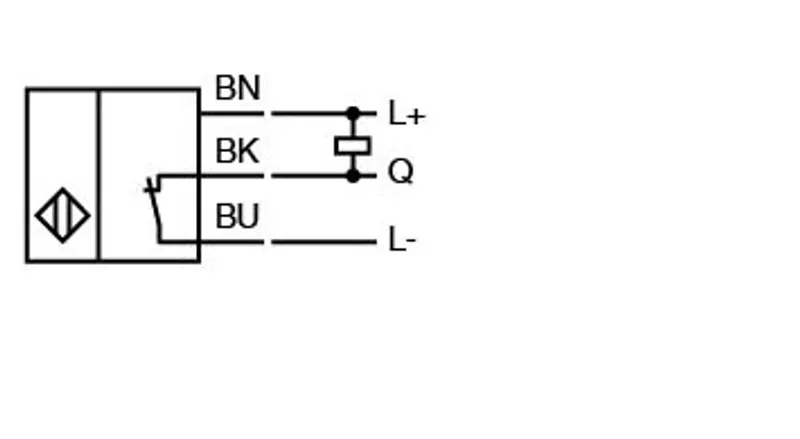

Output
| Switching type | Q - BK: NPN normally closed / light-on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | ≤ 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

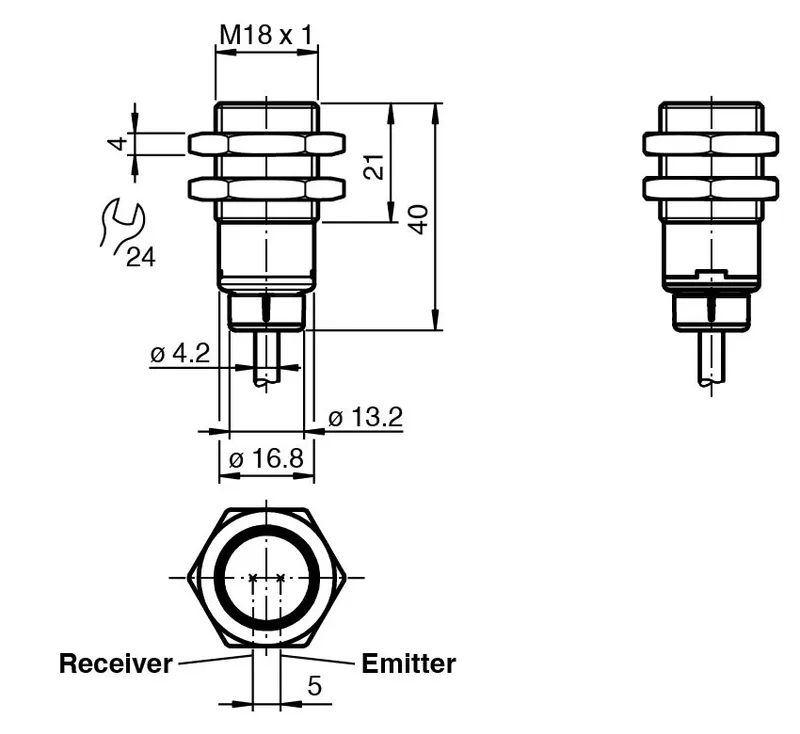

Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Material: Cable | PVC |
| Mass | approx. 54 g |
| Dimensions: Length | 40 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
