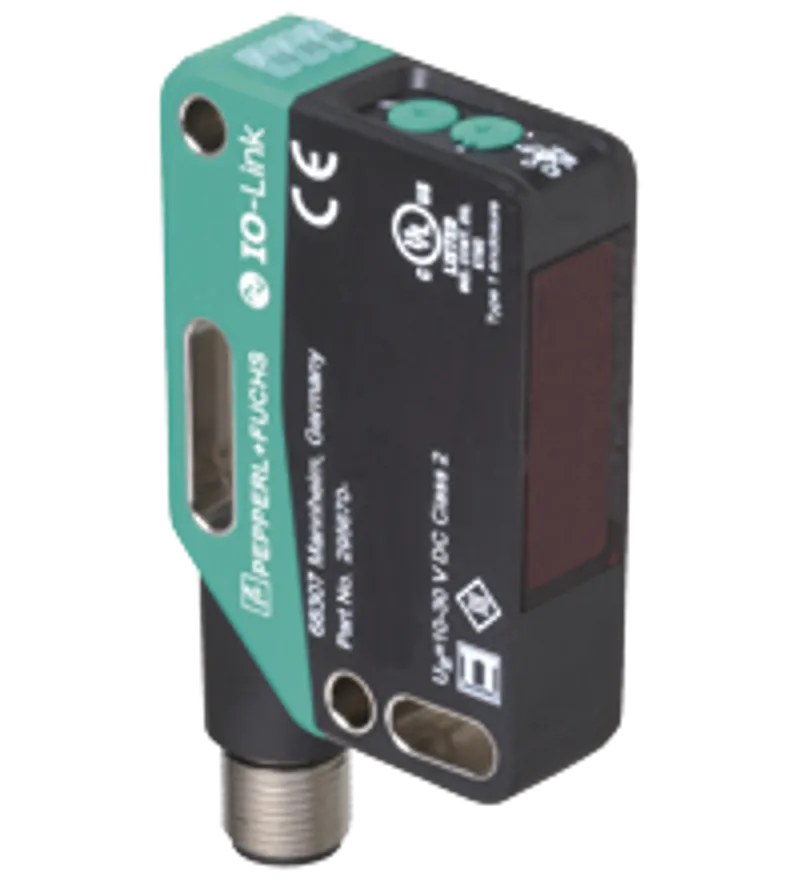

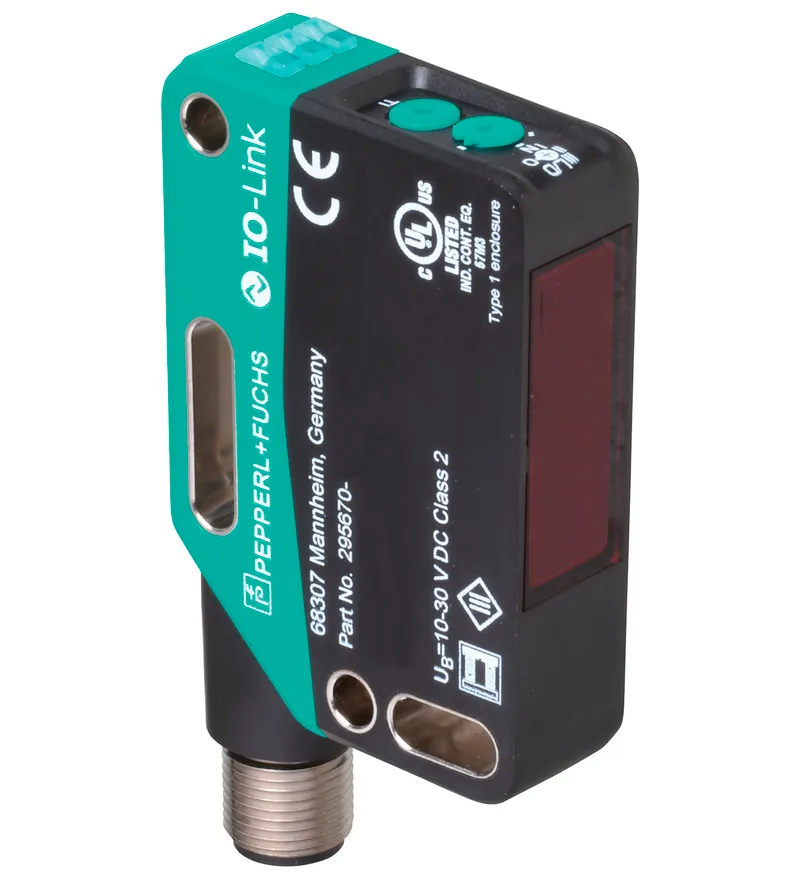

Pepperl Fuchs OBG8000-R201-2EP-IO-V1
Retroreflective sensor (glass)
- MPN
- OBG8000-R201-2EP-IO-V1
- Category
- Retroreflective Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs OBG8000-R201-2EP-IO-V1?
Medium design with versatile mounting options
Detects transparent objects, i.e., clear glass, PET and transparent films
Two machines in one: clear object detection or reflection operating mode with long range
High degree of protection IP69K
IO-Link interface for service and process data
Retroreflective sensor with polarization filter for clear object detection, Medium design with versatile mounting options, Detects transparent objects, i.e., clear glass, PET and transparent films, Two machines in one: clear object detection or reflection operating mode with long range, High degree of protection IP69K, IO-Link interface for service and process data
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 295670-100191 |
| Effective detection range | 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" |
| Reflector distance | 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" |
| Threshold detection range | 9 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Polarization filter | yes |
| Diameter of the light spot | approx. 170 mm at a distance of 3.5 m |
| Opening angle | approx. 5 ° |
| Ambient light limit | EN 60947-5-2 : 18000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 600 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve |
| Control elements | Teach-In key |
| Control elements | 5-step rotary switch for operating modes selection |
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA at 24 V supply voltage I0 |
| Protection class | III |
Interface
| Interface type | IO-Link ( via C/Q = pin 4 ) |
| IO-Link revision | 1.1 |
| Device profile | Identification and diagnosisSmart Sensor type 2.4 |
| Device ID | 0x111A11 (1120785) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| Process data width | Process data input 2 BitProcess data output 2 Bit |
| SIO mode support | yes |
| Compatible master port type | A |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Usage category | DC-12 and DC-13 |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | 1 ms |
Conformity
| Communication interface | IEC 61131-9 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | 4-pin, M12 x 1 connector, 90° rotatable |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Mass | approx. 47 g |

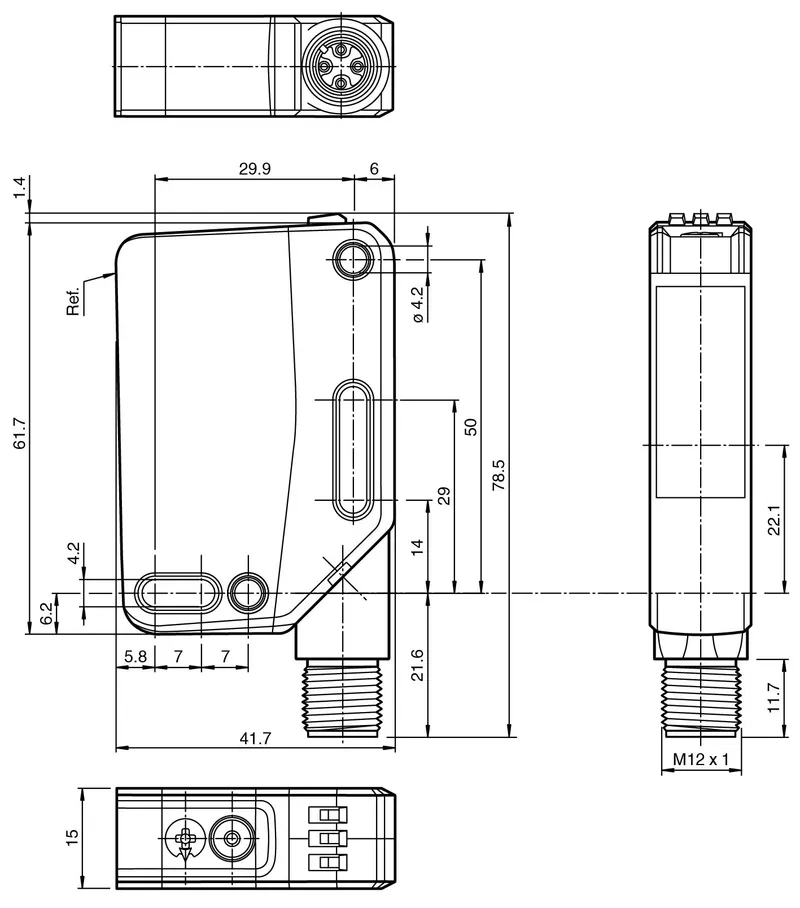

| Dimensions: Height | 61.7 mm |
| Dimensions: Width | 15 mm |
| Dimensions: Depth | 41.7 mm |
| Cable length | 0.3 m |
