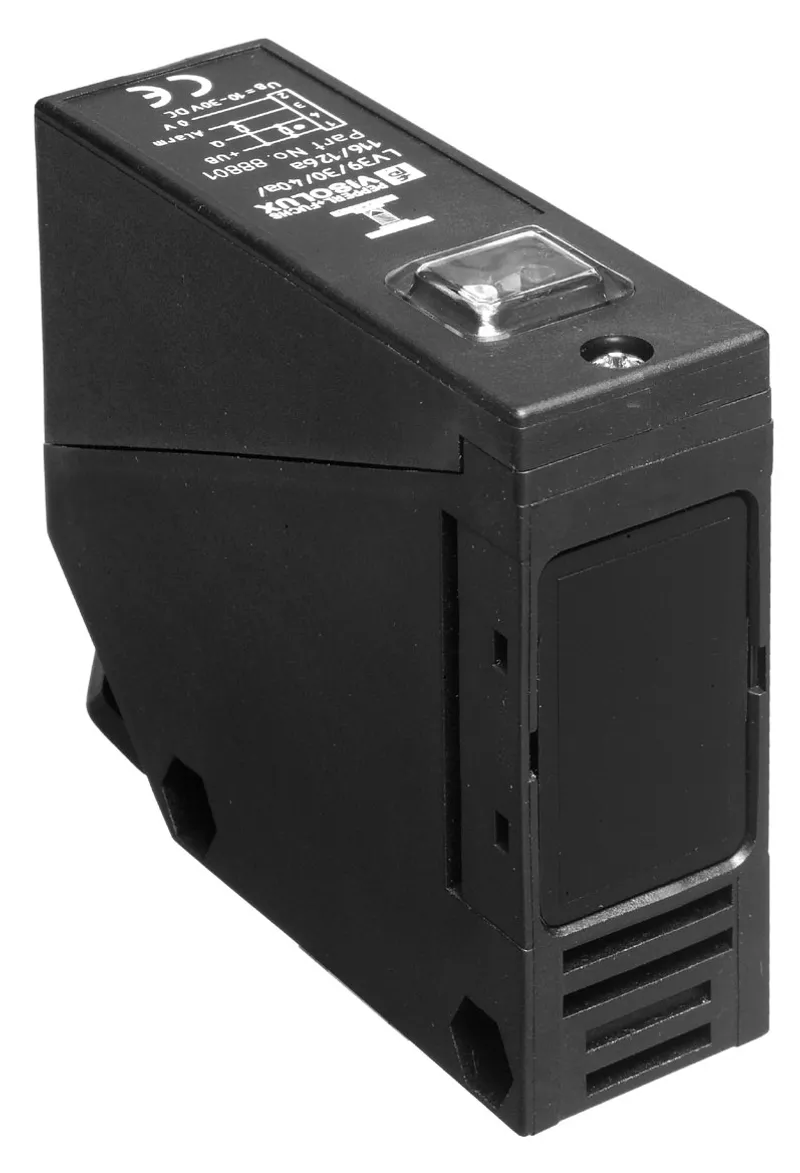

Pepperl Fuchs RL39-54/30/40a/116/126a
Retroreflective sensor
- MPN
- RL39-54/30/40a/116/126a
- Category
- Retroreflective Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs RL39-54/30/40a/116/126a?
Glare protected with polarization filter
Visible red light
Light-on/dark-on, switchable
Degree of protection IP54
Retroreflective sensor for standard applications, polarization filter, detection range 12 m, red light, sensitivity adjuster, light/dark on, prefault output, NPN output, terminal compartment, Glare protected with polarization filter, Visible red light, Light-on/dark-on, switchable, Degree of protection IP54
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 088818 |
| Effective detection range | 0 ... 5 m |
| Reflector distance | 0.1 ... 5 m |
| Threshold detection range | 6 m |
| Reference target | H50 reflector |
| Light source | LED red |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Ambient light limit | IEC / EN 60947-5-2 , 10000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 800 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | LED yellow: switching stateLED red: pre-fault indication |
| Control elements | Sensing range adjuster, light-on/dark-on changeover switch |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | 10 % |
| No-load supply current | ≤ 20 mA I0 |
| Time delay before availability | ≤ 300 ms tv |
Output
| Stability alarm output | 1 NPN, active when falling short of operating reserve |
| Switching type | light/dark on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 200 mA , resistive load |
| Voltage drop | ≤ 3 V Ud |
| Switching frequency | ≤ 300 Hz f |
| Response time | ≤ 1.5 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| Approvals | CE |
Ambient conditions
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

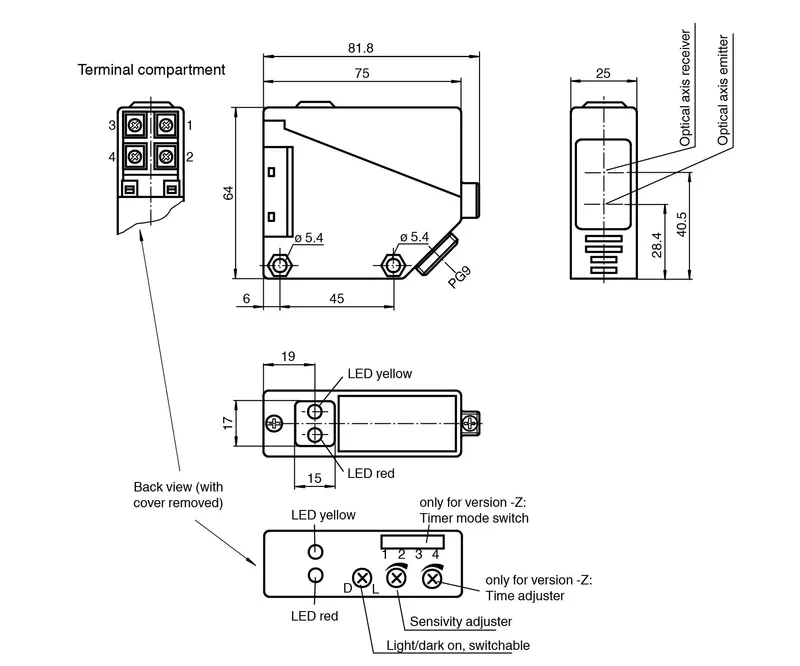

Mechanical specifications
| Degree of protection | IP54 |
| Connection | terminal compartment PG9 , ≤ 0.75 mm2 |
| Material: Housing | PBT |
| Material: Optical face | PMMA |
| Mass | approx. 100 g |
| Dimensions: Height | 64 mm |
| Dimensions: Width | 25 mm |
| Dimensions: Depth | 75 mm |
General information
| Scope of delivery | Mounting aid , Reflector |
