Accessories for cam roller guides Parts
Compare Accessories for cam roller guides
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dimension H1 (profiled rail systems) [mm] | Dimension H2 (profiled rail systems) [mm] | Dimension H3 [mm] | Dimension H4 [mm] |
|---|---|---|---|---|---|
| R191055200 | 0.13 | 42 | 18 | 9 | — |
| R191053200 | 0.06 | 29 | 13 | 7.5 | — |
| R190015221 | 0.24 | 19 | 21 | — | 44.3 |

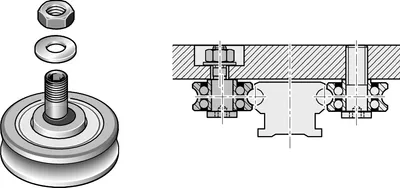

| R190015220 | 0.26 | 19 | 21 | 13 | 44.3 |
| R190015211 | 0.19 | 19 | 21 | — | 44.3 |
| R190015210 | 0.2 | 19 | 21 | 11 | 44.3 |
| R190015201 | 0.11 | 15.9 | 17.9 | — | 36.5 |
| R190015200 | 0.13 | 15.9 | 17.9 | 11 | 36.5 |
| R190013201 | 0.04 | 11 | 12.5 | — | 25.5 |
| R190013200 | 0.04 | 11 | 12.5 | 7 | 25.5 |
| R190012501 | 0.02 | 7 | 8.5 | — | 17.4 |
| R190012500 | 0.02 | 7 | 8.5 | 5.5 | 17.4 |
| R190011901 | 0.02 | 7 | 8.5 | — | 16 |
| R190011900 | 0.02 | 7 | 8.5 | 4.6 | 16 |

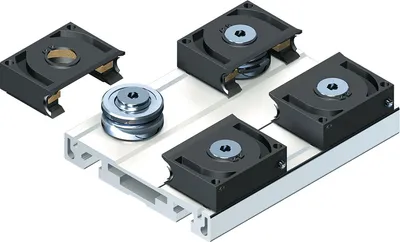

| R191044200 | 0.04 | 26.25 | 35.8 | 38.1 | 18.8 |
