Bosch Rexroth R191055200

STOP 52

MPN: R191055200
Category: Accessories for cam roller guides

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Bosch Rexroth R191055200?

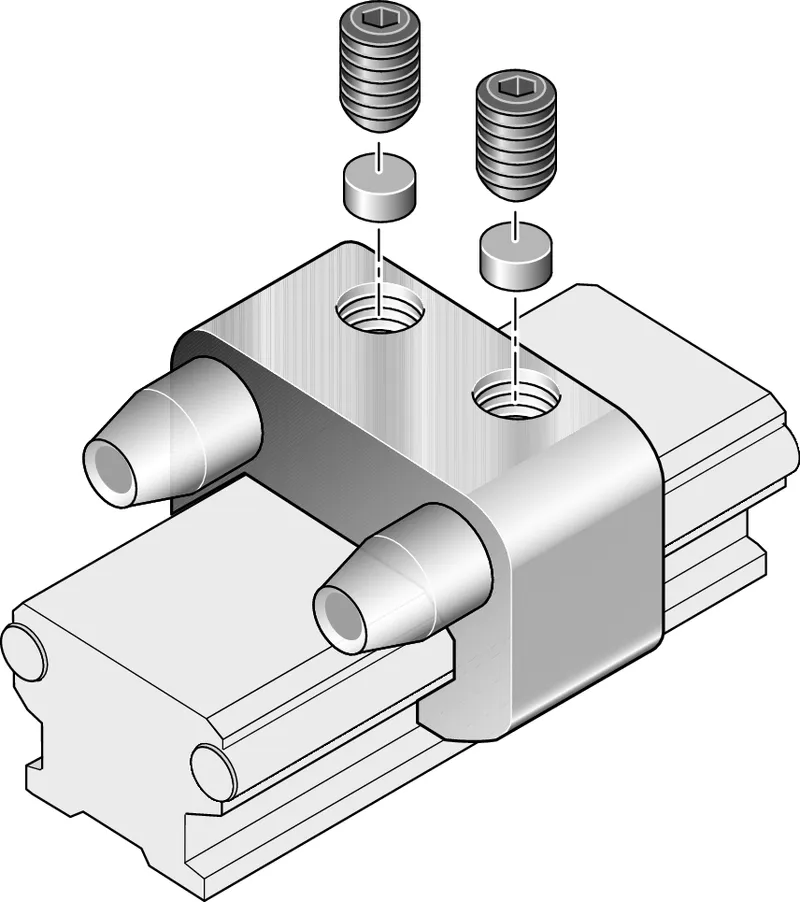

Fixed stop for guide rails R1921, R1922 and R1924

Size = 52

The fixed stop can be used on the guide rails R1921 (standard), R1922 (with slot) and R1924 (flat).

Specifications

Accessories for	Guide rail
Nominal size [mm]	52
Width of runner block [mm]	70.0
Length of runner block [mm]	43.0
Height runner block with guide rail [mm]	53.0
Holding force [N]	1500
Weight [kg]	0.13
Product information	Suitable for guide rails: R1921, R1922, R1924

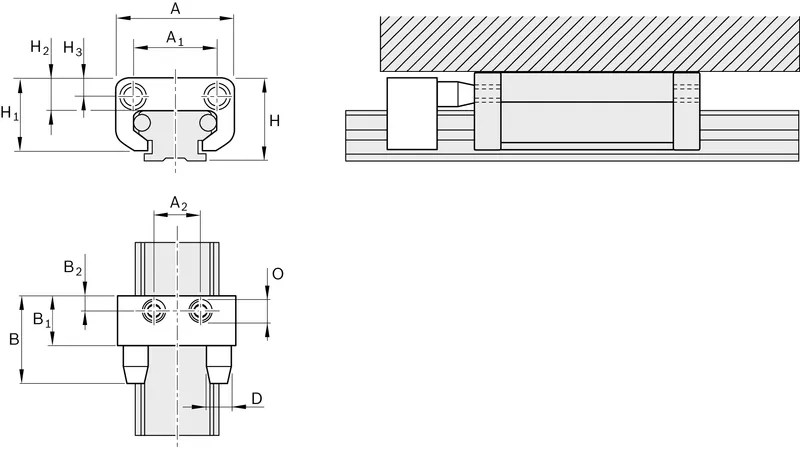

Dimension A (profiled rail systems) [mm]	70
Dimension A1 (profiled rail systems) [mm]	46
Dimension A2 (profiled rail systems) [mm]	32
Dimension B (profiled rail systems) [mm]	43
Dimension B1 [mm]	23
Dimension B2 (profiled rail systems) [mm]	5.5
Dimension D [mm]	16
Dimension H [mm]	53.0
Dimension H1 (profiled rail systems) [mm]	42
Dimension H2 (profiled rail systems) [mm]	18
Dimension H3 [mm]	9
Height of guide rail H2 [mm]	18.0
