Bosch Rexroth R190015200

ROLLER 52 &

MPN: R190015200
Category: Accessories for cam roller guides

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Bosch Rexroth R190015200?

The cam roller is characterized by the following product features:

Size 52

Format: Cam roller with eccentric spigot

Cam roller made of carbon steel CS

Standard load carrying capacity

Accuracy class E: Economic

Without preservation

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

No lube connection attached

Standard version

Overall length of the runner block = 51.3

Interchangeable element

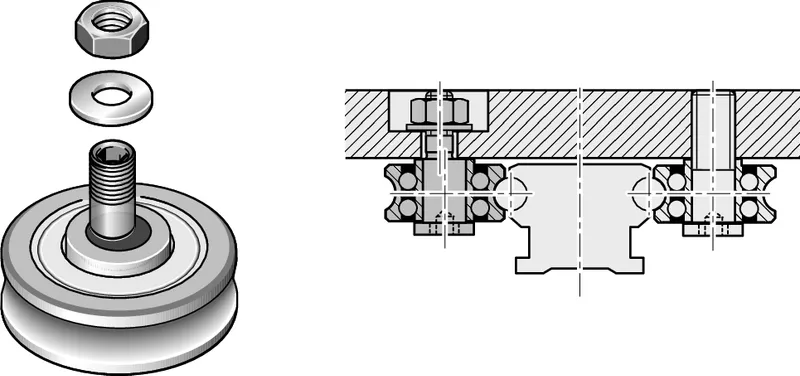

For mounting customer-built table parts, with central and eccentric spigots for zero-clearance adjustment to the guide rail.

For applications where the versatile standard range does not offer the optimum solution to your specific problem.

Specifications

Accessories for	Runner block
Nominal size [mm]	52
Maximum dynamic load in y-direction Fy max [N]	2500
Weight [kg]	0.13
Maximum dynamic load in z-direction Fz max [N]	700

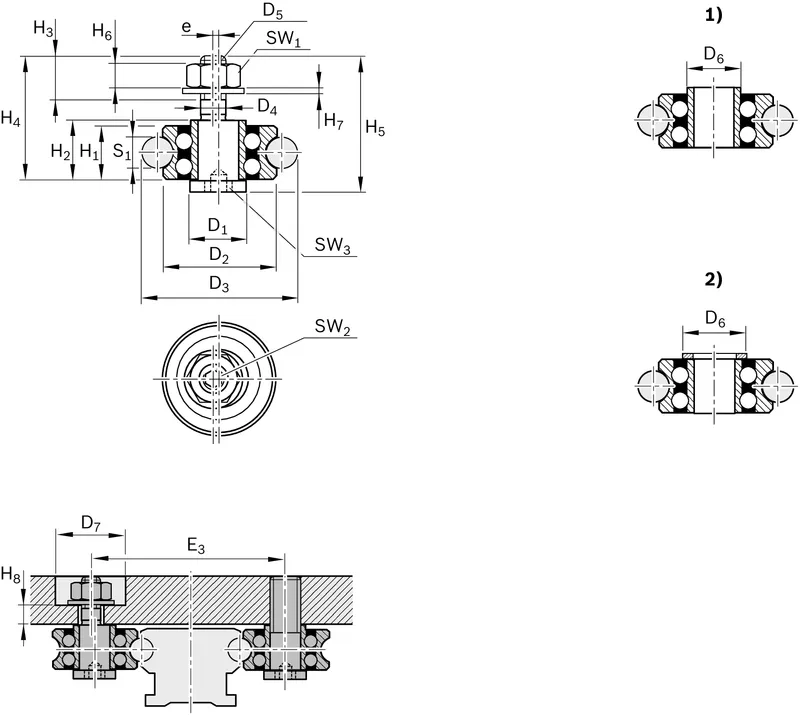

Dimension D1 g6 [mm]	20
Dimension D2 [mm]	35
Dimension D3 [mm]	51.3
Dimension D6 [mm]	19
Dimension D7 [mm]	30
Dimension e [mm]	0.9
Dimension E3 (profiled rail systems) [mm]	83.3
Dimension E3 tolerance [mm]	±0.2
Dimension H1 (profiled rail systems) [mm]	15.9
Dimension H2 (profiled rail systems) [mm]	17.9
Dimension H3 [mm]	11
Dimension H4 [mm]	36.5
Dimension H5 [mm]	41.5
Dimension H6 [mm]	8.4
Dimension H8 [mm]	7.3
Dimension S1 (profiled rail systems) [mm]	10
Dimension SW1 [mm]	16
Dimension SW2 [mm]	4
Dimension SW3 [mm]	6
