ROLLER 52-H &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for cam roller guides |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R190015210 be shipped?
R190015210 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R190015210 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R190015210 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R190015210, subject to availability and destination.

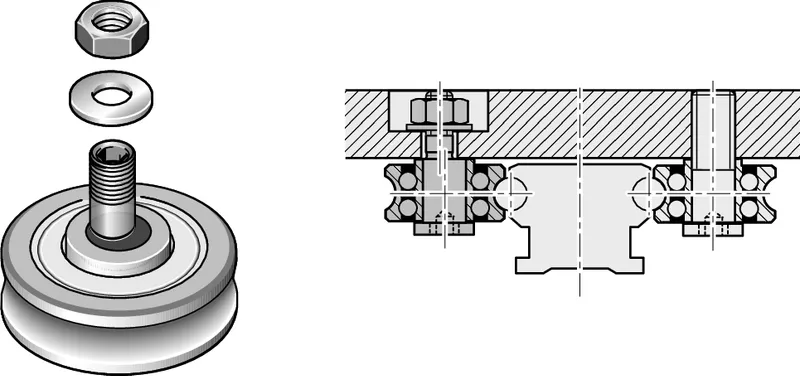

The cam roller is characterized by the following product features:<br>Size 52<br>Format: Cam roller with eccentric spigot<br>Cam roller made of carbon steel CS<br>High load carrying capacity<br>Accuracy class E: Economic<br>Without preservation<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>No lube connection attached<br>Standard version<br>Overall length of the runner block = 58<br>Interchangeable element For mounting customer-built table parts, with central and eccentric spigots for zero-clearance adjustment to the guide rail. For applications where the versatile standard range does not offer the optimum solution to your specific problem.
Specifications

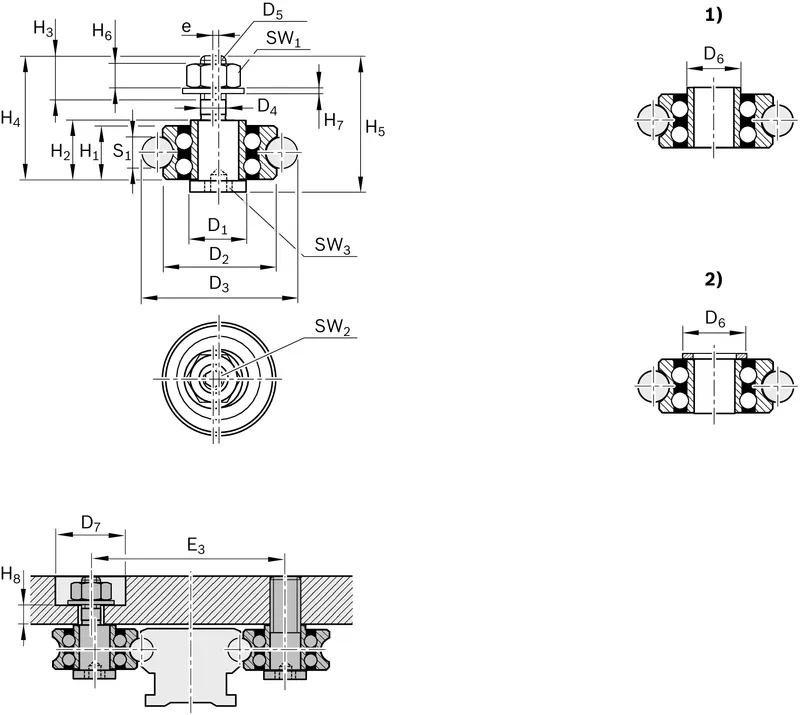

Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 52 |
| Maximum dynamic load in y-direction Fy max [N] | 2600 |
| Weight [kg] | 0.2 |
| Maximum dynamic load in z-direction Fz max [N] | 800 |
| Dimension D1 g6 [mm] | 20 |
| Dimension D2 [mm] | 42 |
| Dimension D3 [mm] | 58 |
| Dimension D6 [mm] | 19 |
| Dimension D7 [mm] | 30 |
| Dimension e [mm] | 0.9 |
| Dimension E3 (profiled rail systems) [mm] | 90 |
| Dimension E3 tolerance [mm] | ±0.2 |
| Dimension H1 (profiled rail systems) [mm] | 19 |
| Dimension H2 (profiled rail systems) [mm] | 21 |
| Dimension H3 [mm] | 11 |
| Dimension H4 [mm] | 44.3 |
| Dimension H5 [mm] | 50.3 |
| Dimension H6 [mm] | 8.4 |
| Dimension H8 [mm] | 11.8 |
| Dimension S1 (profiled rail systems) [mm] | 10 |
| Dimension SW1 [mm] | 16 |
| Dimension SW2 [mm] | 4 |
| Dimension SW3 [mm] | 6 |
