Bosch Rexroth R191044200
LUBRICATING UNIT 42
- MPN
- R191044200
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Bosch Rexroth R191044200?

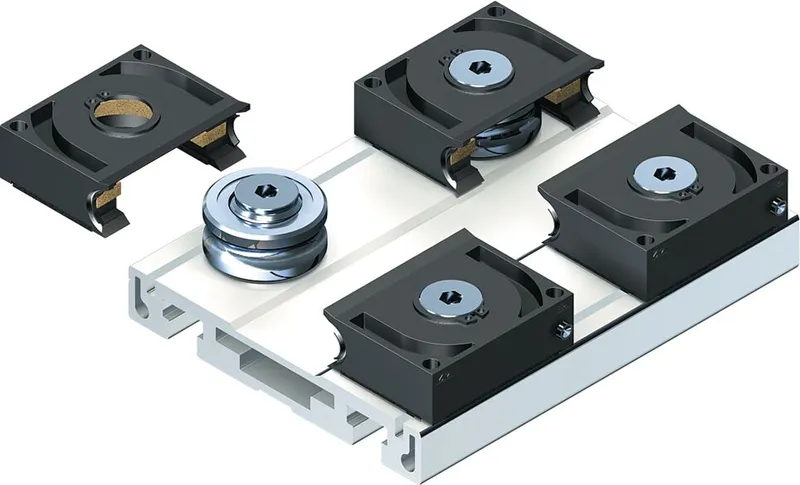

Lubrication unit for cam roller guide R190714200
Size = 42
The lubrication unit R191044200 was specially developed for the cam roller of the profile runner block R190714200.
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 42 |
| Width of runner block [mm] | 116.0 |
| Length of runner block [mm] | 56.0 |
| Weight [kg] | 0.04 |
| Product information | For profile runner blocks R190714200 |

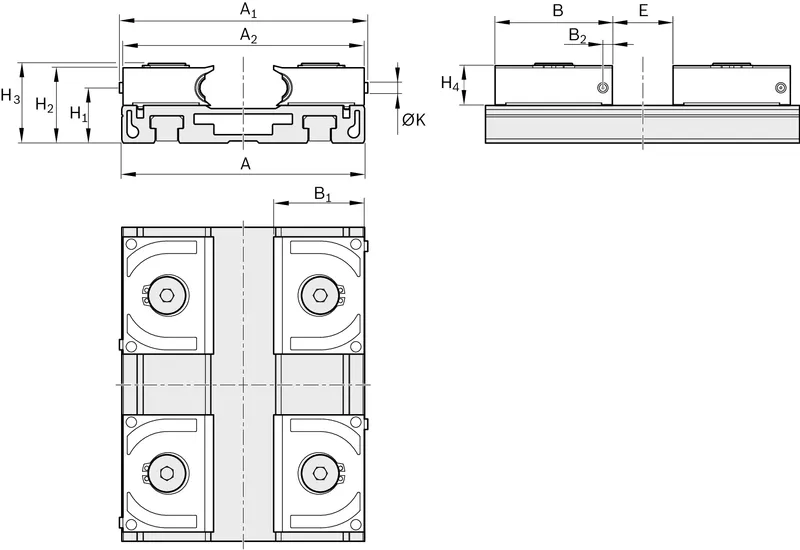

| Dimension A (profiled rail systems) [mm] | 116 |
| Dimension A1 (profiled rail systems) [mm] | 118.65 |
| Dimension A2 (profiled rail systems) [mm] | 115.25 |
| Dimension B (profiled rail systems) [mm] | 56 |
| Dimension B1 [mm] | 43.25 |
| Dimension B2 (profiled rail systems) [mm] | 4.5 |
| Dimension E [mm] | 29 |
| Dimension H1 (profiled rail systems) [mm] | 26.25 |
| Dimension H2 (profiled rail systems) [mm] | 35.8 |
| Dimension H3 [mm] | 38.1 |
| Dimension H4 [mm] | 18.8 |
| Dimension K (profiled rail systems) [mm] | 5 |
| Height of guide rail H2 [mm] | 35.8 |
