STOP 32
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for cam roller guides |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R191053200 be shipped?
R191053200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R191053200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R191053200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R191053200, subject to availability and destination.

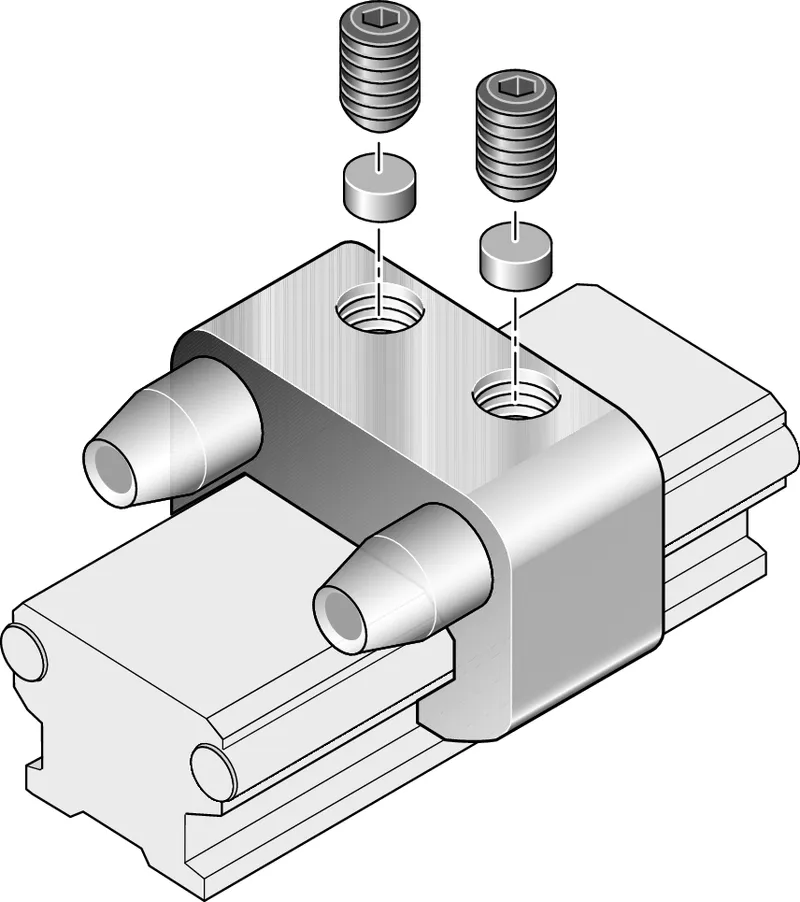

Fixed stop for guide rails R1921, R1922 and R1924<br>Size = 32 The fixed stop can be used on the guide rails R1921 (standard), R1922 (with slot) and R1924 (flat).
Specifications
Specifications
| Accessories for | Guide rail |
| Nominal size [mm] | 32 |
| Width of runner block [mm] | 46.0 |
| Length of runner block [mm] | 35.0 |
| Height runner block with guide rail [mm] | 33.5 |
| Holding force [N] | 1500 |
| Weight [kg] | 0.06 |
| Product information | Suitable for guide rails: R1921, R1922, R1924 |

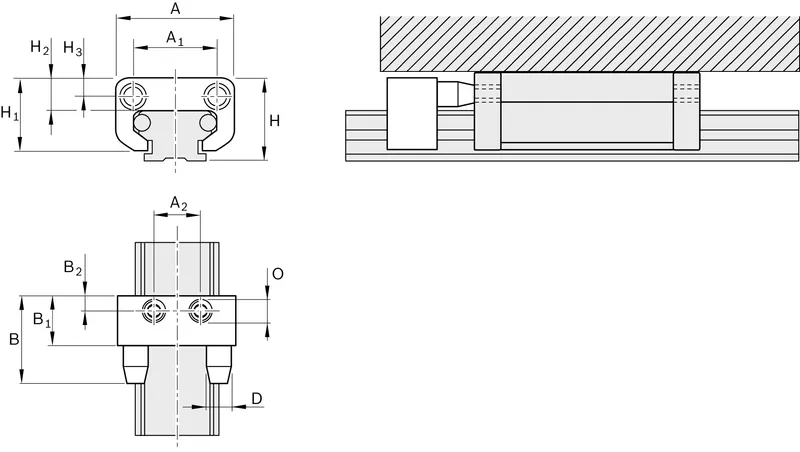

| Dimension A (profiled rail systems) [mm] | 46 |
| Dimension A1 (profiled rail systems) [mm] | 33 |
| Dimension A2 (profiled rail systems) [mm] | 18 |
| Dimension B (profiled rail systems) [mm] | 35 |
| Dimension B1 [mm] | 20 |
| Dimension B2 (profiled rail systems) [mm] | 5.5 |
| Dimension D [mm] | 10 |
| Dimension H [mm] | 33.5 |
| Dimension H1 (profiled rail systems) [mm] | 29 |
| Dimension H2 (profiled rail systems) [mm] | 13 |
| Dimension H3 [mm] | 7.5 |
| Height of guide rail H2 [mm] | 13.0 |
