Schneider Electric NSYCRN106300P

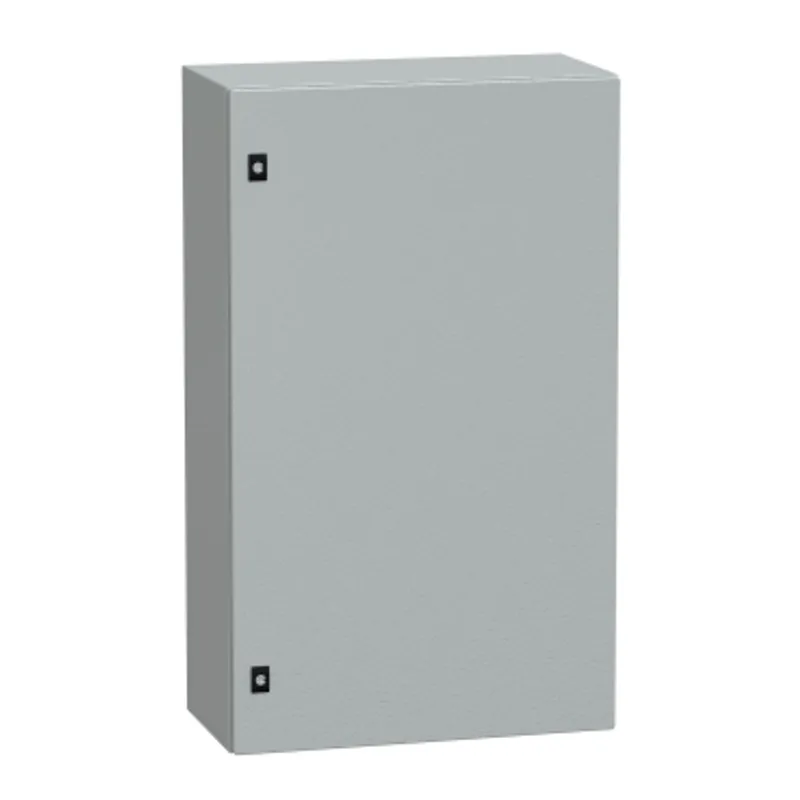

PanelSeT CRN plain door with mount.plate. H1000xW600xD300 IP66 IK10 RAL7035..

MPN: NSYCRN106300P
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Schneider Electric NSYCRN106300P?

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 1000mm, 600mm, and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a three-point lock and a 3mm double-bar insert, and a galvanised steel mounting plate It is possible to change the opening side of the door (reversible) The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 38,2kg The back of the enclosure is welded with double profile forming a protected sealed area, and the sides are made from a single folded section The enclosure provides accessibility for operation from the front This compact enclosure is c.UL certified.

Specifications

Range	PanelSeT
Product name	PanelSeT CRN
Application	Multi-purpose
Category	Compact enclosure

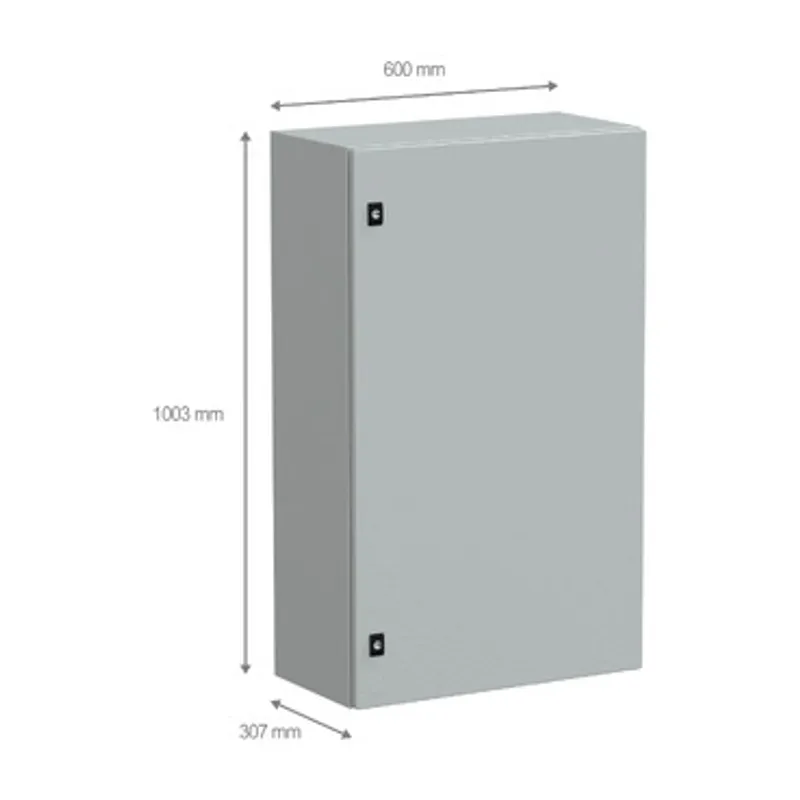

Enclosure nominal height	1000 mm
Enclosure nominal width	600 mm
Enclosure nominal depth	300 mm
Installation accessory type	Wall-mounting
Device composition	1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate
Door type	Plain
Mounting plate description	Plain
body type	Back welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doors	Front face: 1 door(s)
Door opening side	Reversible (120 °)
Lock type	3 mm double-bar lock
Type of gland plate	Standard
Accessibility for operation	Front
Removable parts	Door by hinges, Cable gland plate by screws, Mounting plate by fixing element
Material	Enclosure: steel, Mounting plate: galvanised steel
Surface finish	Enclosure: epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035)
Standards	IEC 62208, UL, CUL
Product certifications	UL, cUL, DNV-GL
Net weight	38.2 kg
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Coverage	Core product

Packaging

Package 1	1 PCE, 101.500 cm × 61.500 cm × 31.500 cm (L × W × H), 35.000 kg
Package 2	6 PAM, 120.000 cm × 100.000 cm × 134.000 cm (L × W × H), 223.000 kg
