Schneider Electric NSYCRN106250T

PanelSeT CRN tspt door w/o mount.plate. H1000xW600xD250 IP66 IK10 RAL7035..

MPN: NSYCRN106250T
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Schneider Electric NSYCRN106250T?

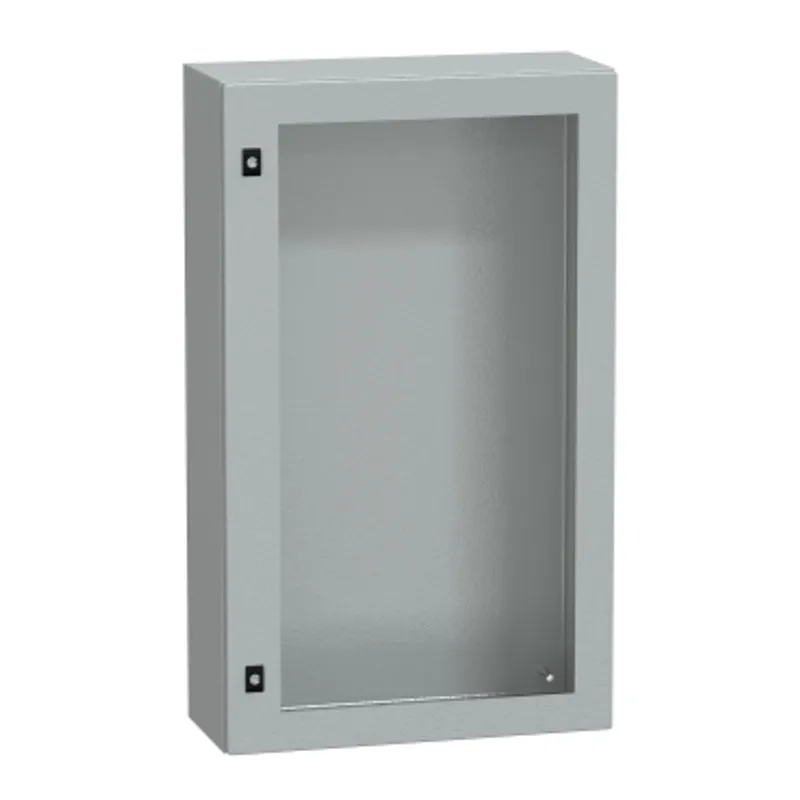

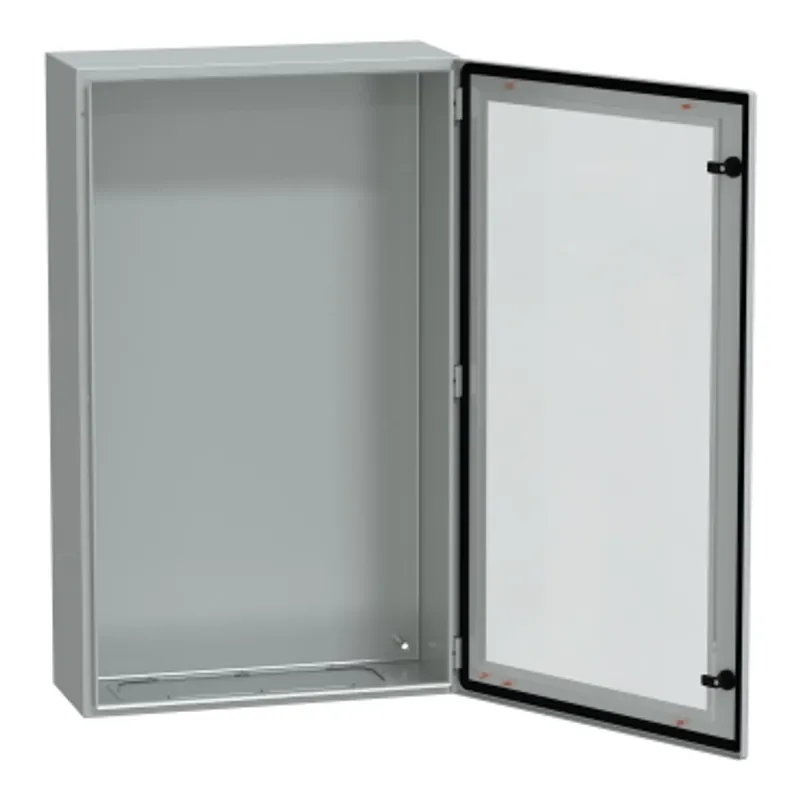

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK08 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 1000mm, 600mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The door is made from steel and security glass, allowing for easy viewing of the equipment inside The enclosure consists of a body, a cable gland plate, a glazed door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes

Specifications

Range	PanelSeT
Product name	PanelSeT CRN
Application	Multi-purpose
Category	Compact enclosure
Enclosure nominal height	1000 mm
Enclosure nominal width	600 mm
Enclosure nominal depth	250 mm
Installation accessory type	Wall-mounting
Device composition	1 body, 1 cable gland plate, 1 door, 1 lock
Door type	Glazed
Mounting plate description	Without mounting plate
body type	Sides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doors	Front face: 1 door(s)
Door opening side	Reversible (120 °)
Lock type	3 mm double-bar lock
Type of gland plate	Standard
Accessibility for operation	Front
Removable parts	Door by hinges, Cable gland plate by screws
Material	Body: steel, Door: steel and security glass
Surface finish	Epoxy-polyester powder
Colour	Grey (RAL 7035)
Standards	IEC 62208, UL, CUL
Product certifications	cUL, UL, DNV-GL
Net weight	23 kg
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
Coverage	Core product

Packaging

Package 1	1 PCE, 102.000 cm × 62.000 cm × 27.000 cm (L × W × H), 23.000 kg
Package 2	12 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 287.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYCRN106250TPDF
