Schneider Electric NSYCRN106250P

PanelSeT CRN plain door with mount.plate. H1000xW600xD250 IP66 IK10 RAL7035..

MPN: NSYCRN106250P
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Schneider Electric NSYCRN106250P?

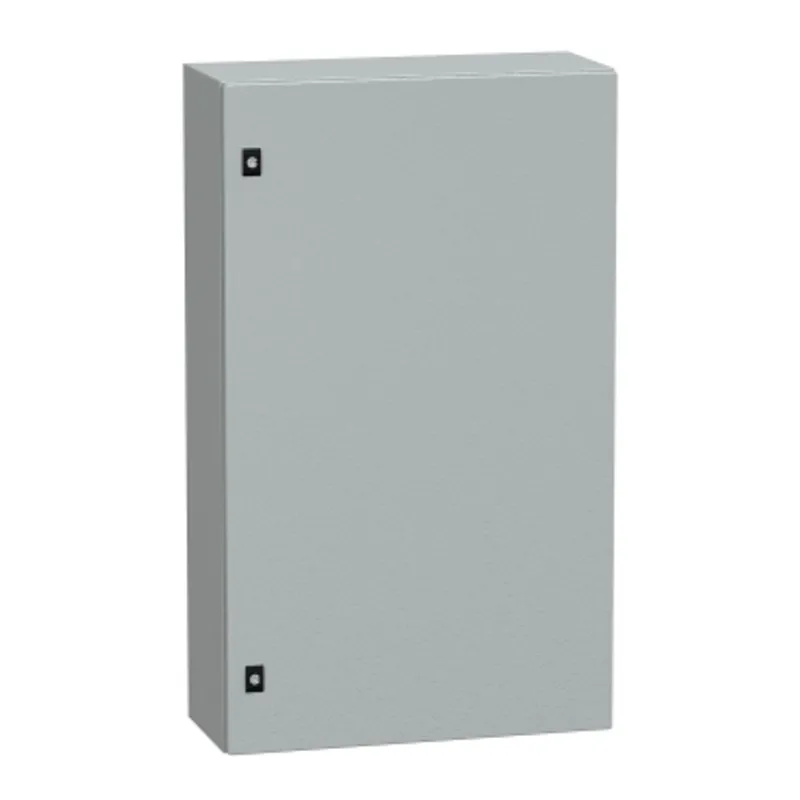

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 1000 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.

Specifications

Range	PanelSeT
Product name	PanelSeT CRN
Application	Multi-purpose
Category	Compact enclosure

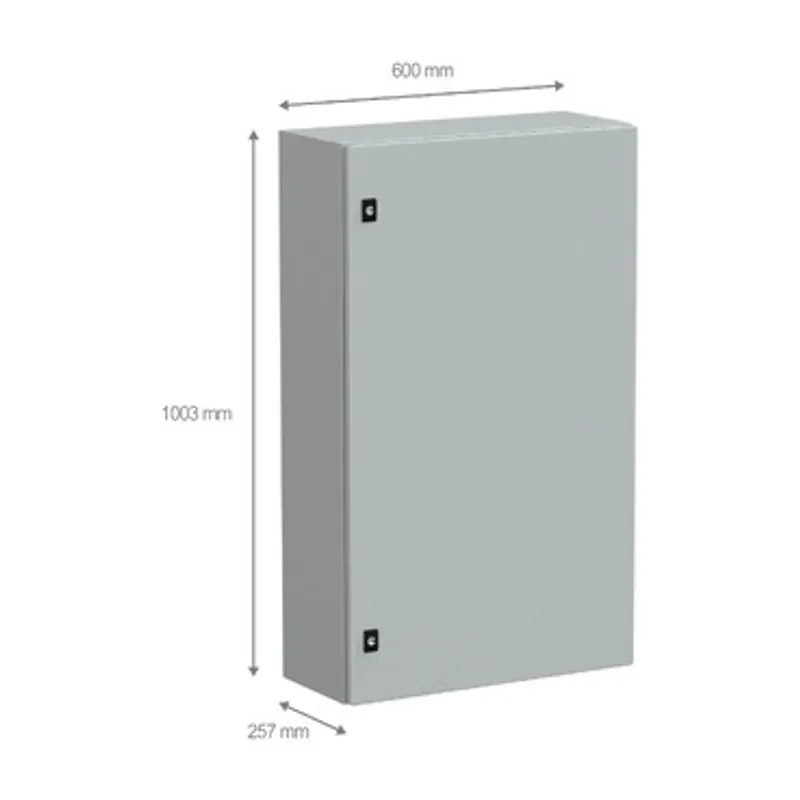

Enclosure nominal height	1000 mm
Enclosure nominal width	600 mm
Enclosure nominal depth	250 mm
Installation accessory type	Wall-mounting
Device composition	1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate
Door type	Plain
Mounting plate description	Plain
body type	Back welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doors	Front face: 1 door(s)
Door opening side	Reversible (120 °)
Lock type	3 mm double-bar lock
Type of gland plate	Standard
Accessibility for operation	Front
Removable parts	Door by hinges, Cable gland plate by screws, Mounting plate by fixing element
Material	Enclosure: steel, Mounting plate: galvanised steel
Surface finish	Enclosure: epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035)
Standards	IEC 62208, UL, CUL
Product certifications	cUL, UL, DNV-GL
Net weight	36 kg
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Coverage	Core product

Packaging

Package 1	1 PCE, 110.500 cm × 61.000 cm × 27.000 cm (L × W × H), 33.000 kg
Package 2	8 PAM, 120.000 cm × 100.000 cm × 136.000 cm (L × W × H), 276.000 kg
