Schneider Electric NSYCRN106250
PanelSeT CRN plain door w/o mount.plate. H1000xW600xD250 IP66 IK10 RAL7035..
- MPN
- NSYCRN106250
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

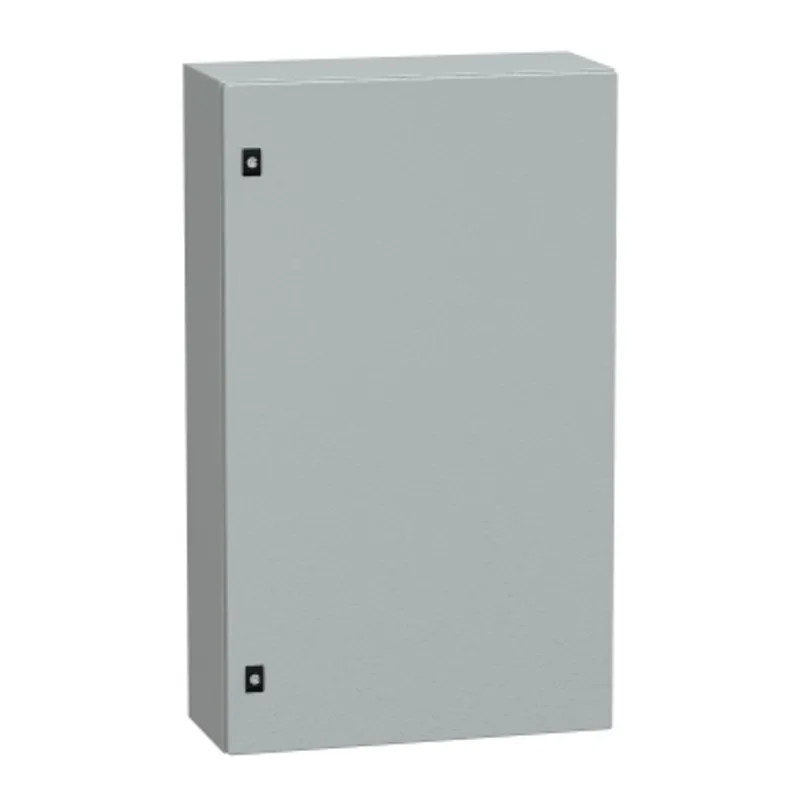

What is the Schneider Electric NSYCRN106250?
TheSpacial CRN enclosure is a multi-purpose wall-mounting device designed for harsh environments It has a nominal height, width, and depth of 1000mm, 600mm, and 250mm, respectively It is made from steel and is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes It has a net weight of 26,6kg and is certified by UL, cUL, and DNV-GL standards The enclosure is rated IK10 (IEC62262) and IP66 (IEC60529) for high impact and dust/water resistance
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

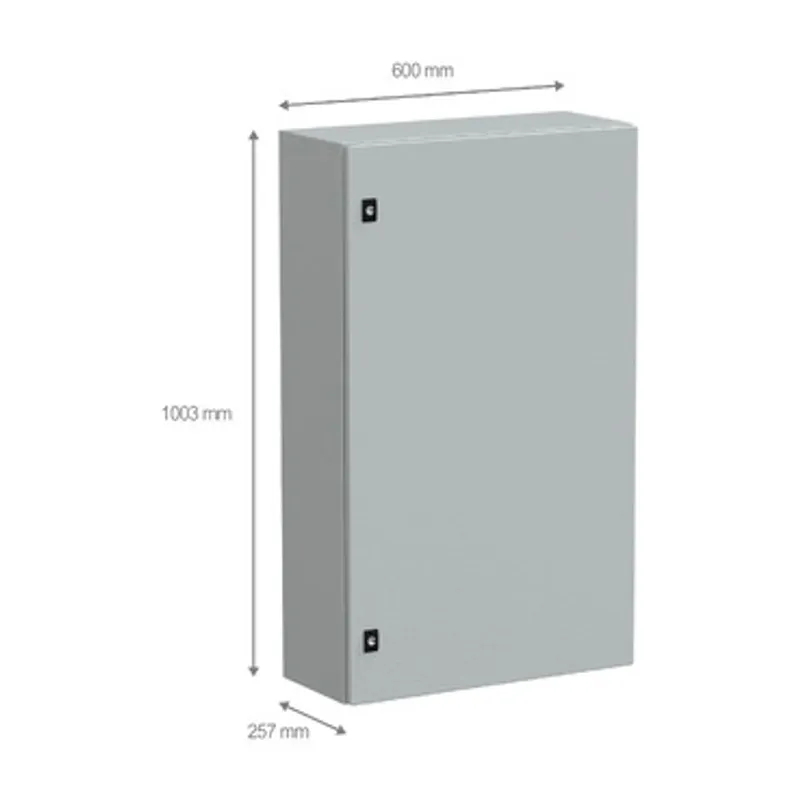

| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 26.6 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 61.500 cm × 27.000 cm (L × W × H), 22.800 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 197.000 cm (L × W × H), 287.500 kg |
