Schneider Electric NSYCRN108250

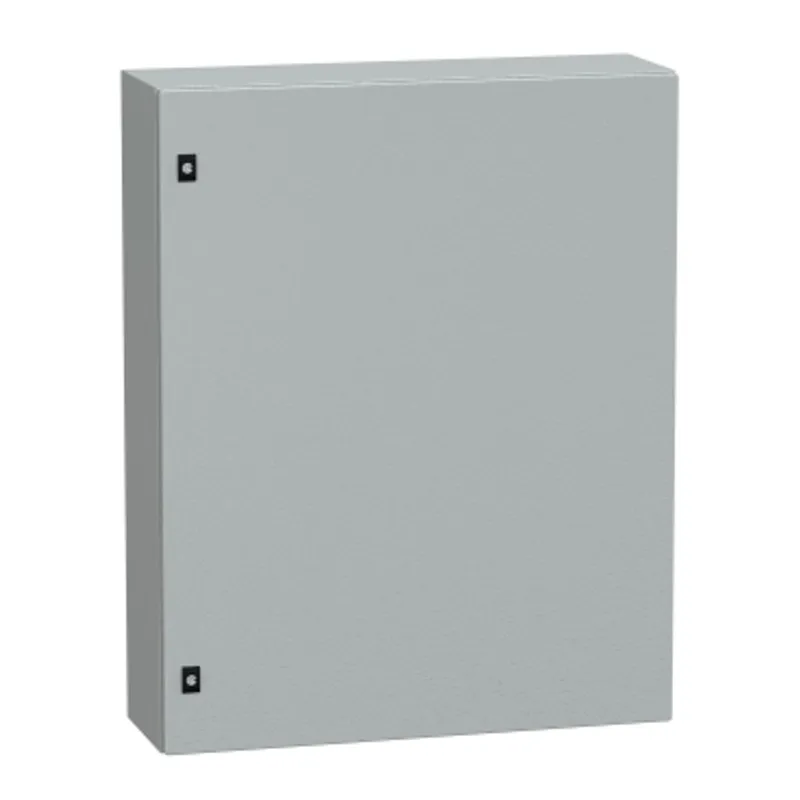

PanelSeT CRN plain door w/o mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..

MPN: NSYCRN108250
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Schneider Electric NSYCRN108250?

Spacial CRN steel wall-mounting enclosure is a multi-purpose product designed to withstand harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and IP66 (IEC60529) rating for high impact and dust/water resistance The enclosure has a nominal height, width, and depth of 1000mm, 800mm, and 250mm, respectively It is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door, a three-point lock with a 3mm double-bar insert, and two cable gland plates The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 33kg The variant particularity of this enclosure is that the back is welded with double profile forming a protected sealed area and the sides are made from a single folded section

Specifications

Range	PanelSeT
Product name	PanelSeT CRN
Application	Multi-purpose
Category	Compact enclosure
Enclosure nominal height	1000 mm
Enclosure nominal width	800 mm
Enclosure nominal depth	250 mm
Installation accessory type	Wall-mounting
Device composition	1 body, 1 door, 1 lock, 2 cable gland plate: bottom
Door type	Plain
Mounting plate description	Without mounting plate
body type	Back welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doors	Front face: 1 door(s)
Door opening side	Reversible (120 °)
Lock type	3 mm double-bar lock
Type of gland plate	Standard
Accessibility for operation	Front
Removable parts	Door by hinges, Cable gland plate by screws
Material	Body: steel
Surface finish	Epoxy-polyester powder
Colour	Grey (RAL 7035)
Standards	IEC 62208, UL, CUL
Product certifications	UL, cUL, DNV-GL
Net weight	33 kg
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Coverage	Core product

Packaging

Package 1	1 PCE, 101.000 cm × 81.000 cm × 27.000 cm (L × W × H), 33.000 kg
Package 2	8 PAM, 120.000 cm × 100.000 cm × 177.000 cm (L × W × H), 275.000 kg
