Schneider Electric KCF2PZ
Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V3/V4
- MPN
- KCF2PZ
- EAN
- 3389110504316
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric KCF2PZ?

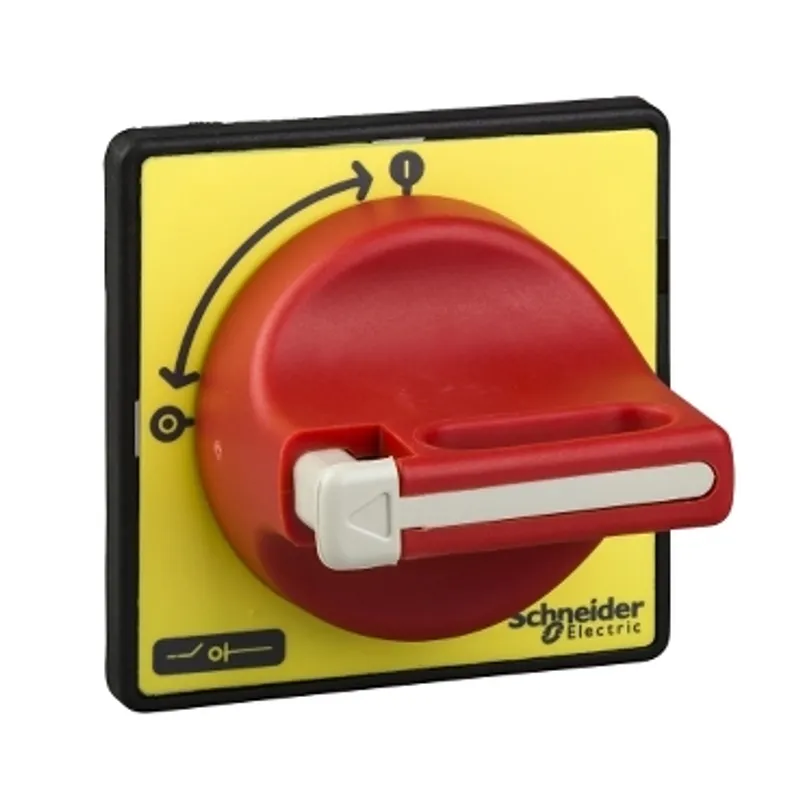

TeSys Vario operating handle, for TeSys Vario switch bodies V3-V4. It provides a red handle and yellow front plate 60x60mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | KCF2 |
| Product or component type | Rotary handle |
| Product compatibility | V3, V4 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Fixing mode | By 4 screws |
| handle front plate dimension | 60 x 60 mm |
| Height | 60 mm |
| Width | 60 mm |
| Net weight | 0.07 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 8.500 cm × 7.000 cm × 7.000 cm (L × W × H), 74.000 g |
| Package 2 | 45 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.854 kg |
| Package 3 | 360 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 43.755 kg |
