Schneider Electric KCD1PZ
Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,fixing by single hole Ø22.5mm
- MPN
- KCD1PZ
- EAN
- 3389110725087
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric KCD1PZ?

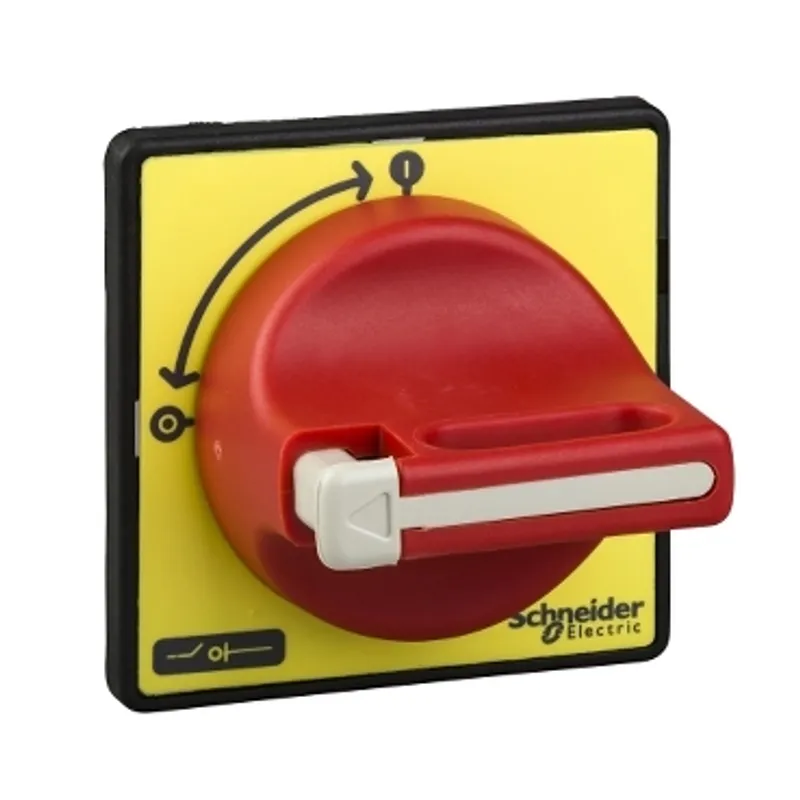

TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a red handle and yellow front plate 60x60mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | KCD1 |
| Product or component type | Rotary handle |
| Product compatibility | VN20, VN12, V02...V2 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Fixing mode | Hole, with diameter 22.5 mm |
| handle front plate dimension | 60 x 60 mm |
| Height | 60 mm |
| Width | 60 mm |
| Net weight | 0.082 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 8.200 cm × 7.000 cm × 7.000 cm (L × W × H), 78.000 g |
| Package 2 | 45 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.928 kg |
| Package 3 | 360 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 42.284 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
KCD1PZ: frequently asked questions
When can KCD1PZ be shipped?
KCD1PZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KCD1PZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KCD1PZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KCD1PZ, subject to availability and destination.
