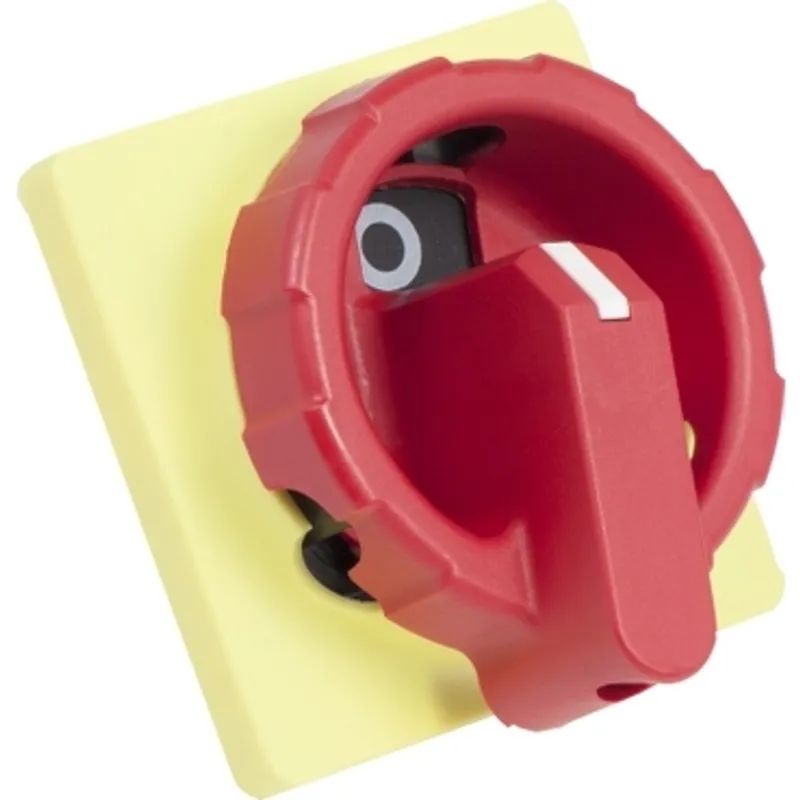

Schneider Electric KCF2YZ
Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing
- MPN
- KCF2YZ
- EAN
- 3389110216868
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original KCF2YZ (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric KCF2YZ?
TeSys Vario operating handle, for TeSys Vario switch bodies V3-V4. It provides a low profile red handle and yellow front plate 60x60mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | KCF2 |
| Product or component type | Rotary handle |
| Product compatibility | V6, V5 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Fixing mode | Hole, with diameter 5.5 mm |
| handle front plate dimension | 60 x 60 mm |
| Height | 60 mm |
| Width | 60 mm |
| Net weight | 0.07 kg |
| IP degree of protection | IP40 |
Packaging
| Package 1 | 1 PCE, 6.500 cm × 8.000 cm × 6.500 cm (L × W × H), 74.000 g |
| Package 2 | 45 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.750 kg |
| Package 3 | 360 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 42.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
KCF2YZ: frequently asked questions
Can I still buy the KCF2YZ now that it is discontinued?
Yes. Schneider Electric has discontinued the KCF2YZ, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the KCF2PZ as its successor — we can quote both.
When can KCF2YZ be shipped?
KCF2YZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KCF2YZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KCF2YZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KCF2YZ, subject to availability and destination.
