Schneider Electric KCD1YZ

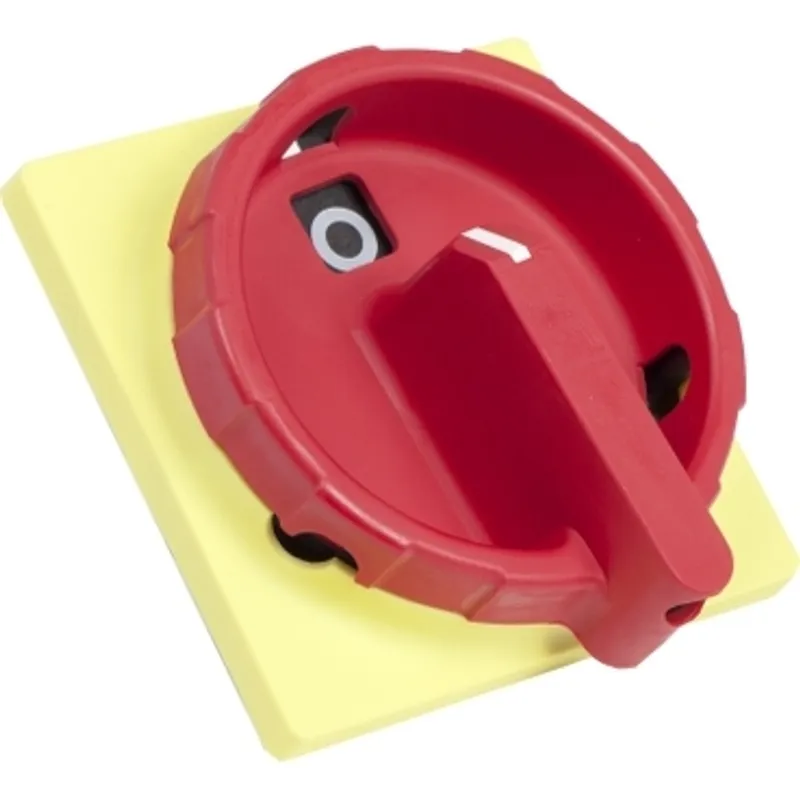

TeSys VARIO / Mini VARIO - front and red rotary handle - 1 to 3 padlocking

MPN
KCD1YZ
EAN
3389110448962
Category
TeSys Vario
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original KCD1YZ (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the Schneider Electric KCD1YZ?

TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a low profile red handle and yellow front plate 60x60mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Specifications

Specifications

RangeTeSys
Device short nameKCD1
Product or component typeRotary handle
Product compatibilityV02...V2
Handle colourRed
Handle front plate colourYellow
Rotary handle padlocking1 to 3 padlocks 4…8 mm
Marking0 - 1
Fixing modeHole, with diameter 22.5 mm
handle front plate dimension60 x 60 mm
Height60 mm
Width60 mm
Net weight0.082 kg
IP degree of protectionIP65

Packaging

Package 11 PCE, 8.300 cm × 6.800 cm × 6.800 cm (L × W × H), 78.000 g
Package 245 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.583 kg
