Schneider Electric KCE1YZ
Handles and front plates,TeSys Control,red handle,yellow front,1 padlocking,4 screws fixing
- MPN
- KCE1YZ
- EAN
- 3389110424348
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original KCE1YZ (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric KCE1YZ?

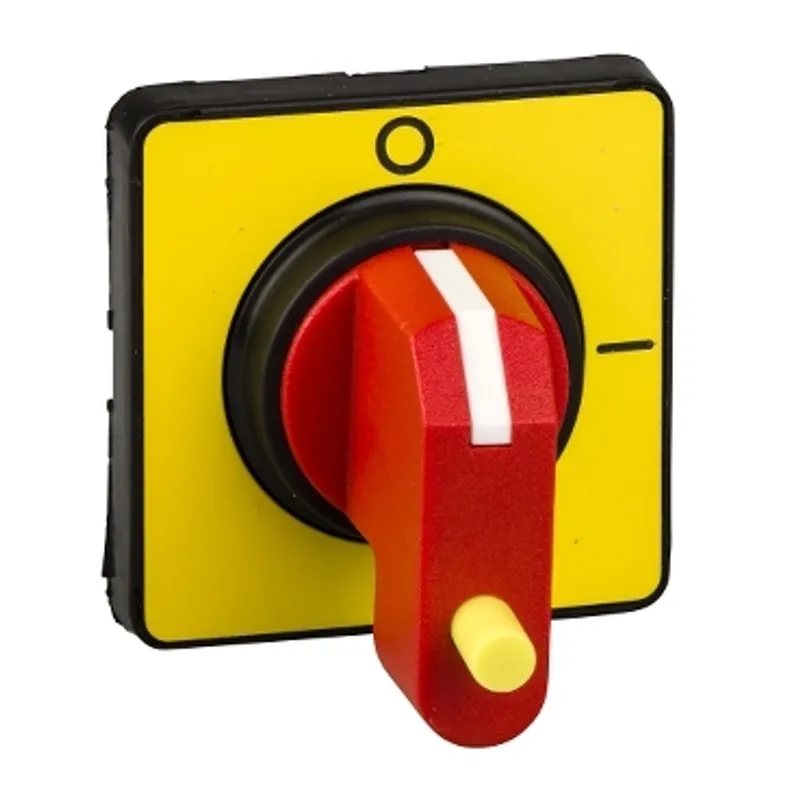

TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a red handle and yellow front plate 45x45mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, 1 position (padlock to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | KCE1 |
| Product or component type | Rotary handle |
| Product compatibility | VN20, V02...V2, VN12 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 padlock 4…6 mm |
| Marking | 0 - 1 |
| Fixing mode | By 4 screws |
| handle front plate dimension | 45 x 45 mm |
| Height | 45 mm |
| Width | 45 mm |
| Net weight | 0.04 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 7.9 cm × 6.6 cm × 6.5 cm (L × W × H), 53.0 g |
| Package 2 | 45 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 2.86 kg |
