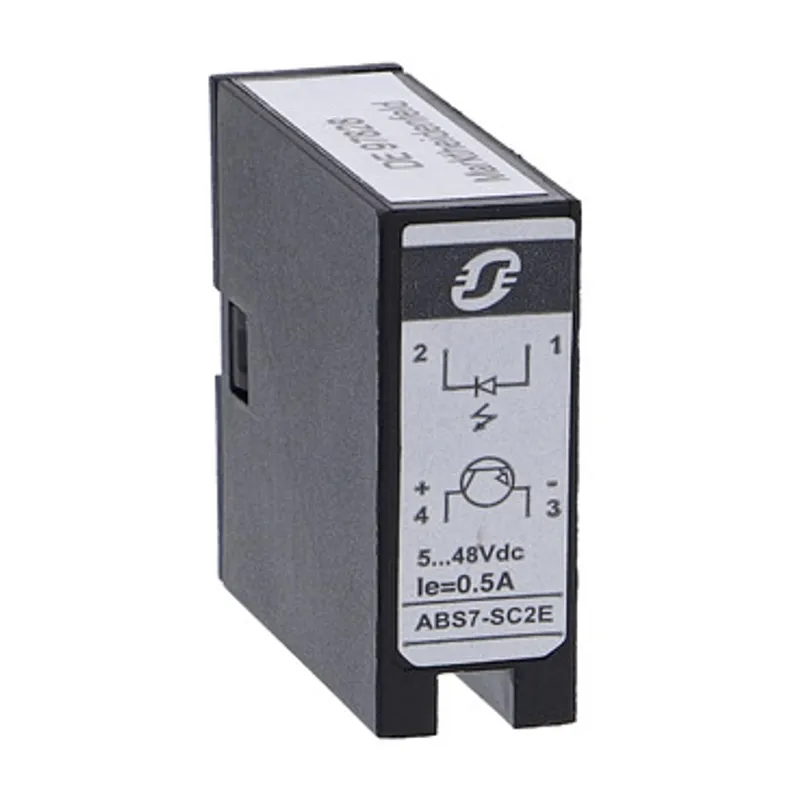

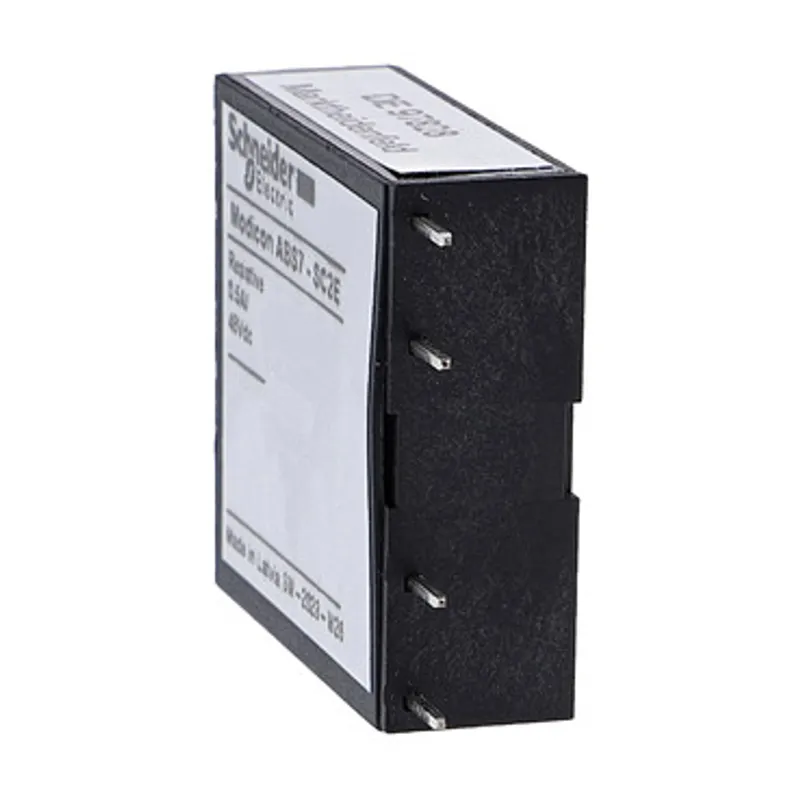

Schneider Electric ABS7SC2E
Plug-in solid state relay - 10 mm - output - 5..48 V DC - 0.5 A
- MPN
- ABS7SC2E
- EAN
- 3389110644791
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABS7SC2E?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a solid-state plug-in output relays for 5VDC to 48VDC prewired sub-bases." "Its response time is less than 0.1ms from state 0 to 1 and less than 0.6ms from state 1 to 0." "It is used to to control the power along with switching the smaller current values in a control circuit." "It is 10mm wide." "It weighs 0.016kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "It is suitable for use with ABE7P16T214, ABE7P16T215, ABE7P16T212, and ABE7P16T210 sub-bases." "It is delivered in 1 package (PCE type) containing 4 units." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Plug-in solid state relay |
| Relay type | Output relay |
| minimum ordered quantity | Set of 4 |
| Response time | <= 0.1 ms from state 0 to 1, <= 0.6 ms from state 1 to 0 |
| Width pitch dimension | 10 mm |
| Product compatibility | ABE7P16T214, ABE7P16T215, ABE7P16T212, ABE7P16T210 |
| Discrete input voltage | 24 V DC |
| Discrete output voltage | 5...48 V DC |
| Discrete output current | 500 mA |
| Current state 0 guaranteed | 0.4 mA DC |
| Current state 1 guaranteed | 2.9 mA DC |
| Voltage state 0 guaranteed | 3.8 V DC |
| Voltage state 1 guaranteed | 18.6 V DC |
| Net weight | 0.016 kg |
Packaging
| Package 1 | 1 PCE, 6.000 cm × 4.400 cm × 3.500 cm (L × W × H), 6.000 g |
| Package 2 | 4 BB1, 6.000 cm × 4.400 cm × 3.500 cm (L × W × H), 29.000 g |
| Package 3 | 128 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.165 kg |
