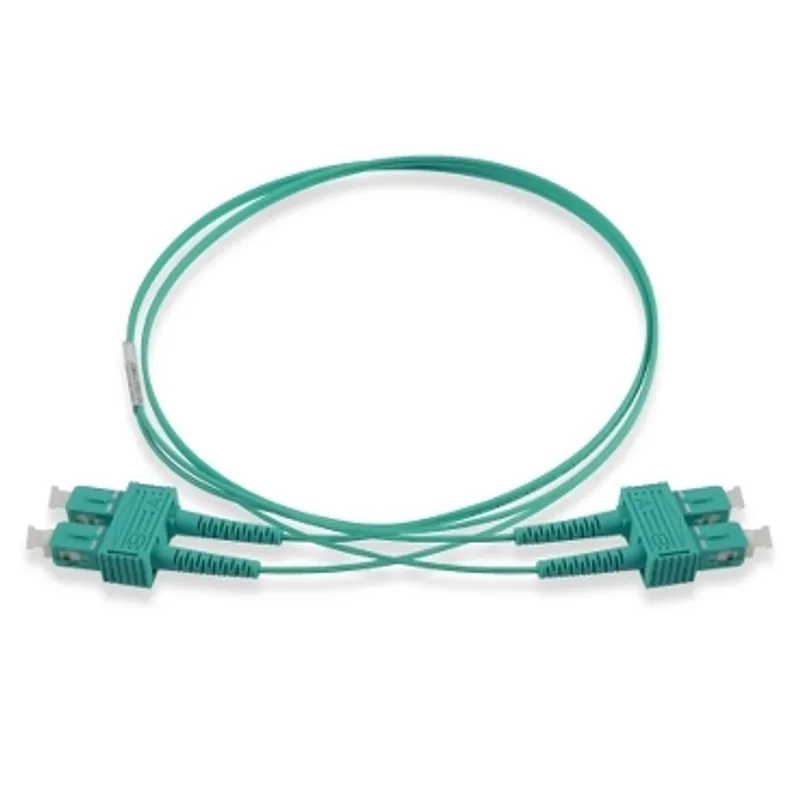

Fibre optic patch cord, Actassi, OM3, SC-SC, duplex, LSZH, 3 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 43 kg |
Shipping & availability
When can ACTFP2C1M35M30 be shipped?
ACTFP2C1M35M30 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACTFP2C1M35M30 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACTFP2C1M35M30 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACTFP2C1M35M30, subject to availability and destination.
This duplex SC fibre patch cord is at length 3 meters and with multimode OM3 optical performance. The cord is available in aqua coloured 1.6 mm mini cordage with two push-pull SC connectors terminated on each end. It is compliant to ANSI/EIA 568-C.3 and ISO/IEC 11801 standards. The patch cord is featured with Low Smoke Zero Halogen (LSZH) sheath compliant to IEC 60332-3C. The patch cord supports LAN, WAN and active device termination. The cord is fully factory terminated and tested. It ensures a reliable and durable optical connection solution.
Specifications
Specifications
| Range | Actassi |
| Product or component type | Multimode fibre optic patchcord |
| Colour | Sheath: aqua, SC duplex housing: aqua, SC duplex boot: aqua, SC duplex clip: aqua |
| Cable packaging | Roll of 3 m |
| Type of packing | Plastic bag |
| Maximum attenuation | 3.5 dB / 1 km at 850 nm, 1.5 dB / 1 km at 1300 nm |
| Bending radius | 32 mm dynamic, 16 mm static |
| Maximum insertion loss | 0.2 dB SC |
| Minimum return loss | 30 dB SC |
| Fibre performance | OM3 50/125 µm |
| Optic fiber diameter | 600 µm |
| Termination 1 | SC |
| Termination 2 | SC |
| Sheath type | Zip 2 x 1.6 mm |
| Condition of use | Patching |
| Exchange mode | Duplex |
| Mode of transmission | Multi mode |
| Number of optic fibre | 2 |
| Width | 3.4 mm |
| Height | 1.6 mm |
| Material | Ceramic: SC connector ferrule, Thermoplastic: SC duplex housing, TPE (thermoplastic elastomer): boot |
| Cable length | 3 m |
| Targeted region | Europe, Asia Pacific. |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for installation | -20…60 °C |
| Ambient air temperature for storage | -20…60 °C |
| Standards | Fibre performance: ITU G.651, Flame retardance: IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034, Fibre performance: IEC 60793-2-10 Type A1a.2, SC connector: TIA/EIA-604-3, SC connector: IEC 61754-4 Ed.2, Fibre performance: ISO/IEC 11801:2011 Ed.2.2 OM3, Fire retardance: IEC 60332-3C, Fibre performance: TIA/EIA-568-C.3, Flame retardance: UL 94 V0 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 43.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.521 kg |
| Warranty (in months) | 18 |
