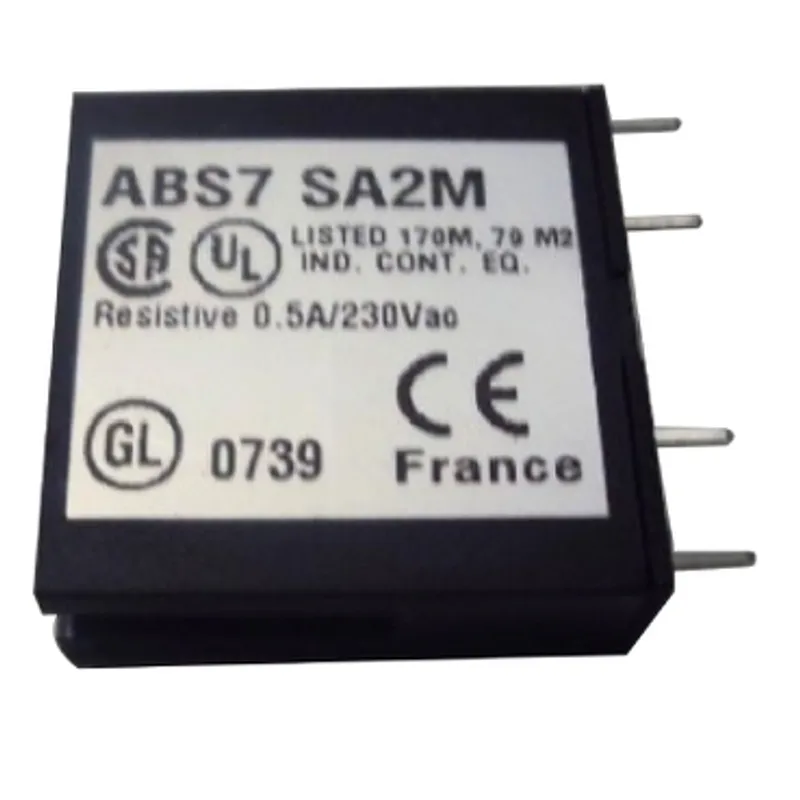

Schneider Electric ABS7SA2M
Plug-in solid state relay - 10 mm - output - 24..240 V AC - 0.5 A
- MPN
- ABS7SA2M
- EAN
- 3389110644777
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABS7SA2M?
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 24VAC to 240VAC prewired sub-bases. Its response time is less than 10ms from state 0 to 1 and less than 10ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 10.0mm wide. It weighs 0.016kg. It is “Ideal for industrial applications needing fast I/O module connections. It is suitable for use with ABE7P16T210, ABE7P16T212, ABE7P16T215, and ABE7P16T214 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Specifications
Specifications
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Plug-in solid state relay |
| Relay type | Output relay |
| minimum ordered quantity | Set of 4 |
| Response time | <= 10 ms from state 0 to 1, <= 10 ms from state 1 to 0 |
| Width pitch dimension | 10 mm |
| Product compatibility | ABE7P16T210, ABE7P16T212, ABE7P16T215, ABE7P16T214 |
| Discrete input voltage | 24 V DC |
| Discrete output voltage | 24...240 V AC |
| Discrete output current | 500 mA |
| Current state 0 guaranteed | 0.4 mA DC |
| Current state 1 guaranteed | 6.5 mA DC |
| Voltage state 0 guaranteed | 2.8 V DC |
| Voltage state 1 guaranteed | 18.6 V DC |
| Net weight | 0.016 kg |
Packaging
| Package 1 | 1 PCE, 5.900 cm × 4.500 cm × 3.300 cm (L × W × H), 7.000 g |
| Package 2 | 4 BB1, 5.900 cm × 4.500 cm × 3.300 cm (L × W × H), 31.000 g |
| Package 3 | 64 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 671.000 g |
