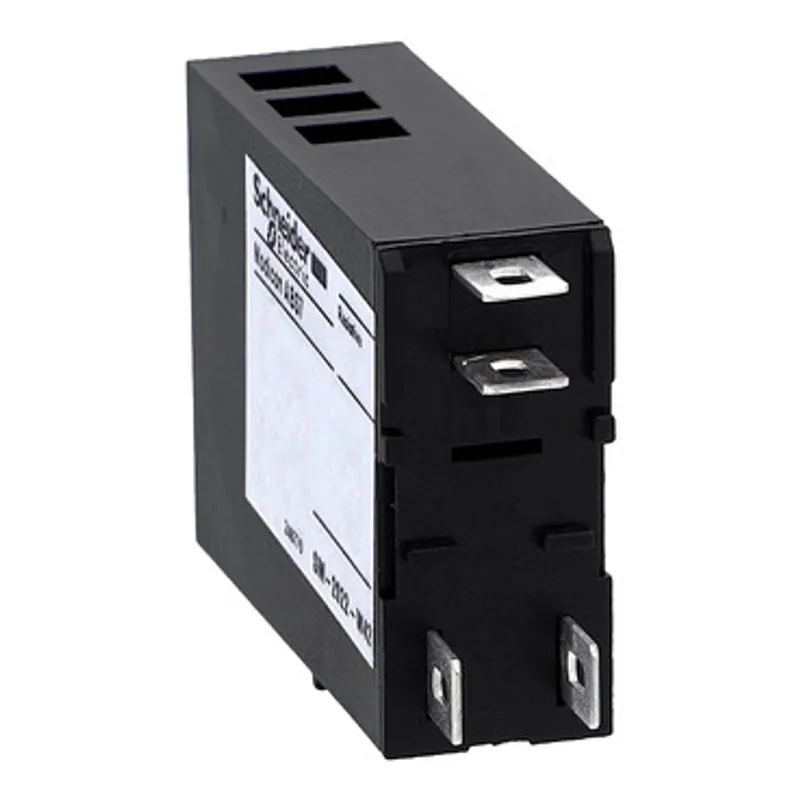

Schneider Electric ABS7EA3M5
Plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ
- MPN
- ABS7EA3M5
- EAN
- 3389110720853
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABS7EA3M5?
This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Plug-in solid state relay |
| Relay type | Input relay |
| minimum ordered quantity | Set of 4 |
| Response time | <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0 |
| Width pitch dimension | 12 mm |
| Product compatibility | ABE7P16F310E, ABE7P16F312, ABE7P16F310 |
| Discrete input voltage | 230...240 V AC 50/60 Hz |
| Discrete output voltage | 5...24 V DC |
| Net weight | 0.014 kg |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 3.200 cm × 1.500 cm (L × W × H), 11.000 g |
| Package 2 | 4 BB1, 9.700 cm × 8.000 cm × 7.000 cm (L × W × H), 72.000 g |
| Package 3 | 64 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.494 kg |
