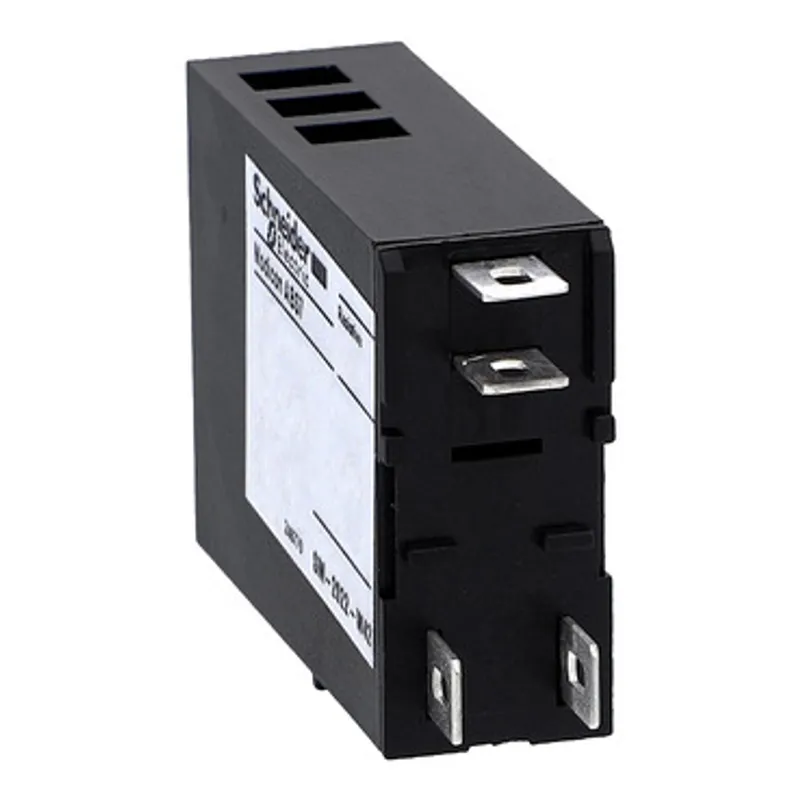

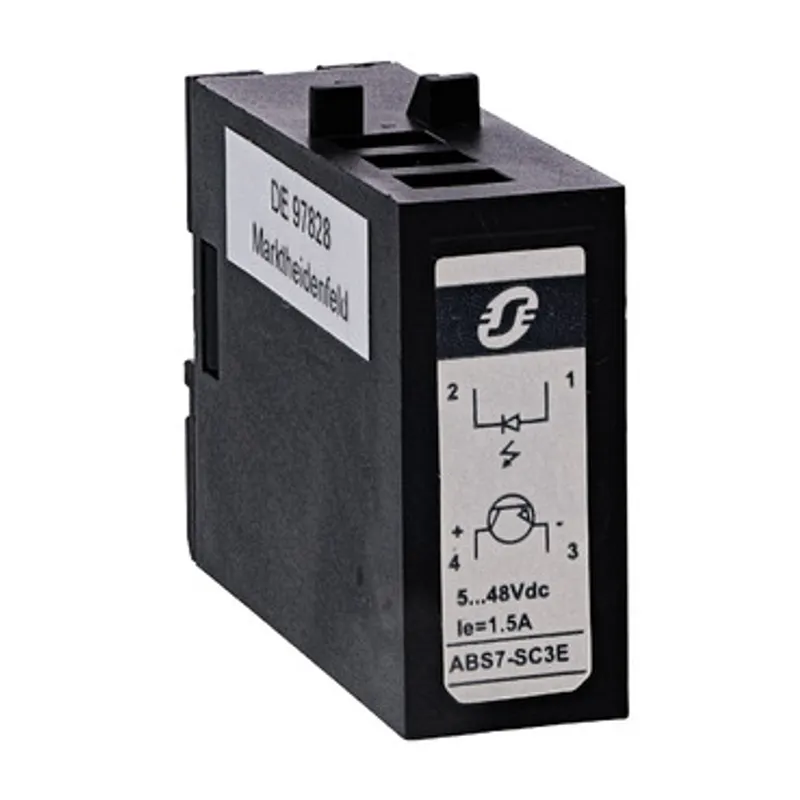

Schneider Electric ABS7SC3E
Plug-in solid state relay - 12.5 mm - output - 5..48 V DC - 2 A
- MPN
- ABS7SC3E
- EAN
- 3389110720778
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original ABS7SC3E (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABS7SC3E?
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 5VDC to 48VDC prewired sub-bases. Its response time is less than 0.1ms from state 0 to 1 and less than 0.6ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 12.5mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7R16T332, ABE7P16T330E, ABE7P16T330, ABE7P16T318, ABE7R16T330, and ABE7P16T318E sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Specifications
Specifications
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Plug-in solid state relay |
| Relay type | Output relay |
| minimum ordered quantity | Set of 4 |
| Response time | <= 0.1 ms from state 0 to 1, <= 0.6 ms from state 1 to 0 |
| Width pitch dimension | 12 mm |
| Product compatibility | ABE7R16T332, ABE7P16T330E, ABE7P16T330, ABE7P16T318, ABE7R16T330, ABE7P16T334, ABE7P16T318E |
| Discrete input voltage | 24 V DC |
| Discrete output voltage | 5...48 V DC |
| Discrete output current | 1500 mA |
| Current state 0 guaranteed | 0.4 mA DC |
| Current state 1 guaranteed | 2.9 mA DC |
| Voltage state 0 guaranteed | 3.8 V DC |
| Voltage state 1 guaranteed | 18.6 V DC |
| Net weight | 0.016 kg |
Packaging
| Package 1 | 1 PCE, 6.5 cm × 5.2 cm × 5.0 cm (L × W × H), 15.0 g |
| Package 2 | 4 BB1, 6.5 cm × 5.2 cm × 5.0 cm (L × W × H), 61.0 g |
| Package 3 | 64 S01, 40.0 cm × 15.0 cm × 15.0 cm (L × W × H), 1.198 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABS7SC3E: frequently asked questions
Can I still buy the ABS7SC3E now that it is discontinued?
Yes. Schneider Electric has discontinued the ABS7SC3E, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can ABS7SC3E be shipped?
ABS7SC3E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABS7SC3E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABS7SC3E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABS7SC3E, subject to availability and destination.
