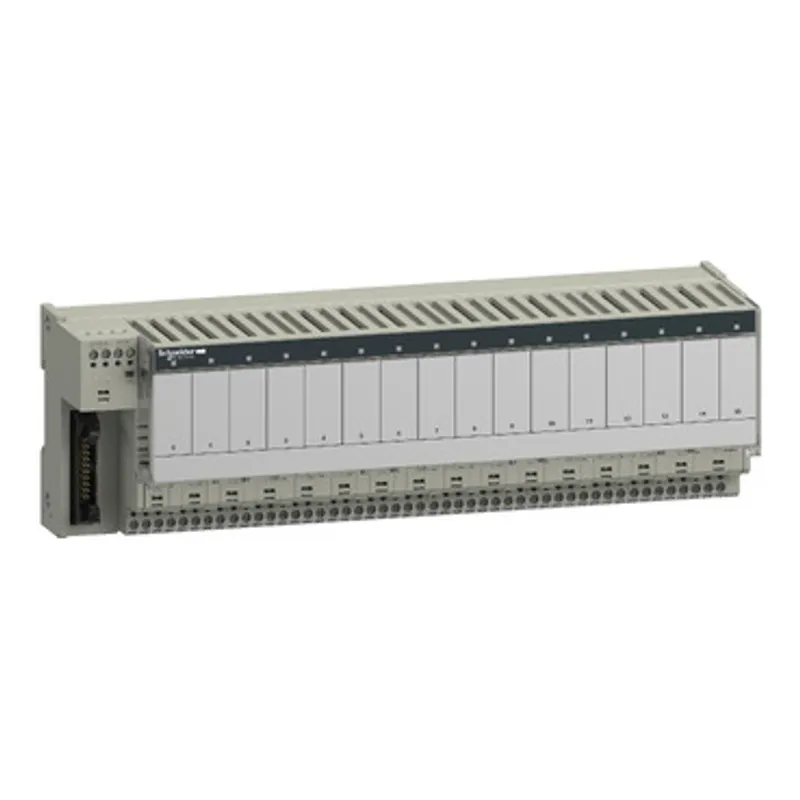

Schneider Electric ABE7P16T334
Sub-base for plug-in relay ABE7 - 16 channels - fuses - relay 12.5 mm
- MPN
- ABE7P16T334
- EAN
- 3389110705157
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7P16T334?
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.9kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABS7A3M, ABE7ACC21, ABS7SC3E and ABR7S33 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| supply voltage type | DC |
| Product compatibility | ABS7A3M, ABE7ACC21, ABS7SC3E, ABR7S33, ABS7SC3.. |
| Status LED | 1 LED per channel (green) channel status, 1 LED (green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end), 2 A fuse per channel, 5 x 20 mm, fast blow (output circuit) |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits conforming to IEC 60947-1, 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.9 kg |
| Product certifications | CSA, DNV, UL, GL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 29.300 cm × 10.000 cm × 8.500 cm (L × W × H), 875.000 g |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.736 kg |
