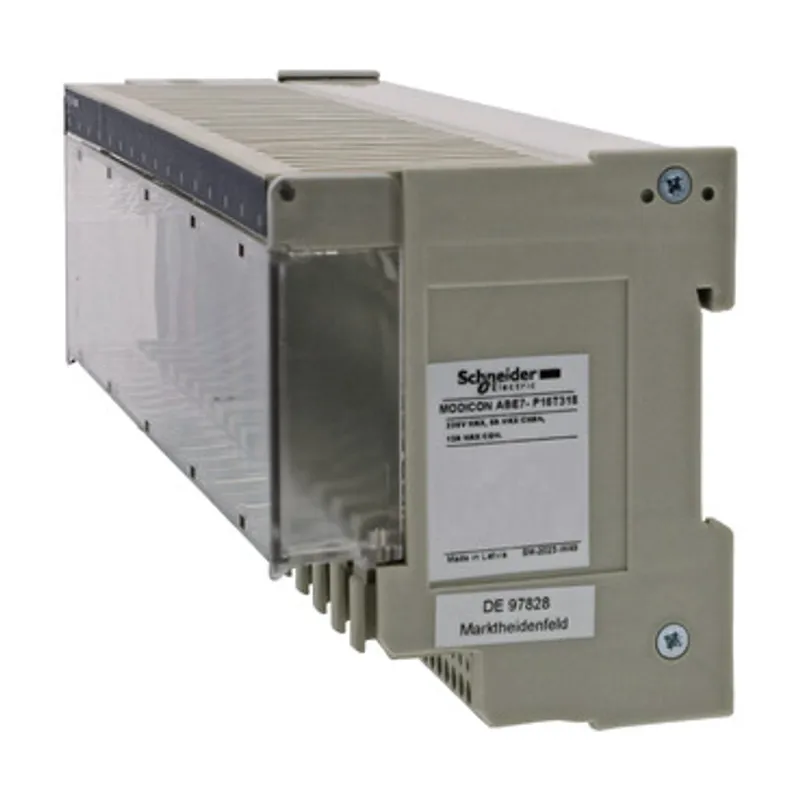

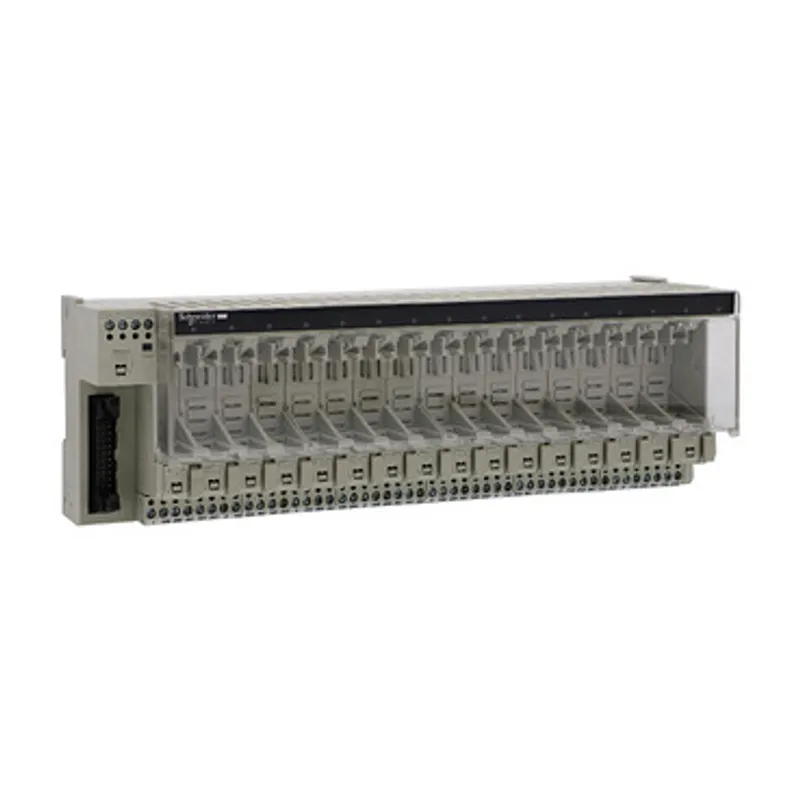

Schneider Electric ABE7P16T318
Sub-base for plug-in relay ABE7 - 16 channels - fuses - isolator - relay 12.5 mm
- MPN
- ABE7P16T318
- EAN
- 3389110705126
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7P16T318?
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug in relay sub-base offers 1 switch disconnector per channel. The output sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 1kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Channel additional information | 1 switch disconnector per channel |
| supply voltage type | DC |
| Product compatibility | ABS7SC3E, ABS7A3M, ABE7ACC21, ABR7S33, ABS7SC3.. |
| Status LED | 1 LED per channel (green) channel status, 1 LED (green) power ON |
| Polarity distribution | Polarity distribution contact common per 2 groups of 4 channels |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end), 2 A fuse per channel, 5 x 20 mm, fast blow (output circuit) |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits conforming to IEC 60947-1, 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 272 mm |
| Height | 89 mm |
| Depth | 74 mm |
| Net weight | 1 kg |
| Product certifications | CSA, UL, GL, DNV, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 29.2 cm × 9.7 cm × 8.5 cm (L × W × H), 905.0 g |
| Package 2 | 6 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 5.985 kg |
