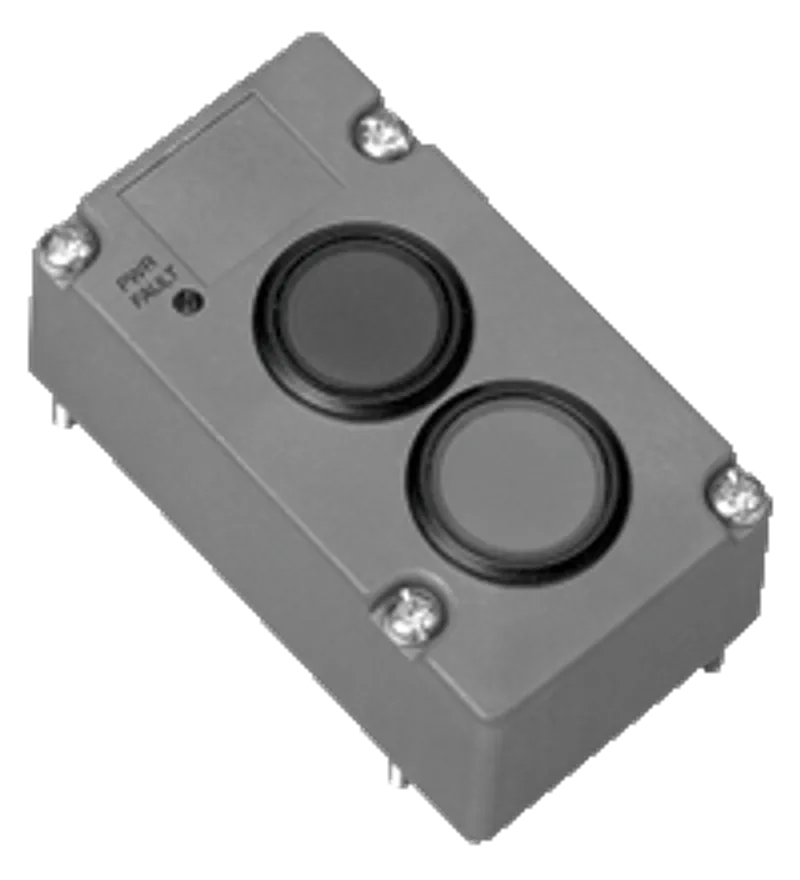

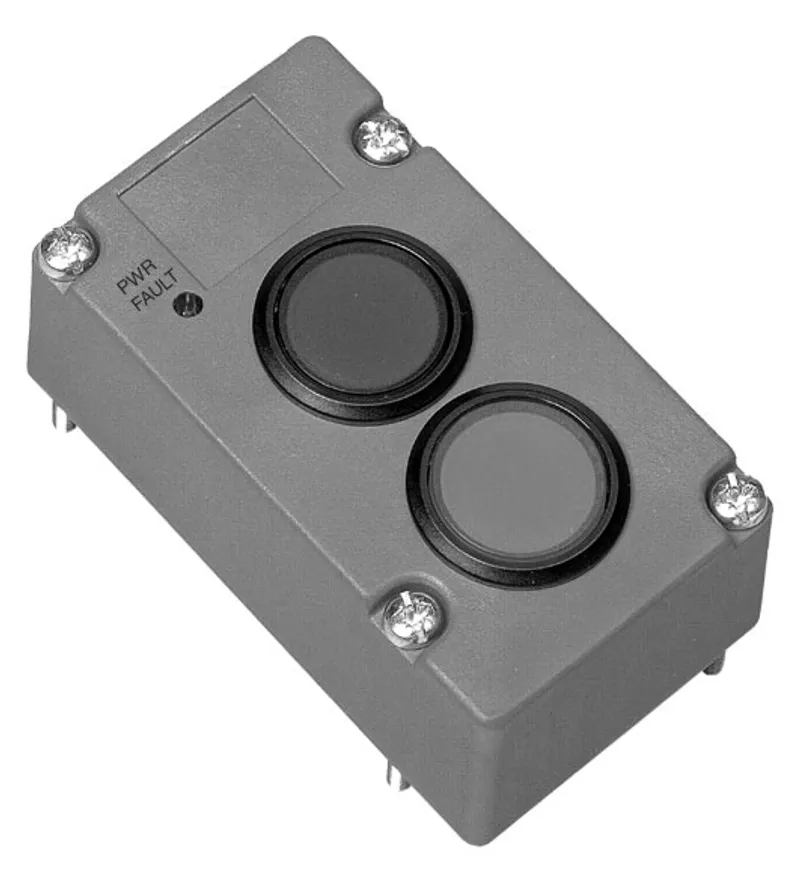

Pepperl Fuchs VBA-LT2-G1-2YE
AS-Interface luminous push-button module
- MPN
- VBA-LT2-G1-2YE
- Category
- Safety at Work
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs VBA-LT2-G1-2YE?
AS-Interface certificate
Degree of protection IP67
Flat or round cable connection (via standardized EMS base, not included with delivery)
Cable piercing method for flat cable
2 integrated yellow illuminated pushbuttons
Fault signal via LED
Illuminated pushbutton module
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 303966 |
| Node type | A/B node |
| AS-Interface specification | V2.11 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-B.A.E |
| IO code | B |
| ID code | A |
| ID2 code | E |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED PWR/FAULT | dual-LED green/red green: AS-Interface voltage, normal operation red: communication error or address 0 |
| Button | 2 integrated, protected against accidental activation, keys can be individually labelled, labeling field on the module |
Electrical specifications
| Rated operating voltage | 26.5 ... 31.6 V from AS-Interface Ue |
| Rated operating current | ≤ 50 mA (LEDs on) Ie |
| Protection class | III |
Standard conformity
| Electromagnetic compatibility | EN 62026-2:2015 |
| Degree of protection | EN 60529:2000 |
| AS-Interface | EN 62026-2:2013 |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

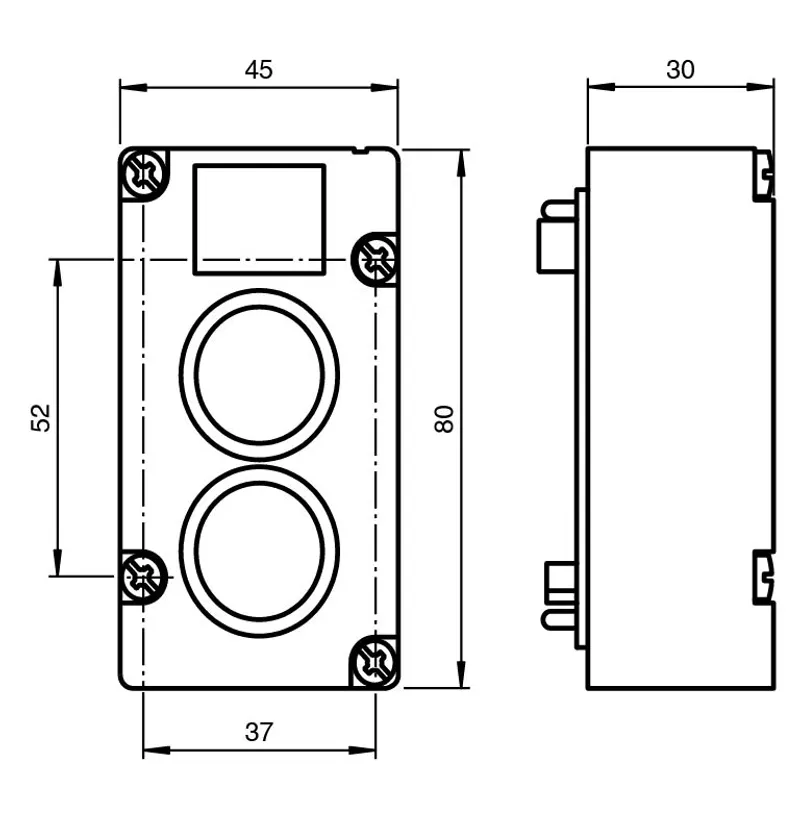

Mechanical specifications
| Degree of protection | IP67 according to EN 60529 |
| Connection | cable piercing method or terminal compartment flat cable or standard round cable |
