Pepperl Fuchs PGV-CTPB-4x4

Name: Pepperl Fuchs PGV-CTPB-4x4
Brand: Pepperl Fuchs
SKU: PGV-CTPB-4x4

MPN: PGV-CTPB-4x4 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Camera-Based Track Guidance
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can PGV-CTPB-4x4 be shipped?

PGV-CTPB-4x4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PGV-CTPB-4x4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PGV-CTPB-4x4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PGV-CTPB-4x4, subject to availability and destination.

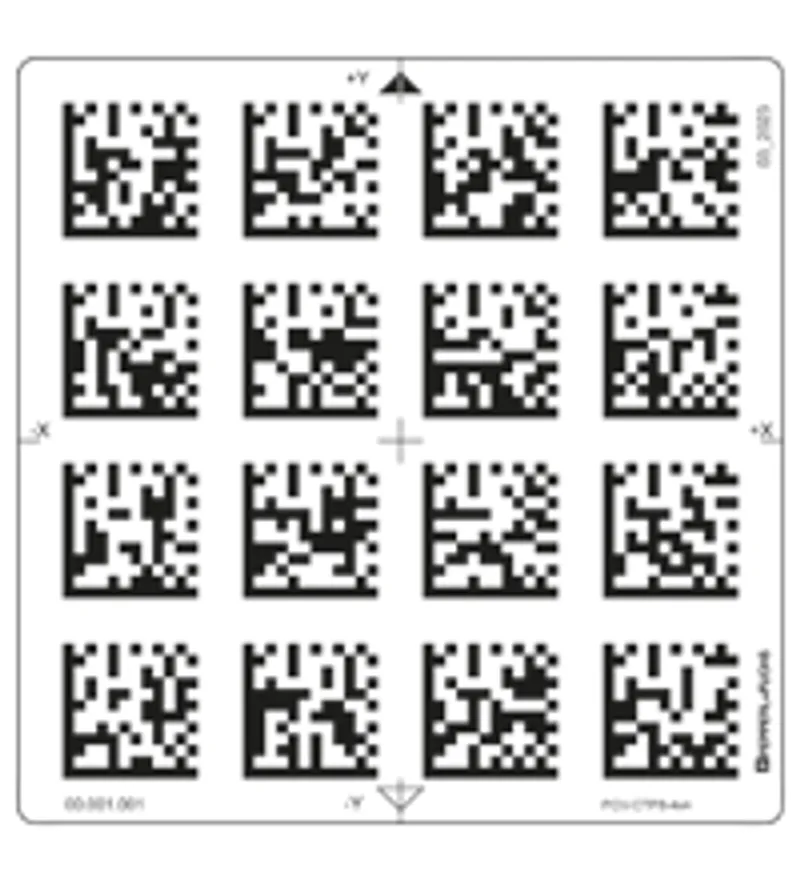

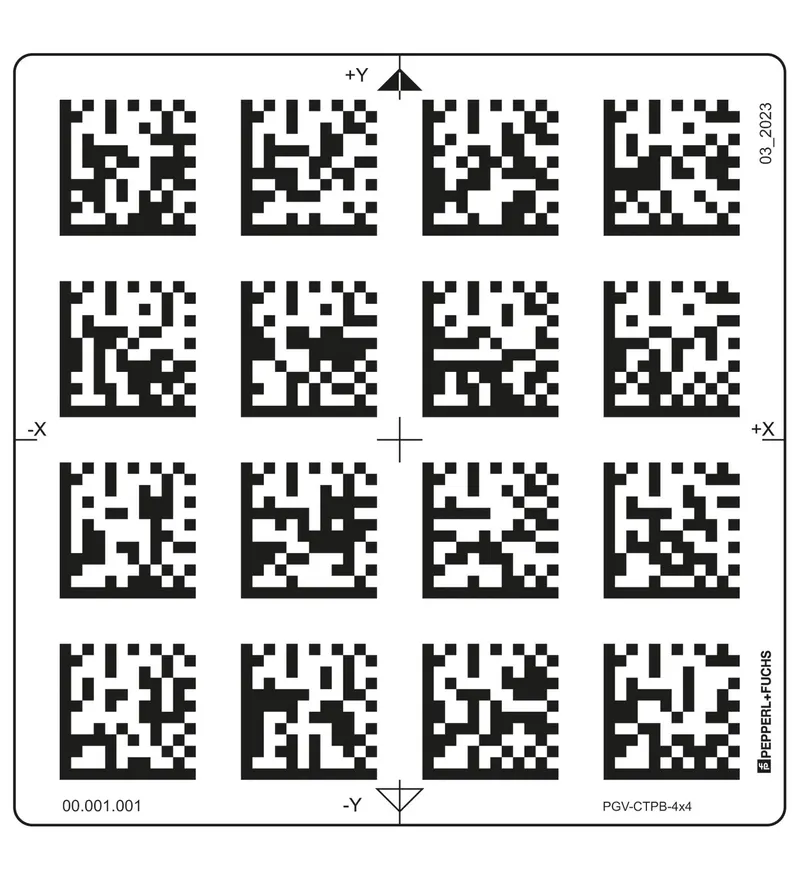

Polyester Data Matrix tag. Self-adhesive polyester Data Matrix tag, backprinted, for the PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Resistant against UV light. Number interval: 1 ... 99999999 = Tag number (see Order Information). Light type: red blue/white infrared. Operating temperature: -40 ... 95 °C (-40 ... 203 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 0.2 mm. Material: polyester. Mass: 3.2 g. Storage: Maximum 2 years under normal storage conditions.. Adhesive: Acrylate-based adhesive ; curing 72 h. Adhesive strength: Average values (FTM2) Metal (stainless steel, aluminum) : 33 N / 25 mm ABS : 32 N / 25 mm PP : 31 N / 25 mm. Note: To achieve a good adhesive bond, the material surfaces being glued must be completely dry and clean. Grease-free solvents such as n-Heptane and isopropyl alcohol are recommended for cleaning. Bonding should be carried out using the highest possible pressure and at a temperature of at least +10 °C. The higher the pressure and temperature, the better the adhesive will penetrate the pores of the base material, resulting in higher adhesive strength.. Ordering information: see additional information On the next page

Specifications

General specifications

Number interval	1 ... 99999999 = Tag number (see Order Information)
Light type	red blue/white infrared

Ambient conditions

Operating temperature	-40 ... 95 °C (-40 ... 203 °F)
Installation temperature	10 ... 40 °C (50 ... 104 °F)
Environmental resistance	UV radiation Humidity
Chemical resistance	Oils Grease Fuels Aliphatic solvents Weak acids

Mechanical specifications

Material thickness	0.2 mm
Material	polyester
Mass	3.2 g
Storage	Maximum 2 years under normal storage conditions.
Adhesive	Acrylate-based adhesive ; curing 72 h
Adhesive strength	Average values (FTM2) Metal (stainless steel, aluminum) : 33 N / 25 mm ABS : 32 N / 25 mm PP : 31 N / 25 mm
Note	To achieve a good adhesive bond, the material surfaces being glued must be completely dry and clean. Grease-free solvents such as n-Heptane and isopropyl alcohol are recommended for cleaning. Bonding should be carried out using the highest possible pressure and at a temperature of at least +10 °C. The higher the pressure and temperature, the better the adhesive will penetrate the pores of the base material, resulting in higher adhesive strength.
