Pepperl Fuchs PGV-MG30-START-END-SET

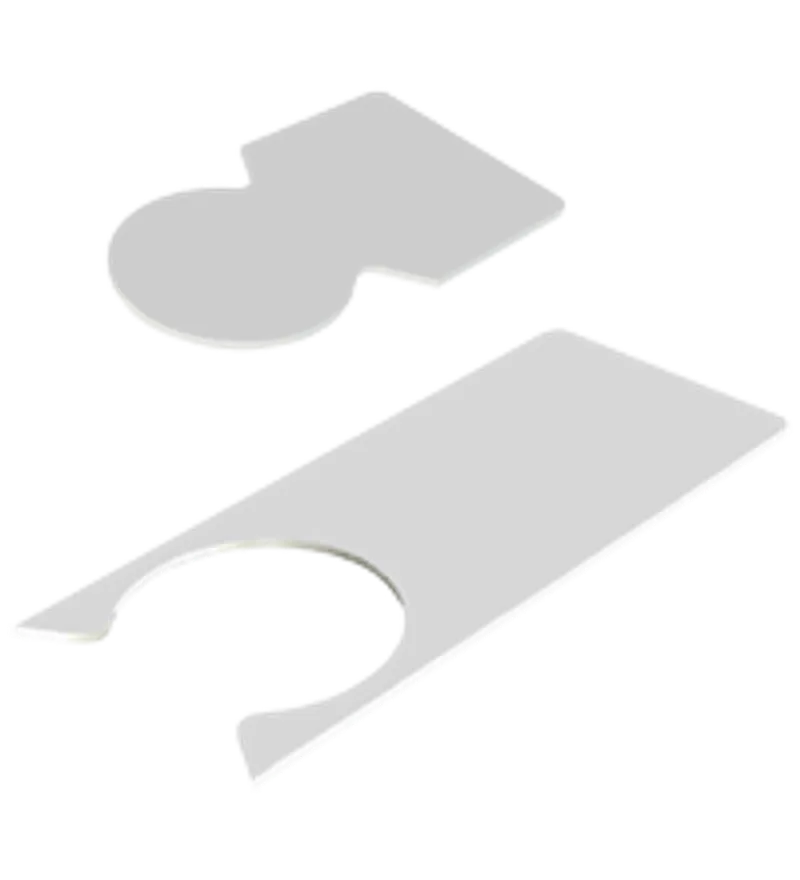

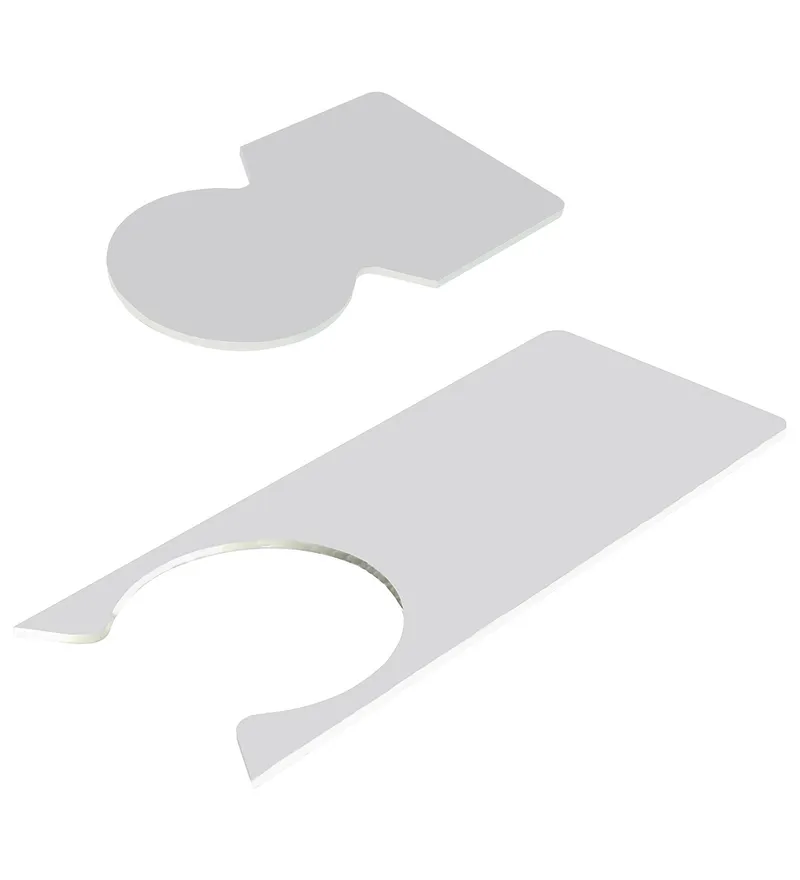

Opening segment and closing segment (kit)

MPN: PGV-MG30-START-END-SET
Category: Camera-Based Track Guidance

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs PGV-MG30-START-END-SET?

High temperature resistance

High mechanical stability

Easily exchangeable

Chemically highly resistant

High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resistant

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70137233

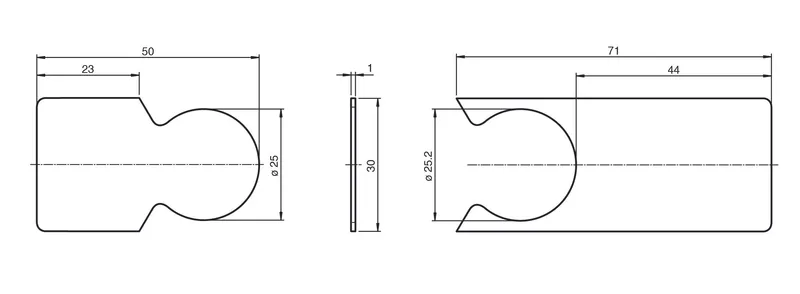

Length	Opening segment: 50 mm Closing segment: 71 mm
Width	30 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Operating temperature	-40 ... 80 °C (-40 ... 176 °F)
Installation temperature	10 ... 40 °C (50 ... 104 °F)
Environmental resistance	UV radiation Humidity
Chemical resistance	Oils Grease Fuels Aliphatic solvents Weak acids

Mechanical specifications

Material thickness	1 mm
Material	Aluminum

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet PGV-MG30-START-END-SETPDF
