Pepperl Fuchs PGV-CCM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Camera-Based Track Guidance |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PGV-CCM be shipped?
PGV-CCM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PGV-CCM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PGV-CCM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PGV-CCM, subject to availability and destination.

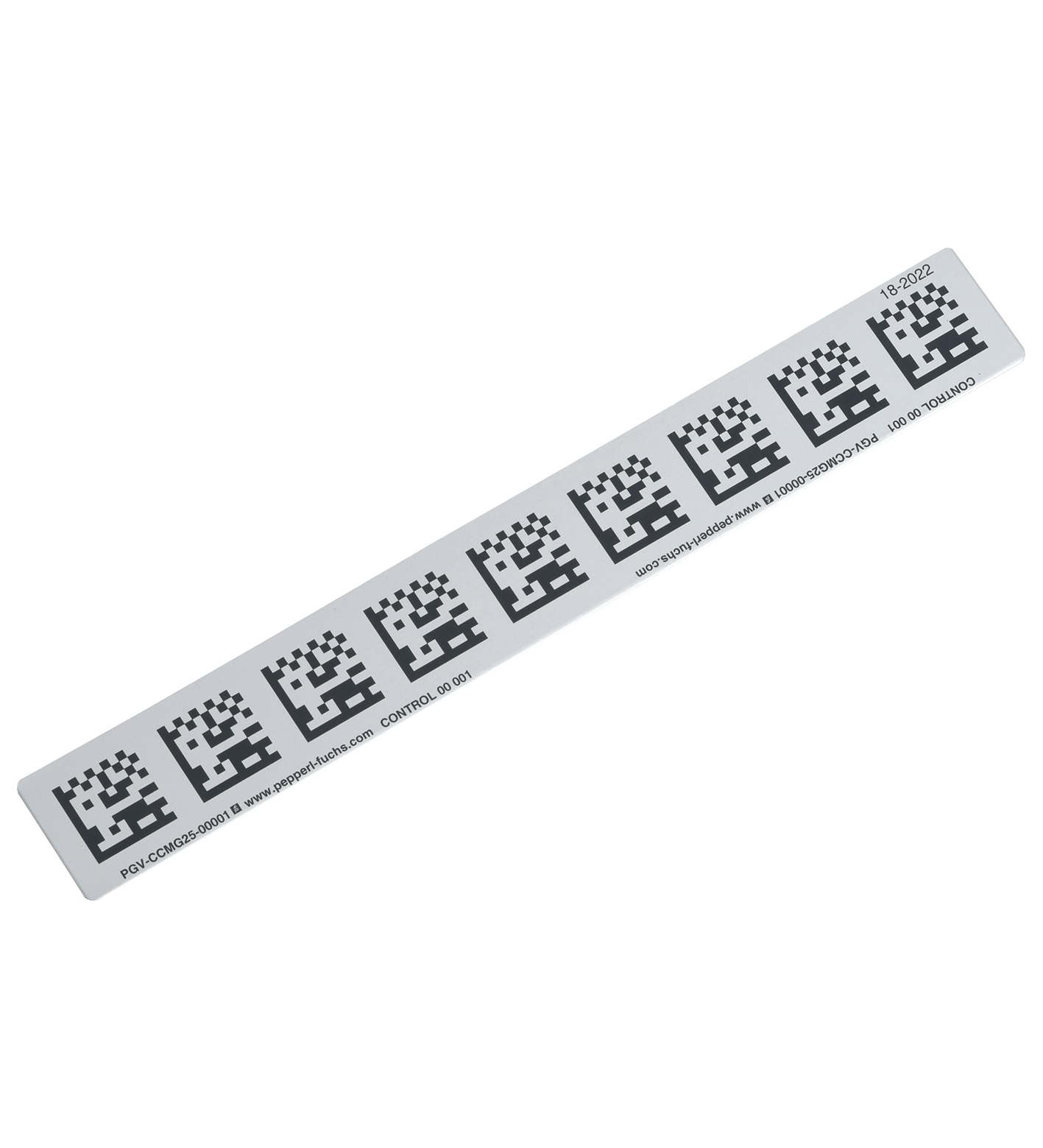

Metal control code bar. Metal control code bar for PGV System, High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resistant. Start value: 1 ... 999. Number: 1 ... 999. Code bar segment: . Nominal segment length100 mm200 mm500 mmWidth25 mm: . Nominal segment length: 100 mm200 mm500 mm. Width: 25 mm. Operating temperature: -40 ... 80 °C (-40 ... 176 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 1 mm. Material: Aluminum. Mounting type: adhesive screwing. Mass: 83 g / m. Manufacturing tolerance: ± 1 mm/m. Storage: Maximum 2 years under normal storage conditions.
Specifications
General specifications
| Start value | 1 ... 999 |
| Number | 1 ... 999 |
| Code bar segment | |

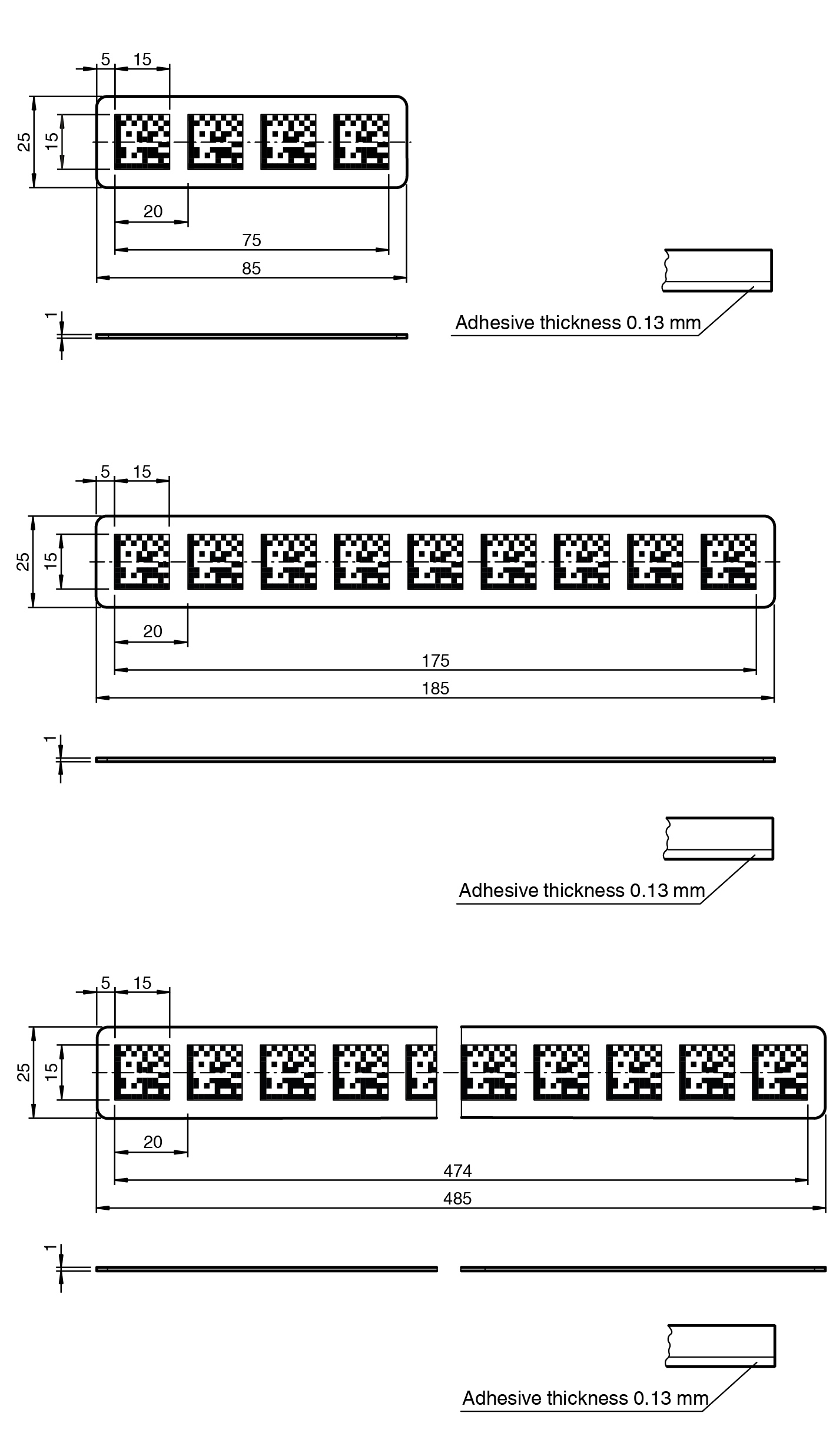

| Nominal segment length100 mm200 mm500 mmWidth25 mm | Nominal segment length |
| Nominal segment length | 100 mm200 mm500 mm |
| Width | 25 mm |
Ambient conditions
| Operating temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 1 mm |
| Material | Aluminum |
| Mounting type | adhesive screwing |
| Mass | 83 g / m |
| Manufacturing tolerance | ± 1 mm/m |
| Storage | Maximum 2 years under normal storage conditions. |
