Camera-Based Track Guidance Parts
Compare Camera-Based Track Guidance
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Material thickness | Material | Mass | Width |
|---|---|---|---|---|---|

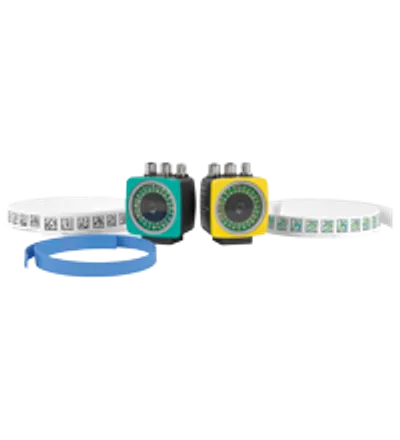

| PGV100A-F200A-B28-V1D-SET | 317670 | — | — | — | — |

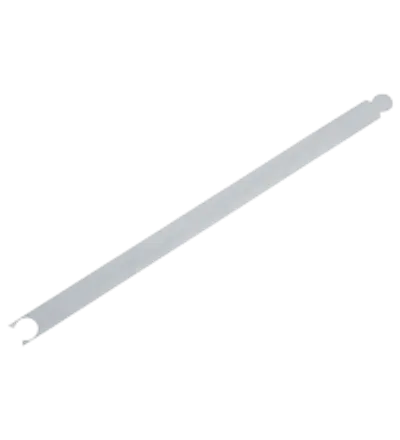

| PGV-PR-PROTECT500 | 70162490 | 1 mm | PVC | — | — |

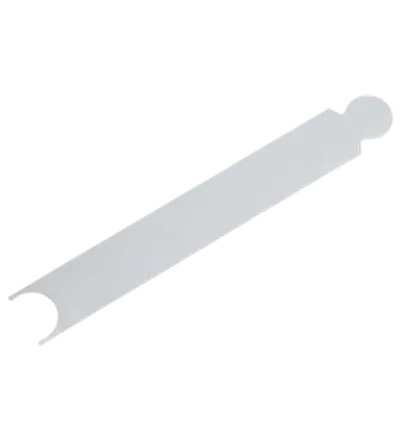

| PGV-PR-PROTECT200 | 70162489 | 1 mm | PVC | — | — |

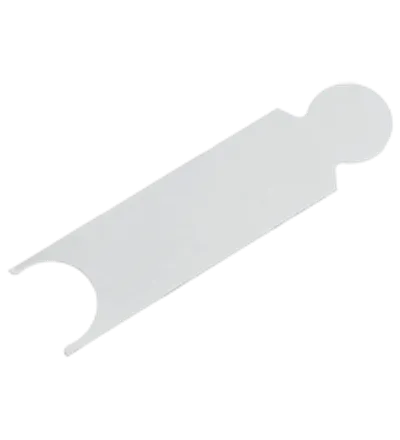

| PGV-PR-PROTECT100 | 70162488 | 1 mm | PVC | — | — |

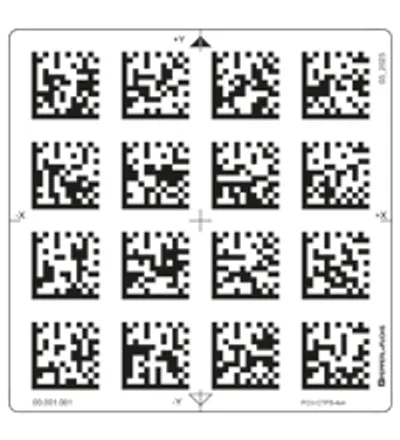

| PGV-CTPB-4x4 | 70160895 | 0.2 mm | polyester | 3.2 g | — |

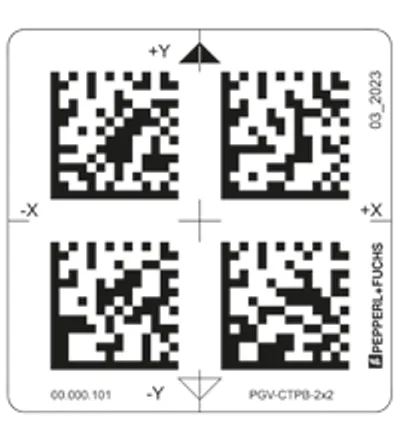

| PGV-CTPB-2x2 | 70160896 | 0.2 mm | polyester | 0.9 g | — |

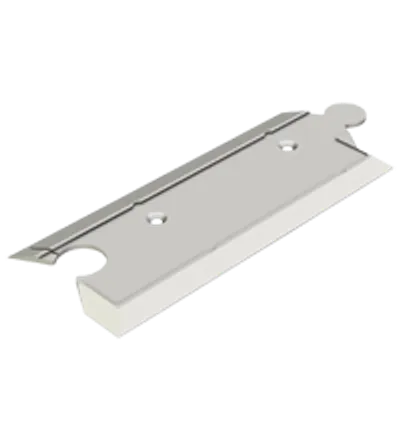

| PGV-PR-SM-CONTROL200R | 70151829 | 4 mm | AlMg4.5Mn0.7 | 119 g | 85 mm |

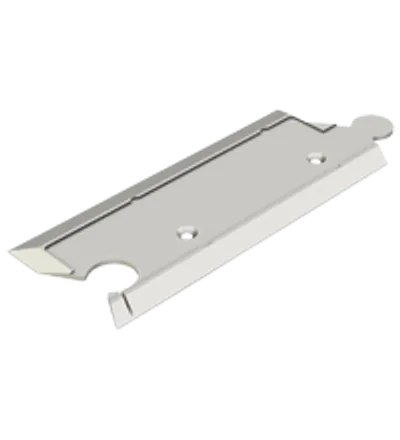

| PGV-PR-SM-CONTROL200L | 70151828 | 4 mm | AlMg4.5Mn0.7 | 119 g | 85 mm |

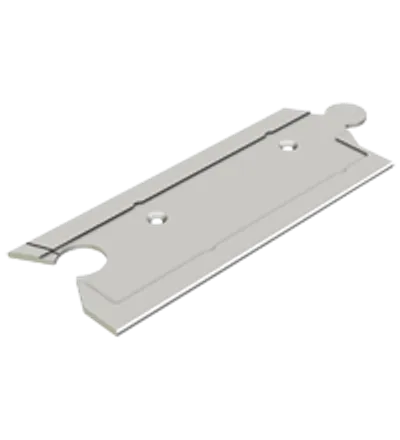

| PGV-PR-GM-CONTROL200R | 70151827 | 4 mm | AlMg4.5Mn0.7 | 143 g | 85 mm |

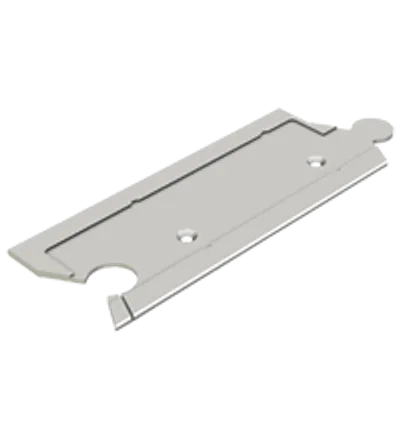

| PGV-PR-GM-CONTROL200L | 70151826 | 4 mm | AlMg4.5Mn0.7 | 143 g | 85 mm |

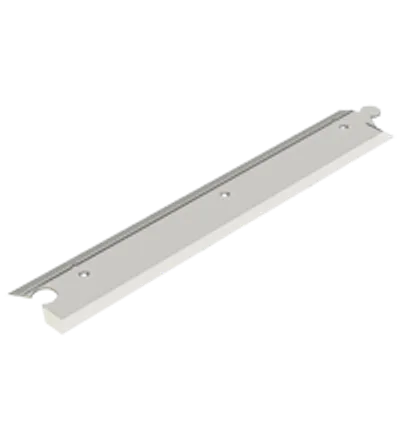

| PGV-PR-SM-CONTROL500R | 70151825 | 4 mm | AlMg4.5Mn0.7 | 300 g | 85 mm |

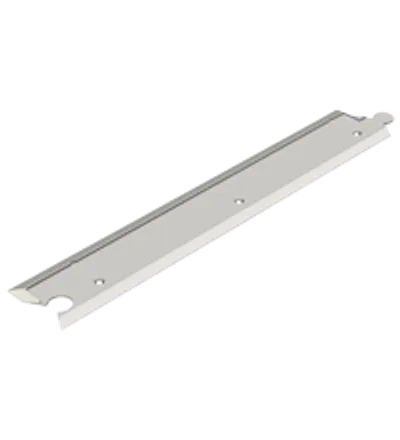

| PGV-PR-SM-CONTROL500L | 70145555 | 4 mm | AlMg4.5Mn0.7 | 300 g | 85 mm |
| PGV-PR-GM-CONTROL500R | 70144672 | 4 mm | AlMg4.5Mn0.7 | 357 g | 85 mm |

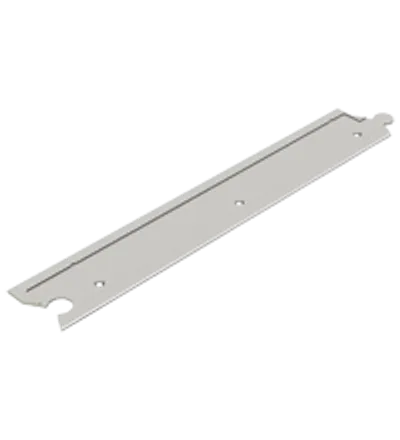

| PGV-PR-GM-CONTROL500L | 70132462 | 4 mm | AlMg4.5Mn0.7 | 357 g | 85 mm |

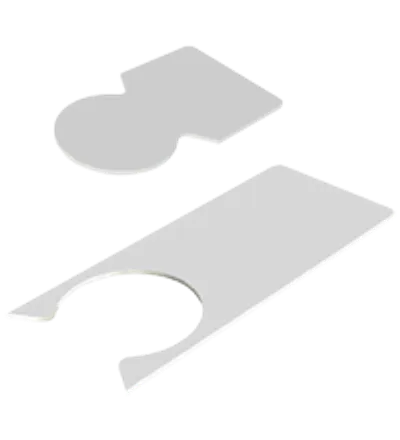

| PGV-MG30-START-END-SET | 70137233 | 1 mm | Aluminum | — | 30 mm |

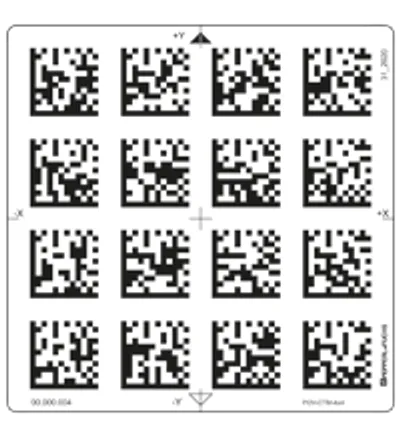

| PGV-CTM-4x4 | 70127528 | 0.5 mm | Aluminum | 11 g | — |

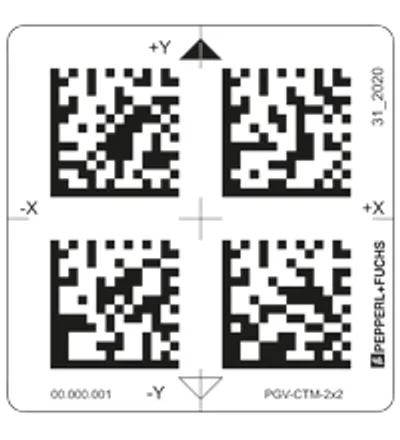

| PGV-CTM-2x2 | 70127529 | 0.5 mm | Aluminum | 3 g | — |

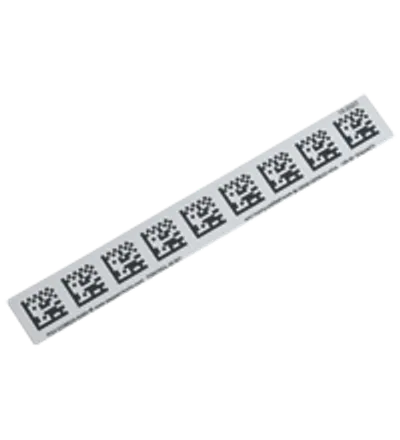

| PGV-CCM | 70127565 | 1 mm | Aluminum | 83 g / m | — |
| PGV-PP-SM-TAGM4x4 | 70132461 | 4 mm | AlMg4.5Mn0.7 | 112 g | 120 mm |

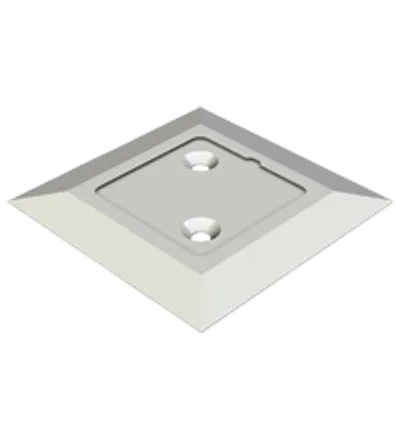

| PGV-PP-SM-TAGM2x2 | 70143232 | 4 mm | AlMg4.5Mn0.7 | 46 g | 80 mm |

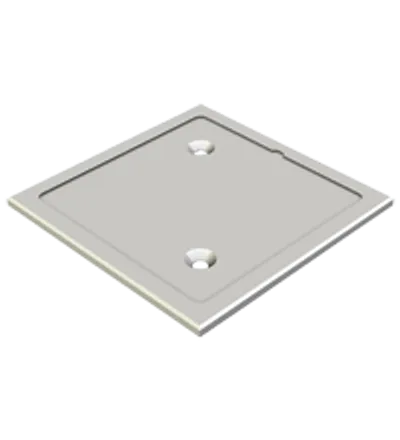

| PGV-PP-GM-TAGM4x4 | 70132459 | 4 mm | AlMg4.5Mn0.7 | 90 g | 100 mm |
| PGV-PP-GM-TAGM2x2 | 70143231 | 4 mm | AlMg4.5Mn0.7 | 33 g | 60 mm |

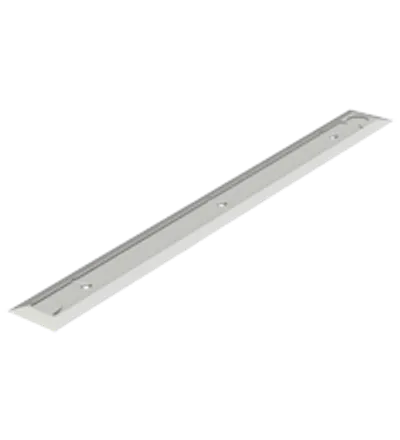

| PGV-PR-SM-CLOSE500 | 70143506 | 4 mm | AlMg4.5Mn0.7 | 230 g | 60 mm |

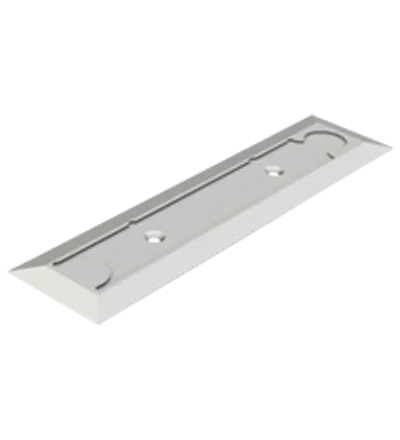

| PGV-PR-SM-CLOSE200 | 70143502 | 4 mm | AlMg4.5Mn0.7 | 105 g | 60 mm |
