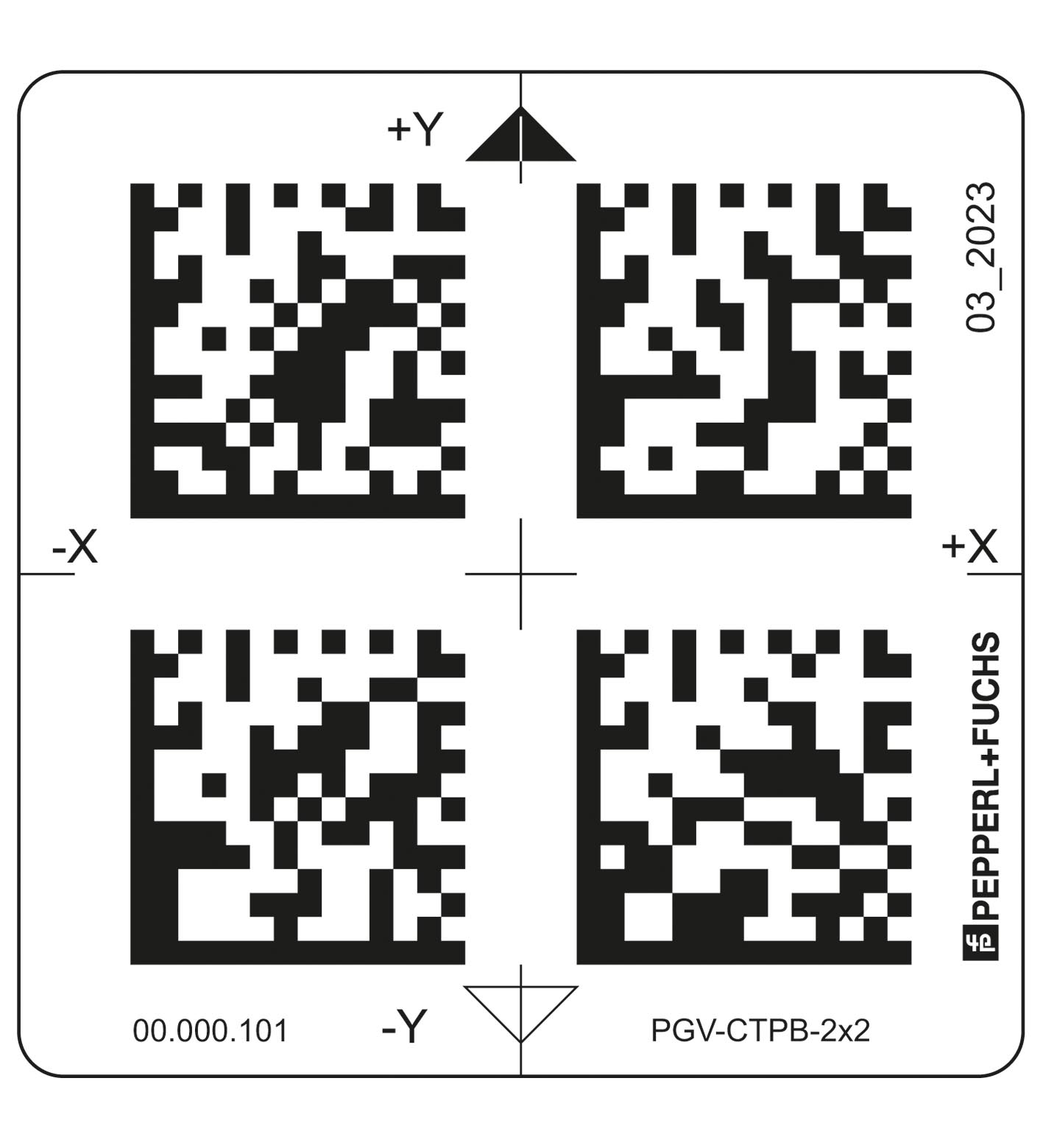

Pepperl Fuchs PGV-CTPB-2x2
Polyester Data Matrix tag
- MPN
- PGV-CTPB-2x2
- Category
- Camera-Based Track Guidance
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs PGV-CTPB-2x2?
High chemical resistance
Low weight
Self-adhesive mounting
High temperature resistance
Resistant against UV light
Self-adhesive polyester Data Matrix tag, backprinted, for the PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Resistant against UV light
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70160896 |
| Number interval | 1 ... 99999999 = Tag number (see order information) |
| Light type | red blue/white infrared |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Operating temperature | -40 ... 95 °C (-40 ... 203 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |

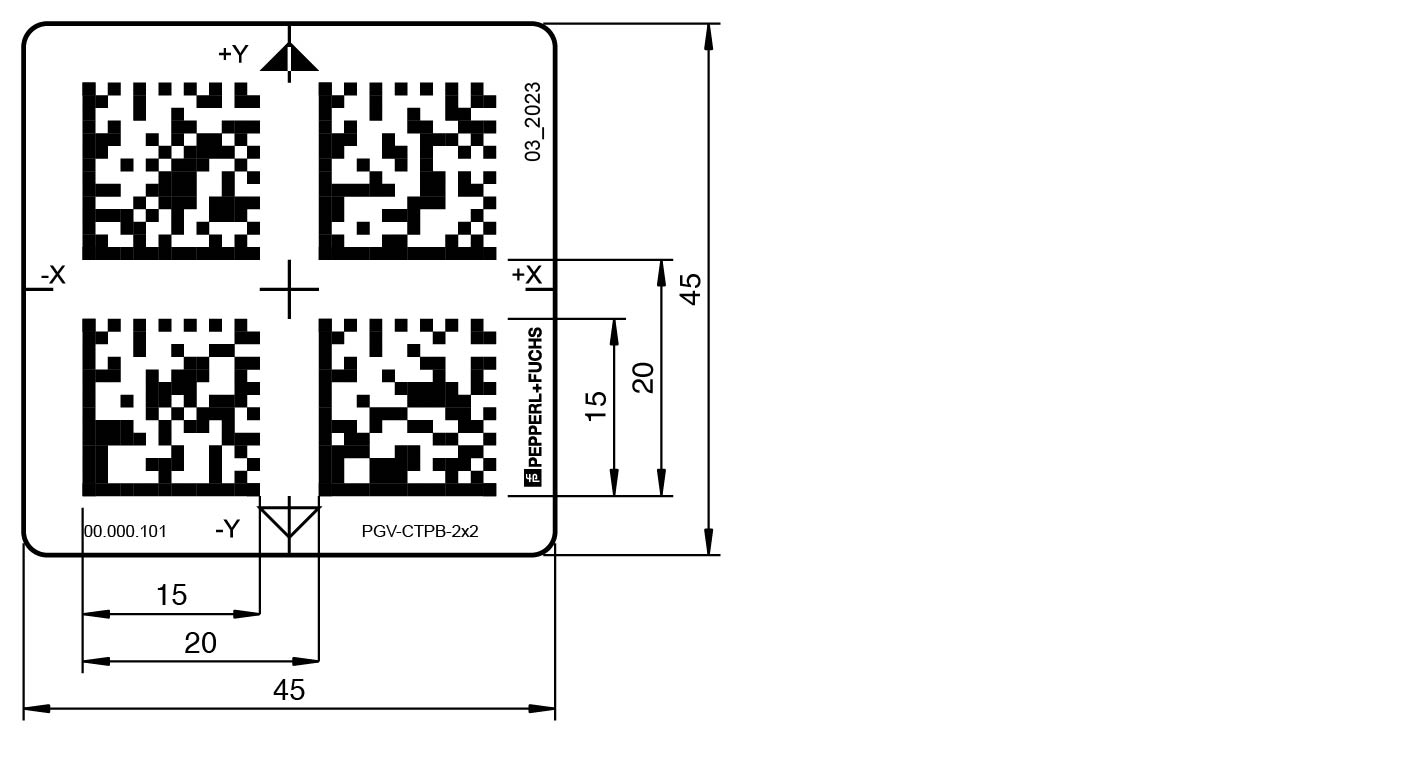

Mechanical specifications
| Material thickness | 0.2 mm |
| Material | polyester |
| Mass | 0.9 g |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) Metal (stainless steel, aluminum) : 33 N / 25 mm ABS : 32 N / 25 mm PP : 31 N / 25 mm |
| Note | To achieve a good adhesive bond, the material surfaces being glued must be completely dry and clean. Grease-free solvents such as n-Heptane and isopropyl alcohol are recommended for cleaning. Bonding should be carried out using the highest possible pressure and at a temperature of at least +10 °C. The higher the pressure and temperature, the better the adhesive will penetrate the pores of the base material, resulting in higher adhesive strength. |
General information
| Order information | see additional information On the next page |
