Pepperl Fuchs PGV-CAM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Camera-Based Track Guidance |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PGV-CAM be shipped?
PGV-CAM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PGV-CAM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PGV-CAM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PGV-CAM, subject to availability and destination.

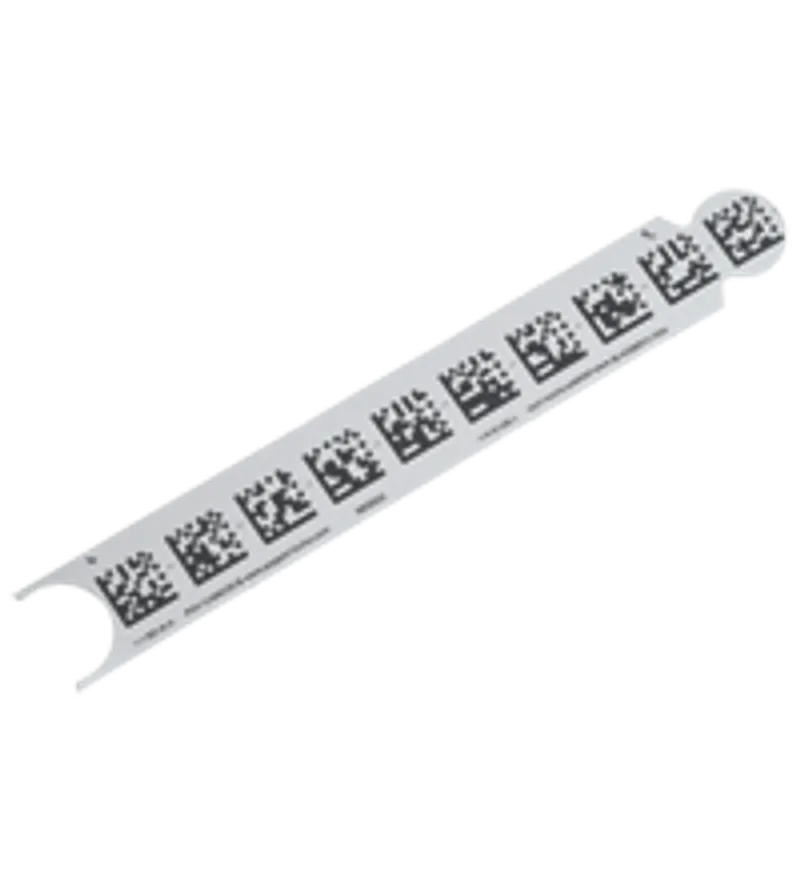

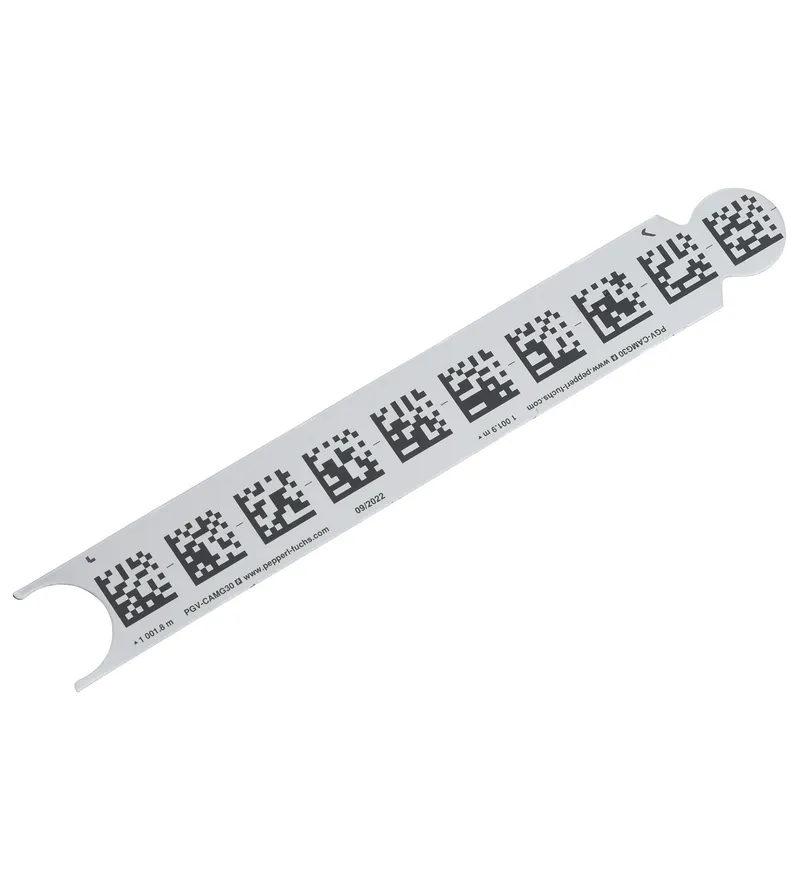

Metal code bar. Data Matrix metal code bars for positioning PGV read heads, High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resistant. Total length: 1 ... 10000 m. Start position: 1 ... 9999 m. Code bar segment: . Nominal segment length: 100 mm200 mm500 mm. Width: 30 mm50 mm. Operating temperature: -40 ... 80 °C (-40 ... 176 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 1 mm. Material: Aluminum. Mounting type: adhesive screwing. Mass: 83 g / m. Manufacturing tolerance: ± 1 mm/m. Storage: Maximum 2 years under normal storage conditions.
Specifications
General specifications
| Total length | 1 ... 10000 m |
| Start position | 1 ... 9999 m |
| Code bar segment | |

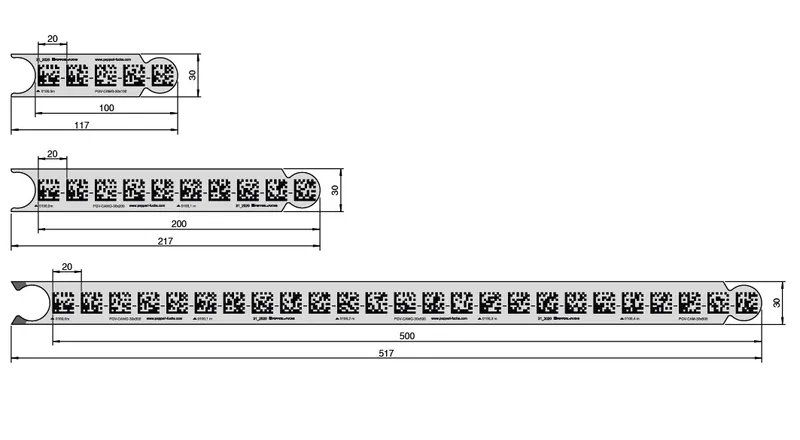

| Nominal segment length | 100 mm200 mm500 mm |
| Width | 30 mm50 mm |
Ambient conditions
| Operating temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 1 mm |
| Material | Aluminum |
| Mounting type | adhesive screwing |
| Mass | 83 g / m |
| Manufacturing tolerance | ± 1 mm/m |
| Storage | Maximum 2 years under normal storage conditions. |
