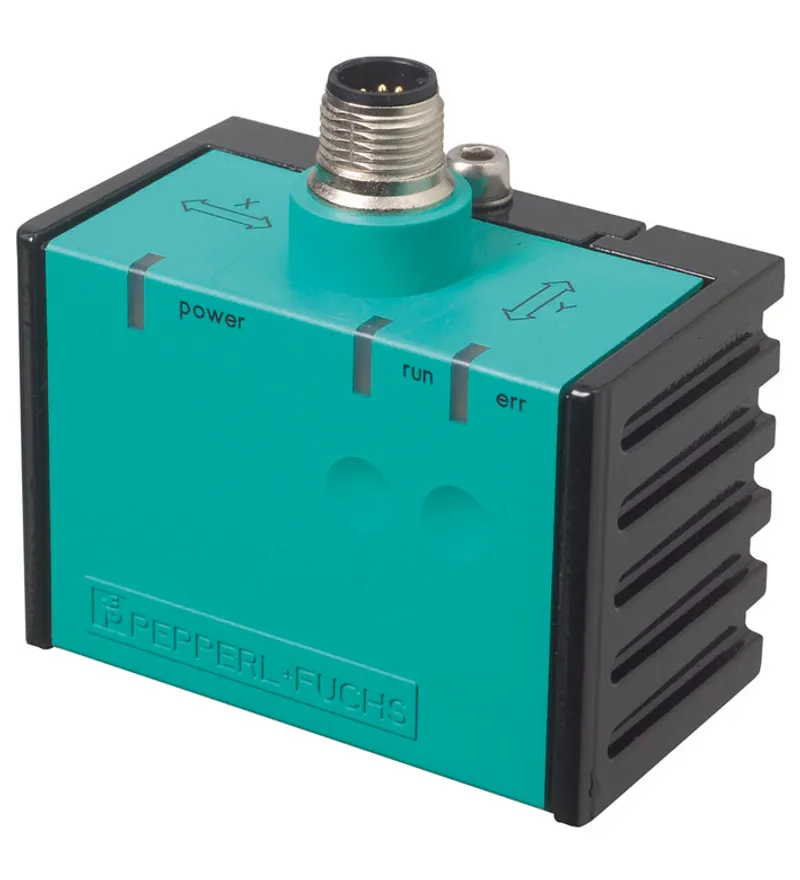

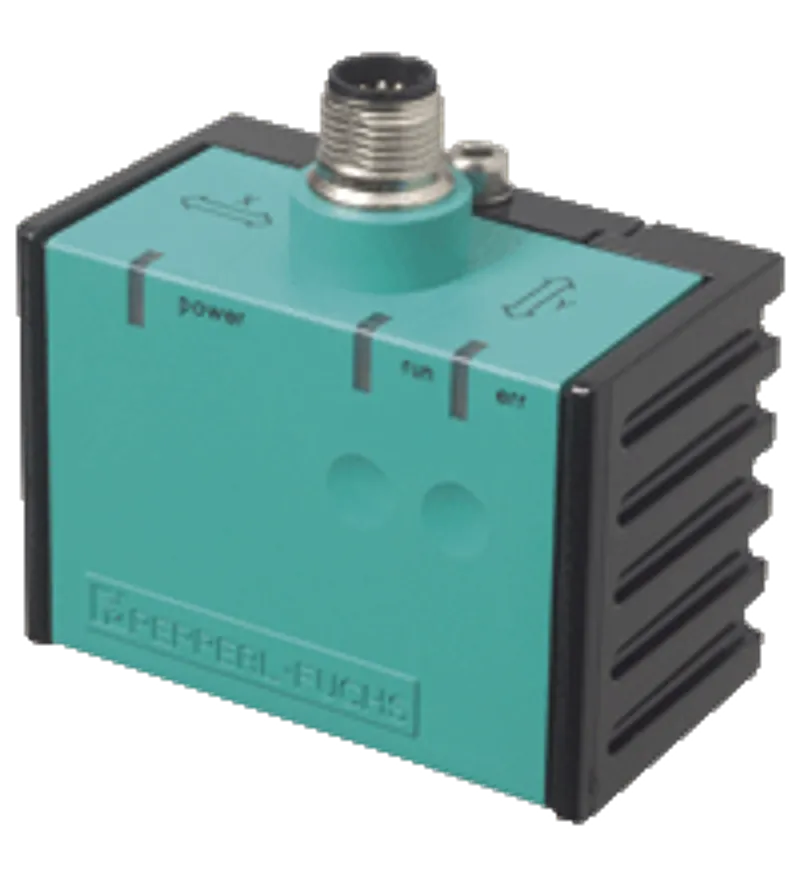

Pepperl Fuchs INY030D-F99-B16-V15
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Static Inclination Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can INY030D-F99-B16-V15 be shipped?
INY030D-F99-B16-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up INY030D-F99-B16-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for INY030D-F99-B16-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for INY030D-F99-B16-V15, subject to availability and destination.
Inclination sensor. E1-Type approval, High shock resistance, Extended temperature range <br>-40 ... +85 °C, CANopen interface, Measuring range -15° ... +15°, Increased noise immunity 100 V/m. Type: Inclination sensor, 2-axis. Measuring range: -15 ... 15 °. Absolute accuracy: ≤ ± 0.2 °. Response delay: ≤ 25 ms. Resolution: ≤ 0.01 °. Repeat accuracy: ≤ ± 0.02 °. Temperature influence: ≤ 0.004 °/K. MTTFd: 300 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED, green. Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 50 mA. Time delay before availability: ≤ 2.5 s. Interface type: CANopen. Device profile: CiA410, Ver. 1.2. Data output code: binary code. Node ID: 1 ... 127 , programmable. Transfer rate: 10 ... 1000 kBit/s , programmable. Termination: external. Cycle time: ≥ 20 ms. Standard conformity: . Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Shock and impact resistance: 100 g according to DIN EN 60068-2-27. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed, Class 2 Power Source. E1 Type approval: 10R-04. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: 5-pin, M12 x 1 connector. Housing material: PA. Degree of protection: IP68 / IP69K. Mass: 240 g. Dimensions: . Height37 mmWidth45 mmLength65 mm: . Height: 37 mm. Width: 45 mm. Length: 65 mm. Node ID: 1. Transfer rate: 250 kBit/s
Specifications
General specifications
| Type | Inclination sensor, 2-axis |
| Measuring range | -15 ... 15 ° |
| Absolute accuracy | ≤ ± 0.2 ° |
| Response delay | ≤ 25 ms |
| Resolution | ≤ 0.01 ° |
| Repeat accuracy | ≤ ± 0.02 ° |
| Temperature influence | ≤ 0.004 °/K |
Functional safety related parameters
| MTTFd | 300 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED, green |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | ≤ 50 mA I0 |
| Time delay before availability | ≤ 2.5 s tv |
Interface
| Interface type | CANopen |
| Device profile | CiA410, Ver. 1.2 |
| Data output code | binary code |
| Node ID | 1 ... 127 , programmable |
| Transfer rate | 10 ... 1000 kBit/s , programmable |
| Termination | external |
| Cycle time | ≥ 20 ms |
Compliance with standards and directives
| Standard conformity | |
| Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 | Shock and impact resistance |
| Shock and impact resistance | 100 g according to DIN EN 60068-2-27 |
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| E1 Type approval | 10R-04 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | 5-pin, M12 x 1 connector |
| Housing material | PA |
| Degree of protection | IP68 / IP69K |
| Mass | 240 g |
| Dimensions | |
| Height37 mmWidth45 mmLength65 mm | Height |
| Height | 37 mm |
| Width | 45 mm |
| Length | 65 mm |
Factory settings
| Node ID | 1 |
| Transfer rate | 250 kBit/s |
