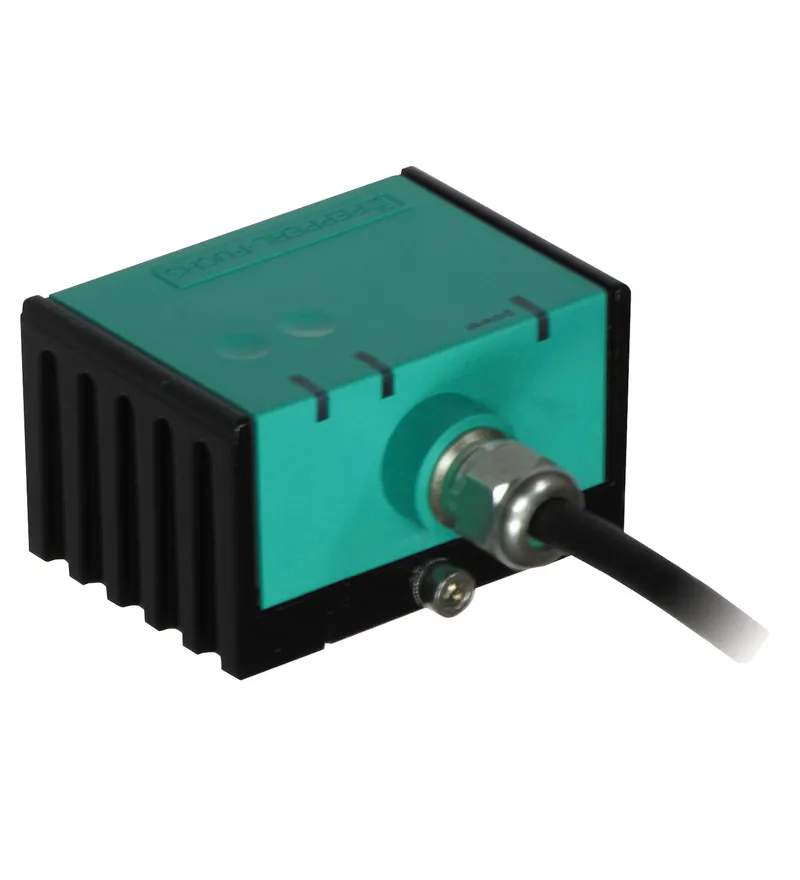

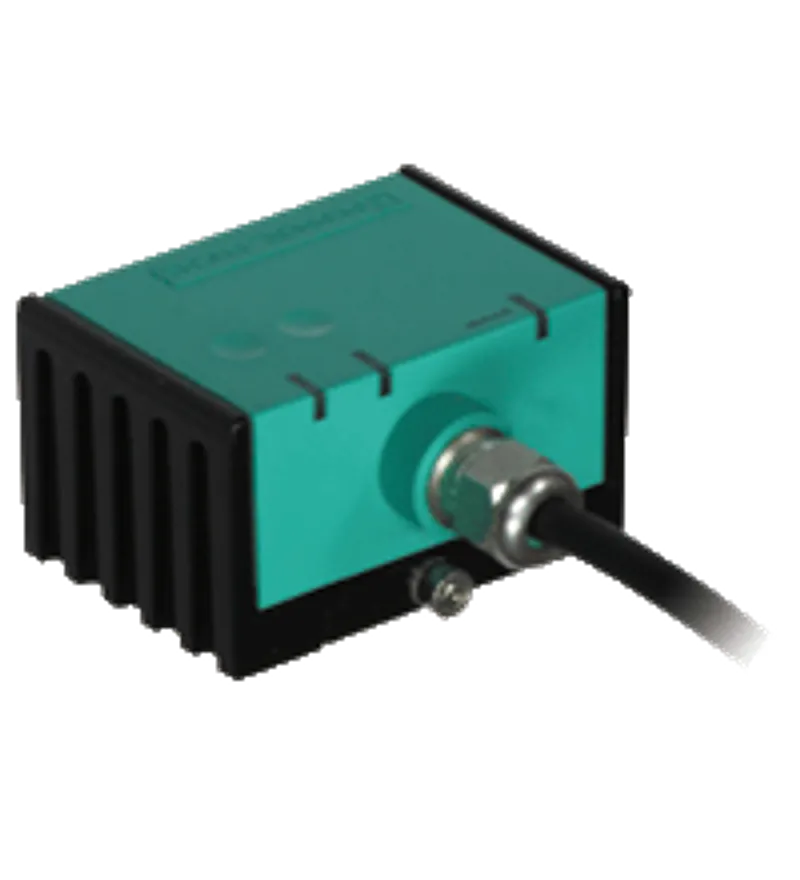

Pepperl Fuchs INY030D-F99-2U-5M
Inclination sensor
- MPN
- INY030D-F99-2U-5M
- Category
- Static Inclination Sensors
Price and lead time confirmed within 1 business day
Discontinued by Pepperl Fuchs — we can still source the original INY030D-F99-2U-5M (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs INY030D-F99-2U-5M?
E1-Type approval
Measuring range -15° ... +15°
Fixed evaluation limits
High shock resistance
Increased noise immunity 100 V/m
Analog output 0 ... 10 V
E1-Type approval, Measuring range -15° ... +15°, Fixed evaluation limits , High shock resistance, Increased noise immunity 100 V/m, Analog output 0 ... 10 V
Pepperl+Fuchs has archived the INY030D-F99-2U-5M: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 239184 |
| Type | Inclination sensor, 2-axis |
| Measuring range | -15 ... 15 ° |
| Absolute accuracy | ≤ ± 0.2 ° |
| Response delay | ≤ 25 ms |
| Resolution | ≤ 0.01 ° |
| Repeat accuracy | ≤ ± 0.02 ° |
| Temperature influence | ≤ 0.004 °/K |
| Lifecycle | Discontinued — archived by Pepperl+Fuchs |
Functional safety related parameters
| MTTFd | 390 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED, green |
| Teach-in indicator | LED, yellow |
Electrical specifications
| Operating voltage | 18 ... 30 V DC UB |
| No-load supply current | ≤ 25 mA I0 |
| Time delay before availability | ≤ 200 ms tv |

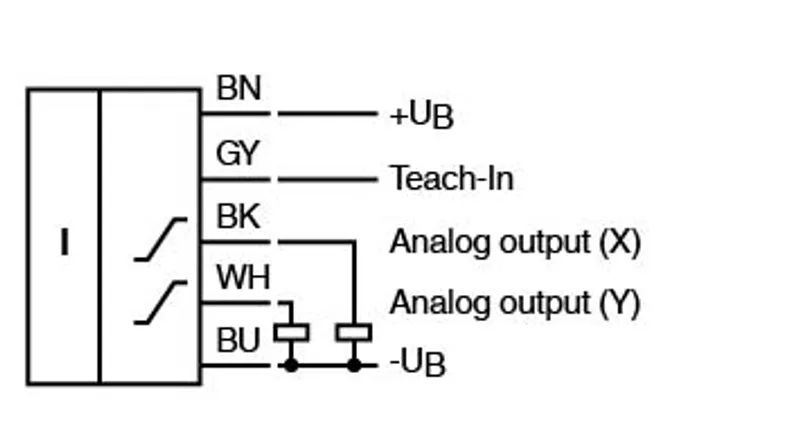

Analog output
| Output type | 2 voltage outputs 0 ... 10 V (one output for each axis) |
| Load resistor | ≥ 1 kΩ |
Compliance with standards and directives
| Standard conformity: Shock and impact resistance | 100 g according to DIN EN 60068-2-27 |
| Standard conformity: Standards | EN IEC 60947-5-2 EN 60947-5-7 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| E1 Type approval | 10R-06 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | 5 m, PUR cable 5 x 0.5 mm2 |
| Housing material | PA |
| Degree of protection | IP68 / IP69K |
| Mass | 240 g |
| Dimensions: Height | 37 mm |
| Dimensions: Width | 45 mm |
| Dimensions: Length | 65 mm |
Factory settings
| Analog output (X) | -15 ° ... 15 ° |
| Analog output (Y) | -15 ° ... 15 ° |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
INY030D-F99-2U-5M: frequently asked questions
Can I still buy the INY030D-F99-2U-5M now that it is discontinued?
Yes. Pepperl Fuchs has discontinued the INY030D-F99-2U-5M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can INY030D-F99-2U-5M be shipped?
INY030D-F99-2U-5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up INY030D-F99-2U-5M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for INY030D-F99-2U-5M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for INY030D-F99-2U-5M, subject to availability and destination.
