Static Inclination Sensors Parts
Compare Static Inclination Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Absolute accuracy | Resolution | Repeat accuracy | MTTFd |
|---|---|---|---|---|---|

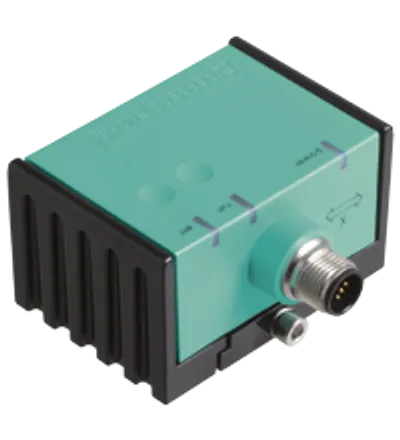

| INX360D-F99-B16-V15 | 212422 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |

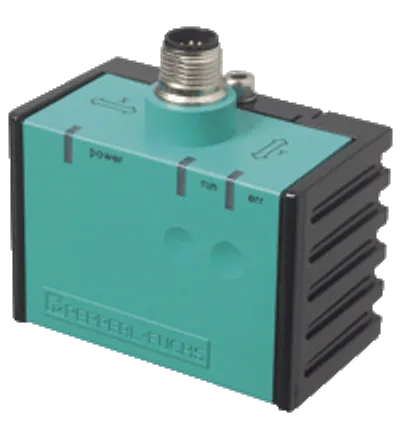

| INY030D-F99-B16-V15 | 230436 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 300 a |

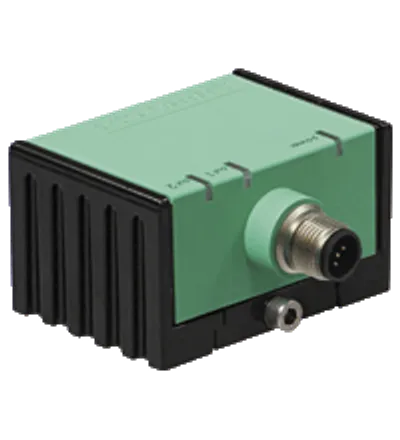

| INY060D-F99-2I2E2-V17 | 241157 | ≤ ± 0.2 ° | ≤ 0.02 ° | ≤ ± 0.04 ° | 304 a |

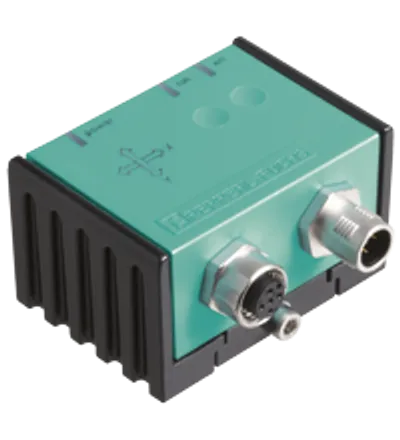

| INY030D-F99-B20-V15 | 241680 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 650 a |

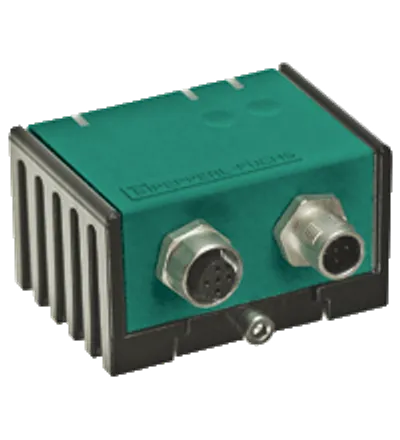

| INX360D-F99-B20-V15 | 241681 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 650 a |
| INY360D-F99-B20-V15 | 241682 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 650 a |

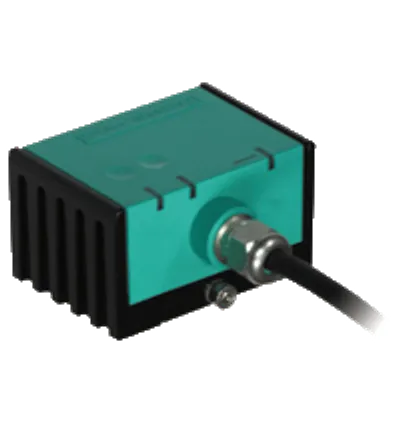

| INY030D-F99-2U-5M | 239184 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 390 a |
| INY030D-F99-2U-V15 | 239183 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 390 a |
| INY170D-F99-B20-0,6M-6DTM04 | 287724 | ≤ ± 0.5 ° [-60°...+60°] | ≤ 0.1 ° | ≤ ± 0.1 ° | 650 a |
| INY120D-F99-B20-V15 | 255236 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 650 a |

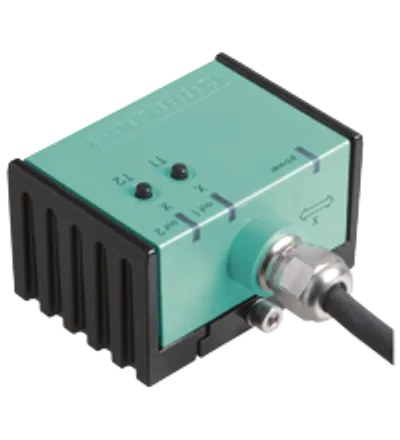

| INX360D-F99-I2E2-8,5M | 263178 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |
| INY340D-F99-2I-V15-Y310917 | 310917 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |

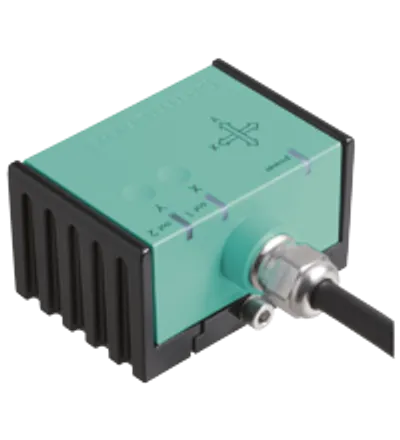

| INY030D-F99-2I2E2-25M | 279886 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 304 a |
| INX360D-F99-I2E2-7M | 209308 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |
| INX360D-F99-U2E2-5M | 206774 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 390 a |

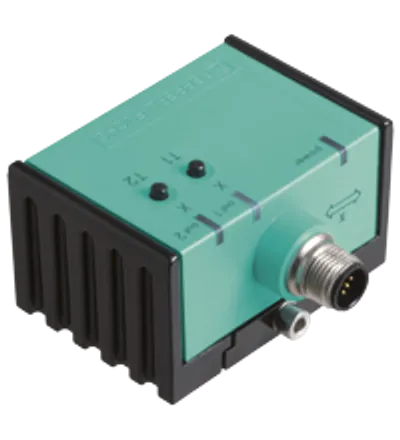

| INX360D-F99-U2E2-V15 | 206773 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 390 a |

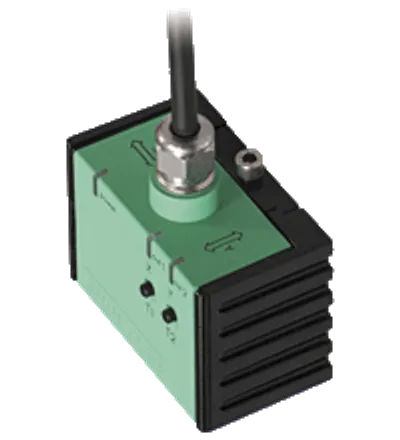

| INY360D-F99-2U2E2-5M | 206772 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 390 a |

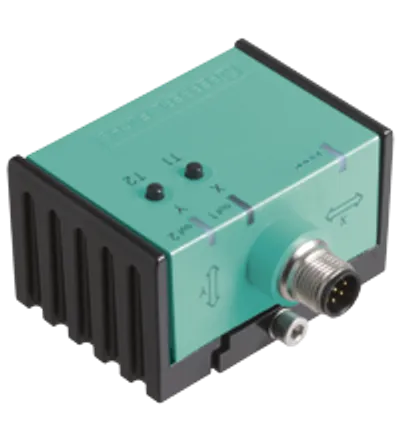

| INY360D-F99-2U2E2-V17 | 206771 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 390 a |

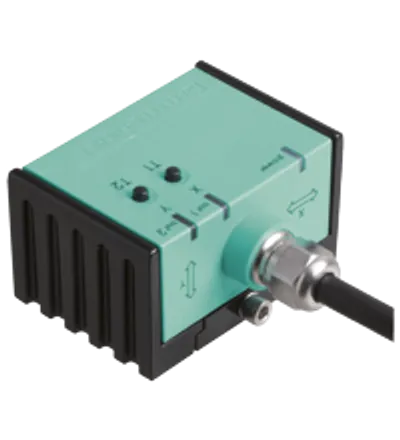

| INY360D-F99-2I2E2-5M | 201502 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |
| INY360D-F99-2I2E2-V17 | 201501 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |
| INY030D-F99-2I2E2-5M | 222357 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 304 a |
| INY030D-F99-2I2E2-V17 | 222356 | ≤ ± 0.2 ° | ≤ 0.01 ° | ≤ ± 0.02 ° | 304 a |

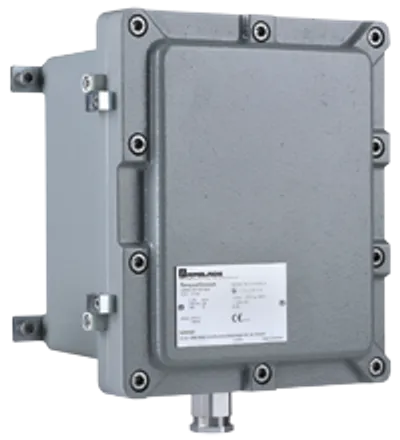

| INX360D-F99-I2E2-V15-Ex | 70112393 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |
| INY360D-F99-B16-V15 | 212421 | ≤ ± 0.5 ° | ≤ 0.1 ° | ≤ ± 0.1 ° | 300 a |
Common to all listed parts
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operation indicator | LED, green |
| Standard conformity: Shock and impact resistance | 100 g according to DIN EN 60068-2-27 |
