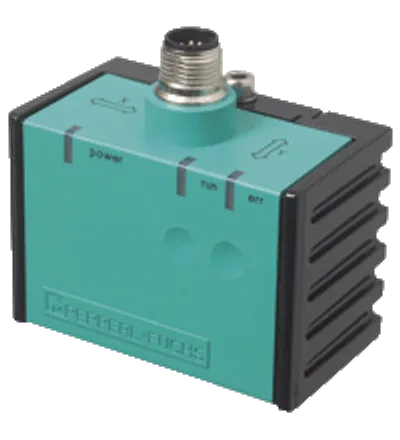

Pepperl Fuchs INY030D-F99-2I2E2-5M
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Static Inclination Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can INY030D-F99-2I2E2-5M be shipped?
INY030D-F99-2I2E2-5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up INY030D-F99-2I2E2-5M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for INY030D-F99-2I2E2-5M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for INY030D-F99-2I2E2-5M, subject to availability and destination.
Inclination sensor. E1-Type approval, Measuring range -15° ... +15°, Analog output 4 mA ... 20 mA, Fixed evaluation limits , High shock resistance, Increased noise immunity 100 V/m. Type: Inclination sensor, 2-axis. Measuring range: -15 ... 15 °. Absolute accuracy: ≤ ± 0.2 °. Response delay: ≤ 25 ms. Resolution: ≤ 0.01 °. Repeat accuracy: ≤ ± 0.02 °. Temperature influence: ≤ 0.004 °/K. MTTFd: 304 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED, green. Switching state: 2 yellow LEDs: Switching status (each output). Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 25 mA. Time delay before availability: ≤ 200 ms. Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected. Operating current: ≤ 100 mA. Voltage drop: ≤ 3 V. Output type: 2 current outputs 4 ... 20 mA (one output for each axis). Load resistor: 0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V. Standard conformity: . Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Shock and impact resistance: 100 g according to DIN EN 60068-2-27. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed, Class 2 Power Source. E1 Type approval: 10R-04. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: 5 m, PUR cable 7 x 0.5 mm2. Housing material: PA. Degree of protection: IP68 / IP69K. Mass: 240 g. Dimensions: . Height37 mmWidth45 mmLength65 mm: . Height: 37 mm. Width: 45 mm. Length: 65 mm. Analog output (X): -15 ° ... 15 °. Analog output (Y): -15 ° ... 15 °. Switching output (X): -15 ° ... 15 °. Switching output (Y): -15 ° ... 15 °
Specifications
General specifications
| Type | Inclination sensor, 2-axis |
| Measuring range | -15 ... 15 ° |
| Absolute accuracy | ≤ ± 0.2 ° |
| Response delay | ≤ 25 ms |
| Resolution | ≤ 0.01 ° |
| Repeat accuracy | ≤ ± 0.02 ° |
| Temperature influence | ≤ 0.004 °/K |
Functional safety related parameters
| MTTFd | 304 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED, green |
| Switching state | 2 yellow LEDs: Switching status (each output) |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | ≤ 25 mA I0 |
| Time delay before availability | ≤ 200 ms tv |
Switching output
| Output type | 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected |
| Operating current | ≤ 100 mA IL |
| Voltage drop | ≤ 3 V |
Analog output
| Output type | 2 current outputs 4 ... 20 mA (one output for each axis) |
| Load resistor | 0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V |
Compliance with standards and directives
| Standard conformity | |
| Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 | Shock and impact resistance |
| Shock and impact resistance | 100 g according to DIN EN 60068-2-27 |
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| E1 Type approval | 10R-04 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | 5 m, PUR cable 7 x 0.5 mm2 |
| Housing material | PA |
| Degree of protection | IP68 / IP69K |
| Mass | 240 g |
| Dimensions | |
| Height37 mmWidth45 mmLength65 mm | Height |
| Height | 37 mm |
| Width | 45 mm |
| Length | 65 mm |
Factory settings
| Analog output (X) | -15 ° ... 15 ° |
| Analog output (Y) | -15 ° ... 15 ° |
| Switching output (X) | -15 ° ... 15 ° |
| Switching output (Y) | -15 ° ... 15 ° |
