Pepperl Fuchs INY030D-F99-2U-V15
Inclination sensor
- MPN
- INY030D-F99-2U-V15
- Category
- Static Inclination Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs INY030D-F99-2U-V15?
E1-Type approval
Measuring range -15° ... +15°
Analog output 0 ... 10 V
Fixed evaluation limits
High shock resistance
Increased noise immunity 100 V/m
E1-Type approval, Measuring range -15° ... +15°, Analog output 0 ... 10 V, Fixed evaluation limits , High shock resistance, Increased noise immunity 100 V/m
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 239183 |
| Type | Inclination sensor, 2-axis |
| Measuring range | -15 ... 15 ° |
| Absolute accuracy | ≤ ± 0.2 ° |
| Response delay | ≤ 25 ms |
| Resolution | ≤ 0.01 ° |
| Repeat accuracy | ≤ ± 0.02 ° |
| Temperature influence | ≤ 0.004 °/K |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 390 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED, green |
| Teach-in indicator | LED, yellow |
Electrical specifications
| Operating voltage | 18 ... 30 V DC UB |
| No-load supply current | ≤ 25 mA I0 |
| Time delay before availability | ≤ 200 ms tv |
Analog output
| Output type | 2 voltage outputs 0 ... 10 V (one output for each axis) |
| Load resistor | ≥ 1 kΩ |
Compliance with standards and directives
| Standard conformity: Shock and impact resistance | 100 g according to DIN EN 60068-2-27 |
| Standard conformity: Standards | EN IEC 60947-5-2 EN 60947-5-7 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| E1 Type approval | 10R-06 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications

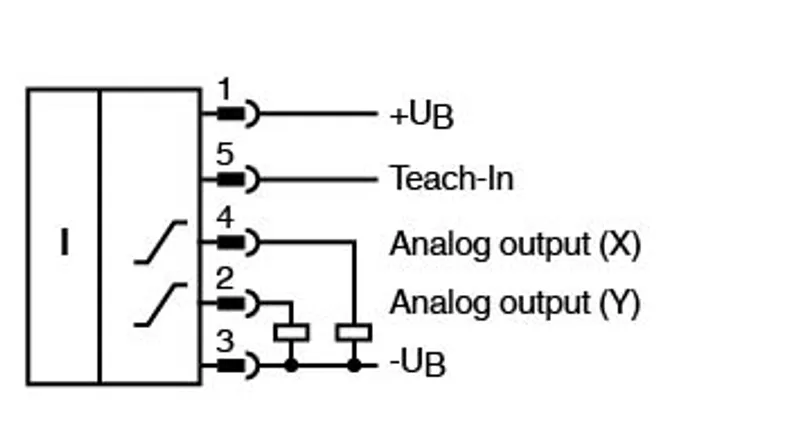

| Connection type | 5-pin, M12 x 1 connector |
| Housing material | PA |
| Degree of protection | IP68 / IP69K |
| Mass | 240 g |
| Dimensions: Height | 37 mm |
| Dimensions: Width | 45 mm |
| Dimensions: Length | 65 mm |
Factory settings
| Analog output (X) | -15 ° ... 15 ° |
| Analog output (Y) | -15 ° ... 15 ° |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
INY030D-F99-2U-V15: frequently asked questions
When can INY030D-F99-2U-V15 be shipped?
INY030D-F99-2U-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up INY030D-F99-2U-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for INY030D-F99-2U-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for INY030D-F99-2U-V15, subject to availability and destination.
