Pepperl Fuchs 6000-ACC-514485
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Type X) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 6000-ACC-514485 be shipped?
6000-ACC-514485 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6000-ACC-514485 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6000-ACC-514485 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6000-ACC-514485, subject to availability and destination.

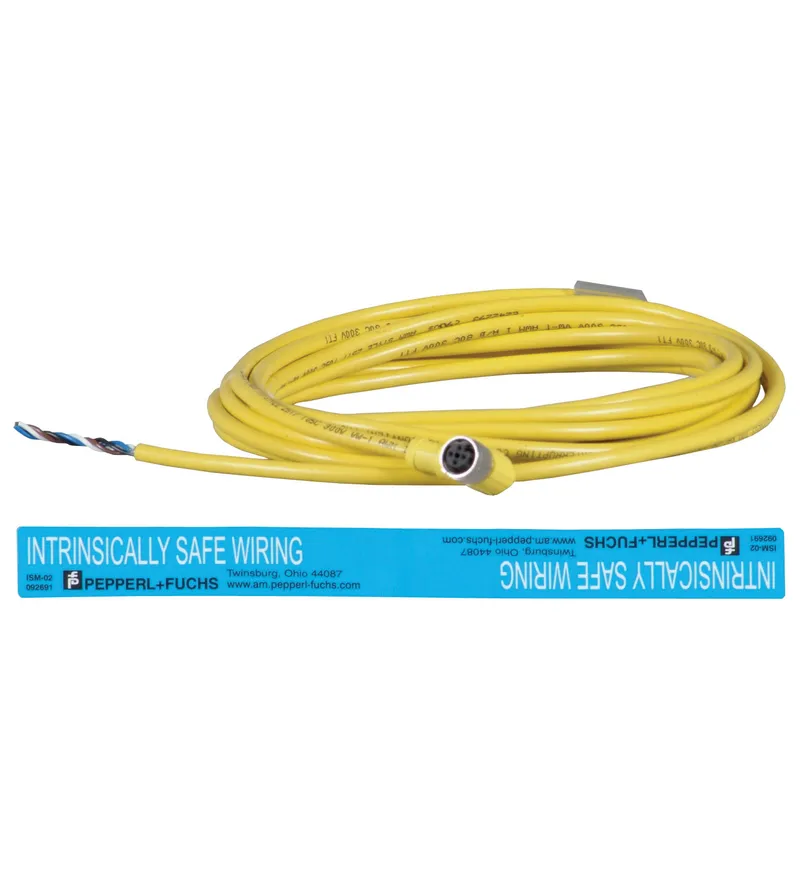

I.S. cordset and label for the 6000 series purge system. I.S. cordset and label for the 6000 series purge system. Number of pins: 4. Connection 1: socket. Construction type 1: right angle. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 300 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Ambient temperature: -25 ... 105 °C (-13 ... 221 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP69K. Material: . ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutZinc die-casting, nickel-platedCore insolationPVC: . Contacts: CuSn. Contact surface: Ni/Au. Body: TPU , yellow. Cable: PVC. Slotted nut: Zinc die-casting, nickel-plated. Core insolation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 5.9 mmBending radius10 x cable diameterColoryellowCores4 x 0.34 mm2LengthL5 m: . Sheath diameter: ∅ 5.9 mm. Bending radius: 10 x cable diameter. Color: yellow. Cores: 4 x 0.34 mm2. Length: 5 m. Flammability: . Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL: . Contact carrier: 94 V-2. Housing: 94 V-2. Cable: VW-1 flame rating from UL. Supplementary information: Kit contains: 5 m, shielded M12 cable I.S. wire identification tags
Specifications
General specifications
| Number of pins | 4 |
| Connection 1 | socket |
| Construction type 1 | right angle |
| Threading 1 | M12 |
| Connection 2 | cable end |
Electrical specifications
| Operating voltage | max. 300 V DC UB |
| Test voltage | > 1500 V eff AC |
| Operating current | max. 4 A IB |
| Volume resistance | < 5 mΩ |
Ambient conditions
| Ambient temperature | -25 ... 105 °C (-13 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Pin diameter | 1 mm |
| Degree of protection | IP69K |
| Material | |
| ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutZinc die-casting, nickel-platedCore insolationPVC | Contacts |
| Contacts | CuSn |
| Contact surface | Ni/Au |
| Body | TPU , yellow |
| Cable | PVC |
| Slotted nut | Zinc die-casting, nickel-plated |
| Core insolation | PVC |
| Cable | fine-strand, flexible |
| Sheath diameter∅ 5.9 mmBending radius10 x cable diameterColoryellowCores4 x 0.34 mm2LengthL5 m | Sheath diameter |
| Sheath diameter | ∅ 5.9 mm |
| Bending radius | 10 x cable diameter |
| Color | yellow |
| Cores | 4 x 0.34 mm2 |
| Length | 5 m L |
| Flammability | |
| Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL | Contact carrier |
| Contact carrier | 94 V-2 |
| Housing | 94 V-2 |
| Cable | VW-1 flame rating from UL |
General information
| Supplementary information | Kit contains: 5 m, shielded M12 cable I.S. wire identification tags |
