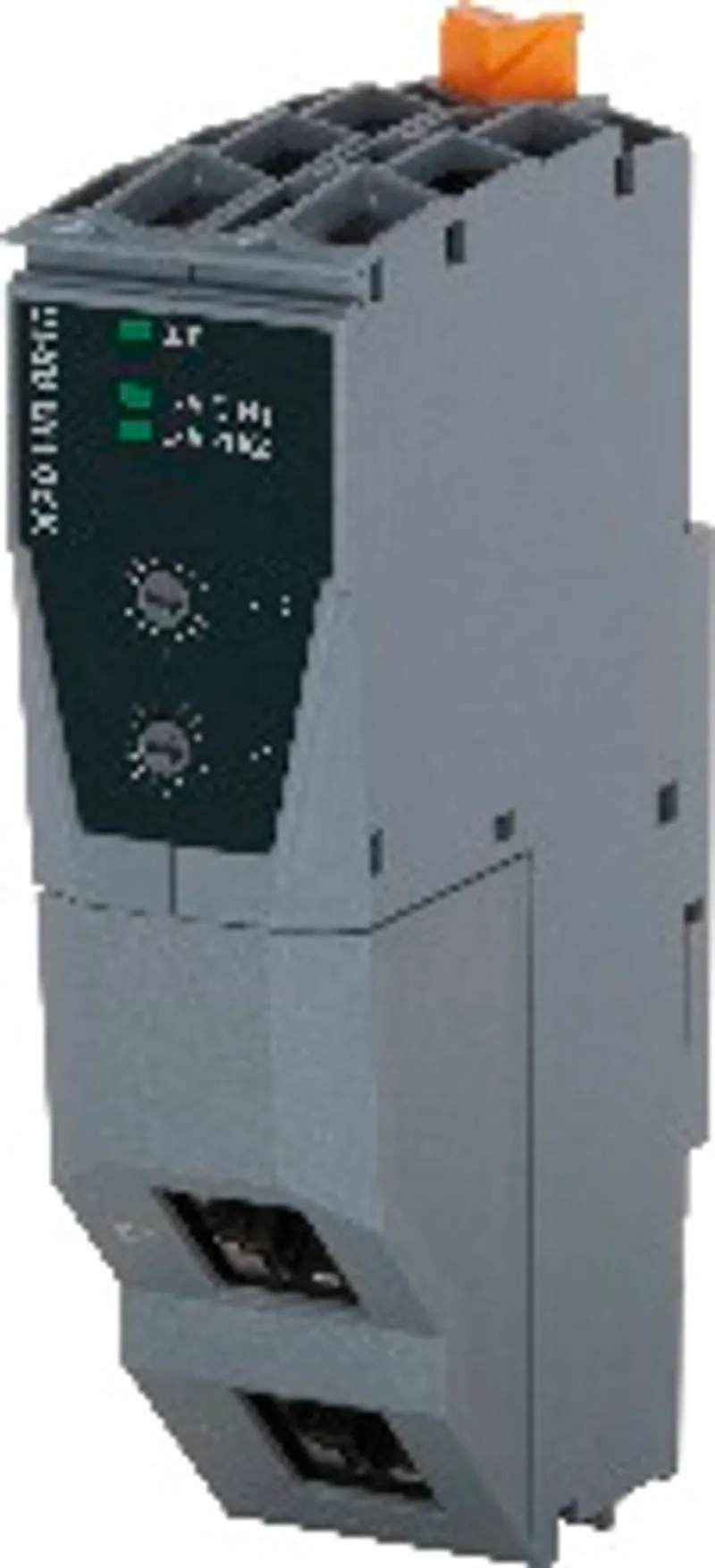

B&R X20HB8815

Gateway, POWERLINK controlled node with up to 2 slots for…

MPN: X20HB8815
Category: X20 hub system

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20HB8815?

POWERLINK

Up to 2 slots for hub expansion modules

3x / 5x POWERLINK hub

The POWERLINK TCP/IP gateway enables the exchange of all types of application data (HMI, diagnostics, parameter data, etc. ) between a POWERLINK V2 network and a TCP/IP network. It functions like a layer 2 switch, with the exception that cyclic POWERLINK packets are not routed to the ETH port.

With respect to the functionality of layer 2 switches, it should be mentioned that the gateway uses the store-and-forward principle. Gateway functionality doesn't need to be configured separately.

When the gateway receives a frame, it saves the MAC address of the sender and the corresponding interface in the source address table (SAT). If the destination address is found in the SAT, the gateway routes the frame to the corresponding interface. Frames with a broadcast or multicast address are always routed to all interfaces.

When IP packets are received at the "ETH" port that are larger than the MTU configured for POWERLINK, they are fragmented, if permitted.

"ETH" port: Interface for TCP/IP network

"PLK" port: Interface for POWERLINK network

I/O modules cannot be operated with the X20HB8815.

POWERLINK V1 is not supported.

Specifications

Short description

Gateway

POWERLINK controlled node with up to 2 slots for hub expansion modules

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
Status indicators	Module status, bus function
Power consumption	2 W

Interfaces

Transfer rate – POWERLINK	100 Mbit/s
Transfer rate – TCP/IP	10/100 Mbit/s
Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Transfer – Physical layer	10BASE-T/100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	Yes
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Type	POWERLINK gateway
Execution	2x shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Hub propagation delay	0.96 to 1 µs

Electrical properties

Electrical isolation

Power supply isolated from Ethernet (ETH1) and POWERLINK (PLK2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch – X20BB80	37.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB8x. Up to 2 X20cHB2880 or X20cHB2881 hub expansion modules and 1 X20cPS8002 power supply module are also always required for the gateway.)
Pitch – X20BB81	62.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB8x. Up to 2 X20cHB2880 or X20cHB2881 hub expansion modules and 1 X20cPS8002 power supply module are also always required for the gateway.)
Pitch – X20BB82	87.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB8x. Up to 2 X20cHB2880 or X20cHB2881 hub expansion modules and 1 X20cPS8002 power supply module are also always required for the gateway.)
Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS8002 separately. ; Order 1x bus base X20BB8x separately.

Accessories

Required accessories (order separately)

X20PS8002	System modules for X20 hub systems — Supply for X20 stand-alone devices; No electrical isolation between the I/O supply and the device power supply The supply module is used to…
X20BB80	System modules for bus controllers — Bus base The following modules are used on the bus module: Base module (BC, HB, etc.); Supply module The left and right end cover plates ar…
X20BB82	System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module: Base module (BC, HB, e…
X20BB81	System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module: Base module (BC, HB,…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Optional accessories (4)

X20HB2881	System modules for X20 hub systems — Hub expansion module; 2x Hub 100 BASE-FX The POWERLINK bus controller X20BC8083 and the stand-alone hubs X20HB8880 and X20HB8815 are equipp…
X20HB2880	System modules for X20 hub systems — Hub expansion module; 2x hub 100 BASE-TX POWERLINK bus controller X20BC8083, standalone hub X20HB8880 and the POWERLINK TCP/IP gateway X20H…
X20HB1882	System modules for X20 hub systems — Hub expansion module; 1-port hub, 100BASE-FX; Single-mode glass fiber cables; Range up to 50 km; Hot-swappable The POWERLINK bus controller…
X20HB1881	System modules for X20 hub systems — Hub expansion module; 1x hub 100 BASE-FX; Fiber optic multimode cable; Range up to 2 km; Hot-swap-capable POWERLINK bus controllers X20BC80…
